2-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
2-2-3. CABINET R SECTION-2
Follow the disassembly in the numerical order given.
1 Hinge Block (1-1 to 1-2)
2 CK-191/192 Board (2-1 to 2-5)

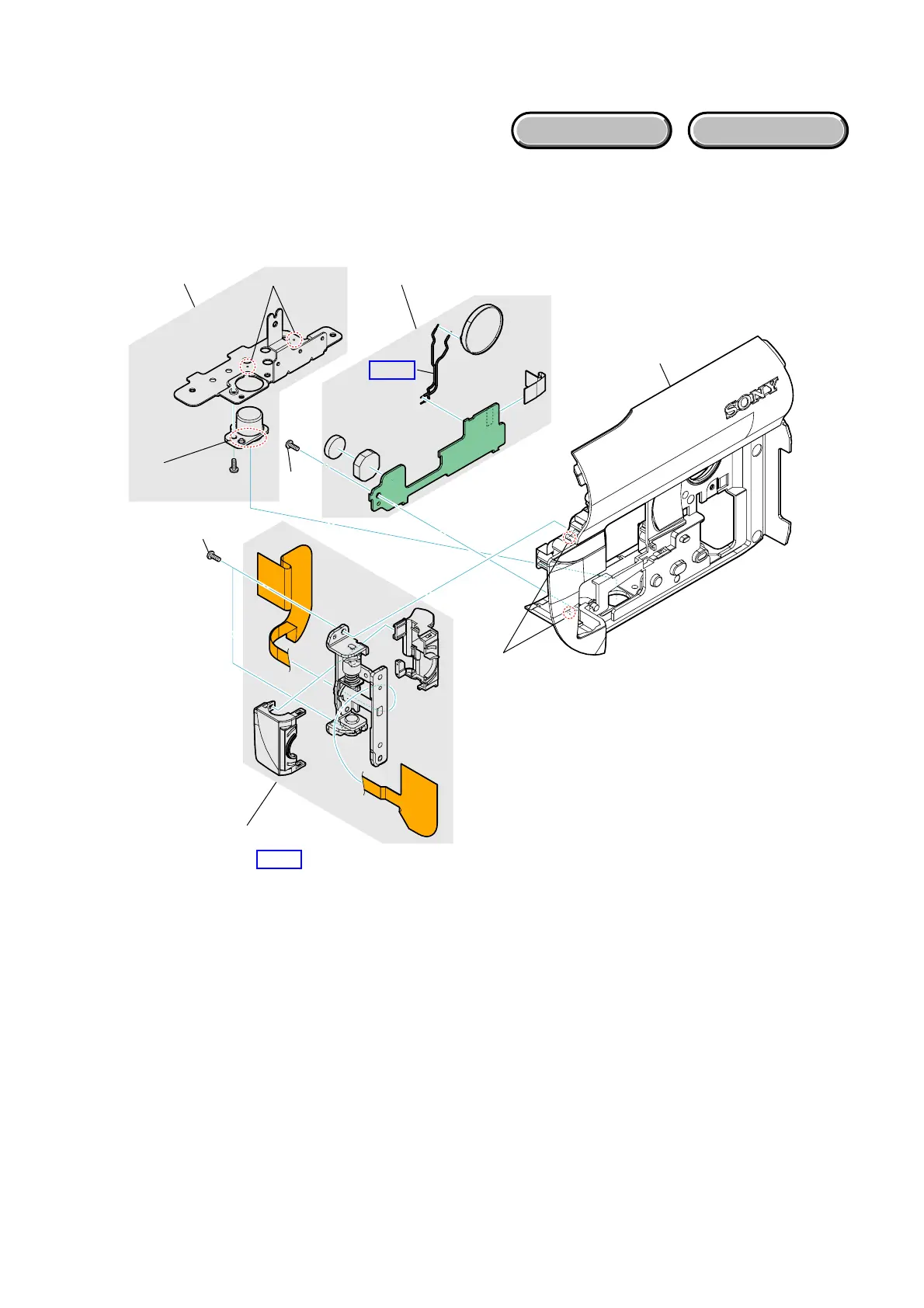

EXPLODED VIEW
HARDWARE LIST
2-1 (Boss)
2-4
(#11)
2-3
2-2
(Tripod Screw Ledge)
2CK-191/192 Board
1-1 (#11)
1-2 (Boss)
1Hinge Block
2-5
