HELP
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

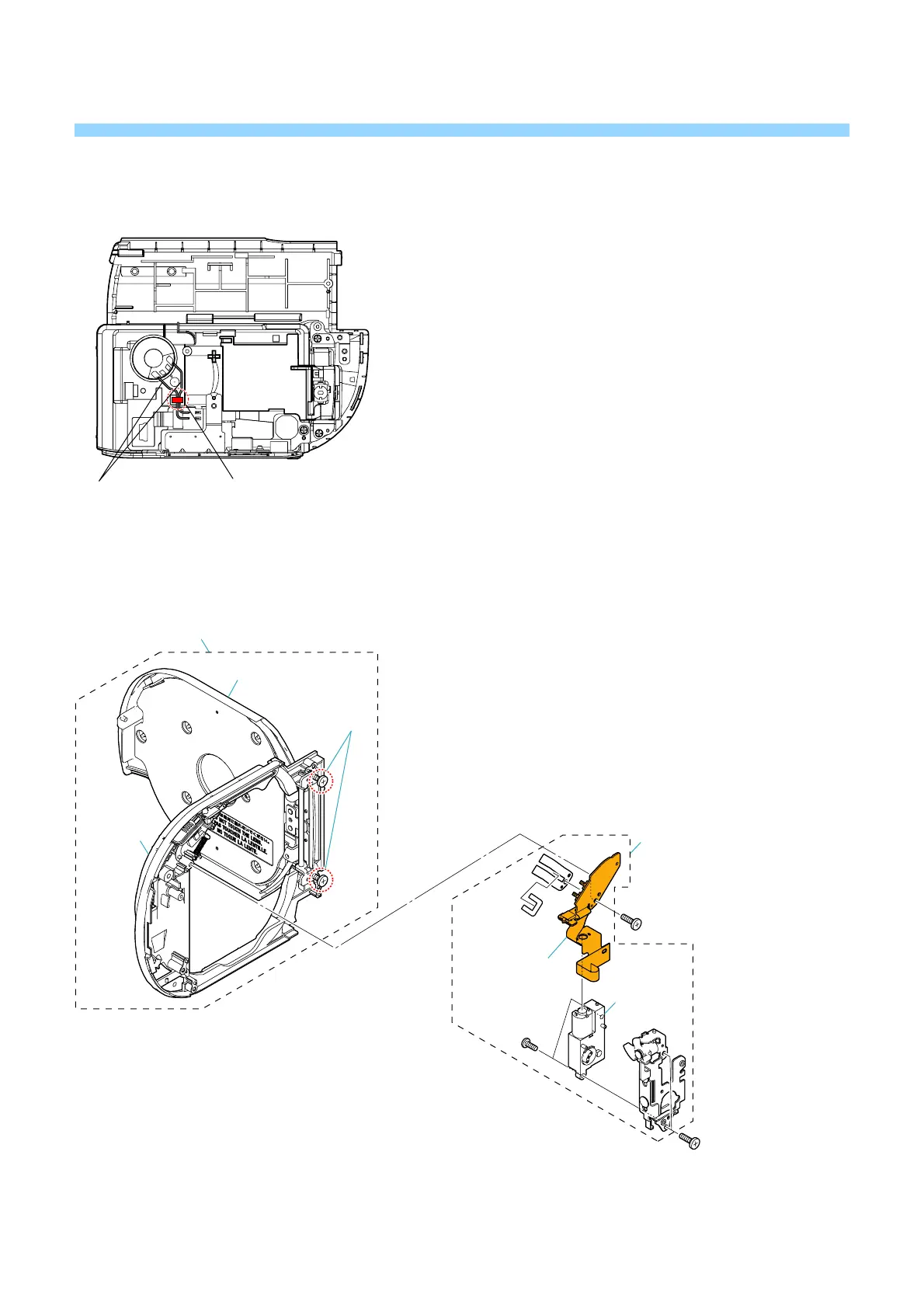

HELP 2: SPEAKER HARNESS
Speaker Harness Claw
HELP 3: PRECAUTION WHEN INSTALLING THE CABINET L ASSY FOR SERVICE
Cabinet D
block
D lid block
Cabinet L assy for service
When the eject block is installed on the cabinet L assy
for service, a discrepancy could be made between the
cabinet D block and the D lid block, and as a result,
the D lid may not to be closed.
In case of such discrepancy, loosen the screws on the
hinge to eliminate the discrepancy of the D lid block,
and then retighten the screws.
Screws
M903
Eject block
FP-569 flexible
complete board
To Next Page
