5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

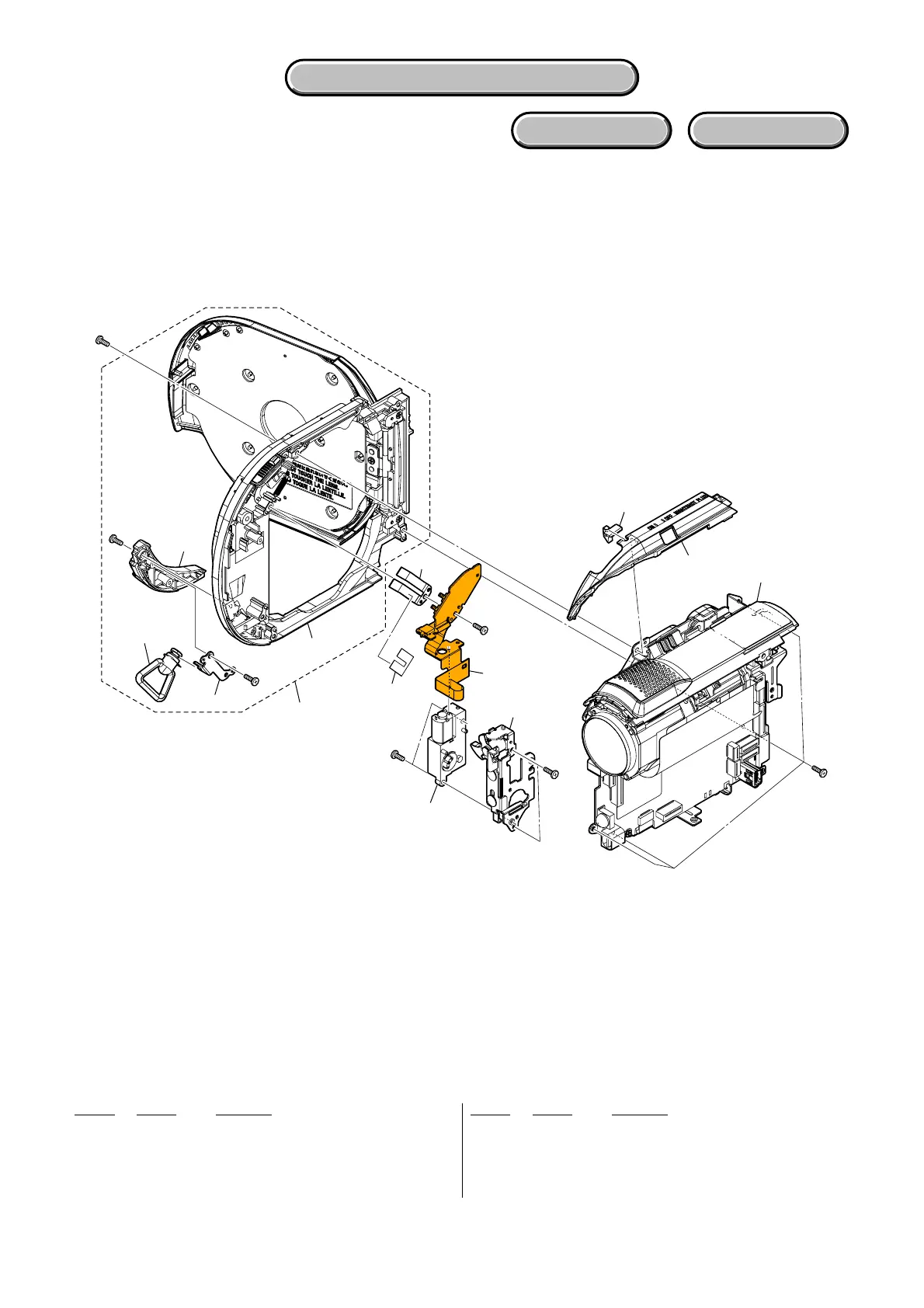

5-1-6. CABINET L SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-699-266-01 LIGHT, ACCESS GUIDE,
252 A-1519-608-A CABINET (L) ASSY (261) (SERVICE)
253 3-090-616-01 SHAFT (F), STRAP
254 A-1228-528-A FP-569 FLEXIBLE BOARD, COMPLETE
* 255 2-699-262-01 SHEET METAL, LID
256 3-281-794-01 CABINET (L (UPPER))
M903 1-787-237-11 MOTOR UNIT (GEARD MOTOR)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
252
254
255
253
#11
#11
#11
#2
ns
ns
ns
M903
ns
ns
#11
#11
#11
256
251
MD Section
(See page 5-8)
