Sony DCR-DVD110E - MD SECTION

5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST

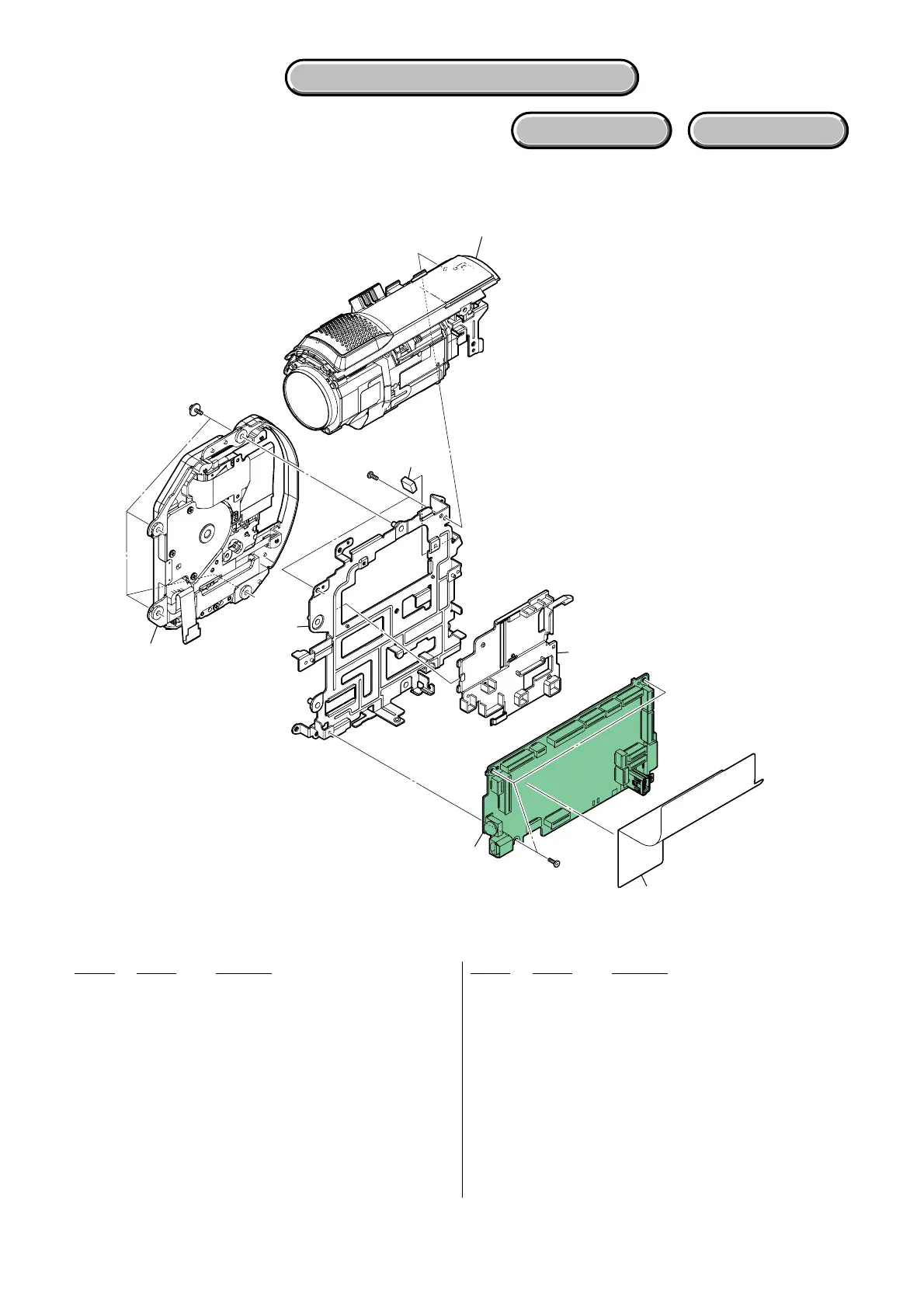

5-1-7. MD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
* 301 3-281-793-01 LABEL, REPLACEMENT CAUTION
302 A-1439-718-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD110E)
302 A-1439-719-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD115E)
302 A-1439-720-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD610/DVD610E)
302 A-1439-739-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD310E)
302 A-1439-741-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710)
302 A-1439-742-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710E)
302 A-1439-744-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD410E)
302 A-1439-745-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810)
302 A-1439-746-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810E)
* 303 3-281-792-01 GUARD, OP FLEXIBLE
304 X-2187-713-1 FRAME ASSY, MD
* 305 2-596-924-11 GASKET (MD)
0 306 A-1212-602-A SERVICE (DDX-C2000) BLOCK ASSY
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#16 2-586-337-01 SCREW, MD (Silver)
• Refer to page 5-1 for mark 0.
VC-520
301
302
303
#3
#3
Lens Section
(DVD110E/DVD115E/DVD610/DVD610E: See page 5-9)
(DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E: See page 5-10
)
#16
304
305
306
DISASSEMBLY
