5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST

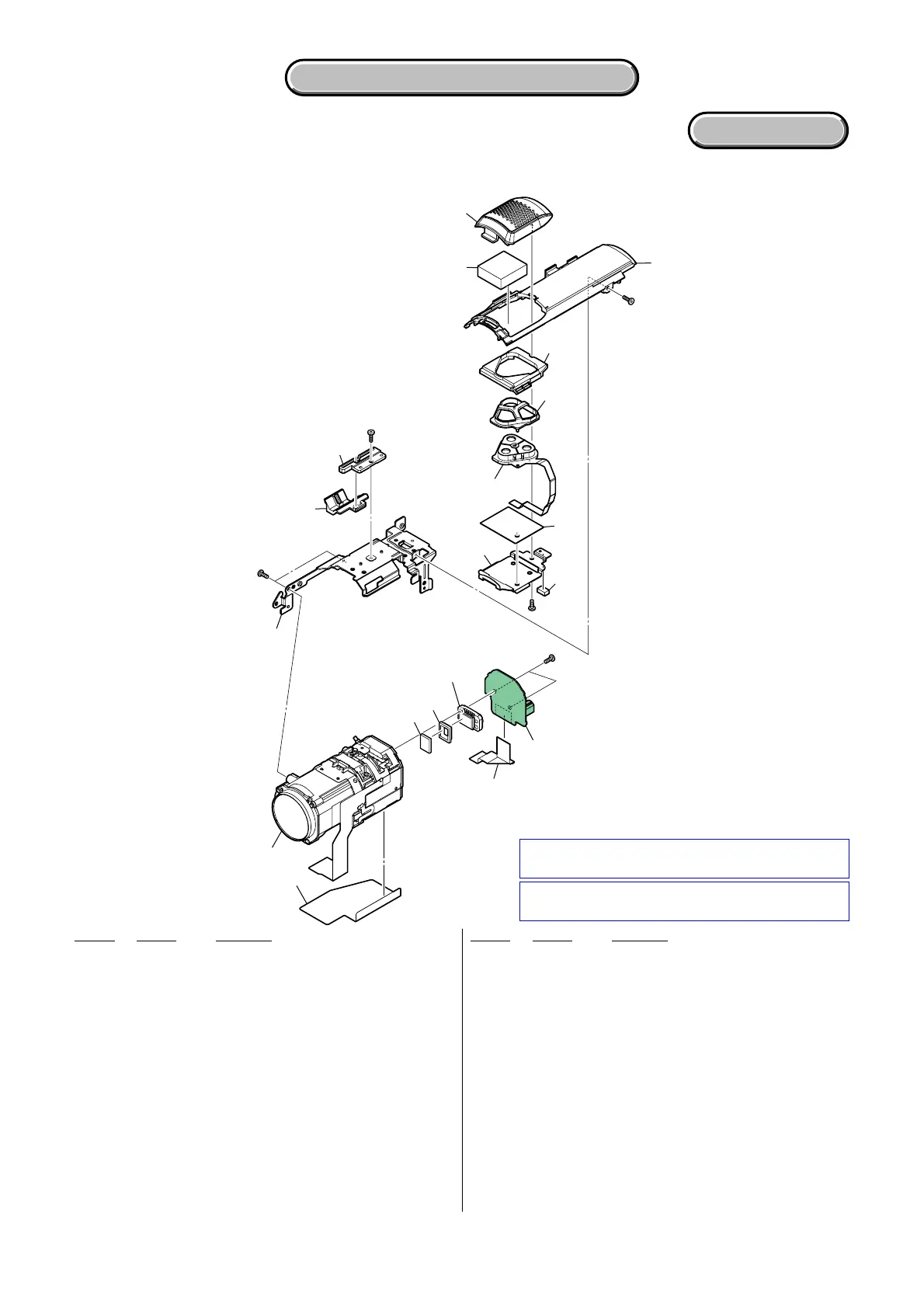

5-1-8. LENS SECTION (DVD110E/DVD115E/DVD610/DVD610E)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
* 351 3-281-814-01 SHEET, LENS TERMINAL PROTECTION
352 8-848-839-01 DEVICE, LENS LSV-1171A
353 1-788-706-11 OPTICAL FILTER BLOCK (OFB-08-02)
354 3-271-382-01 SEAL RUBBER 1171
355 1-834-363-11 CABLE, FLEXIBLE FLAT (FFC-133)
356 A-1439-626-A CD-731 BOARD, COMPLETE
* 357 3-281-802-01 FRAME, LENS
358 3-281-803-01 KNOB (261), NS
* 359 2-699-280-01 PLATE, NS CLICK
360 3-281-805-01 GRILLE, MICROPHONE (261)
(DVD110E/DVD610/DVD610E)
360 3-281-806-01 GRILLE, MICROPHONE (262) (DVD115E)
361 3-281-812-01 CABINET, TOP (261)
(DVD110E/DVD610/DVD610E)
361 3-281-812-11 CABINET, TOP (261) (DVD115E)
* 362 3-281-810-01 INSULATOR
* 363 3-281-808-01 HOLDER, MICROPHONE
* 364 3-281-811-01 CUSHION, MICROPHONE
* 365 2-898-042-01 GASKET (MIC)
366 3-281-807-01 SCREEN, WIND
IC7101 8-753-289-10 ICX651NKF-H (CCD IMAGER)
(DVD110E/DVD115E/DVD610E) (Note)
IC7101 8-753-288-68 ICX650NKF-H (CCD IMAGER) (DVD610) (Note)
MIC901 1-542-723-31 MICROPHONE UNIT (DVD115E)
MIC901 1-542-723-41 MICROPHONE UNIT
(DVD110E/DVD610/DVD610E)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
351
352
353
354
357
358
359
355
356
IC7101
(Note)
#12
#11
#11
MIC901
ns
#3
#3
360
366
361
362
363
364
365
Note : Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
