5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

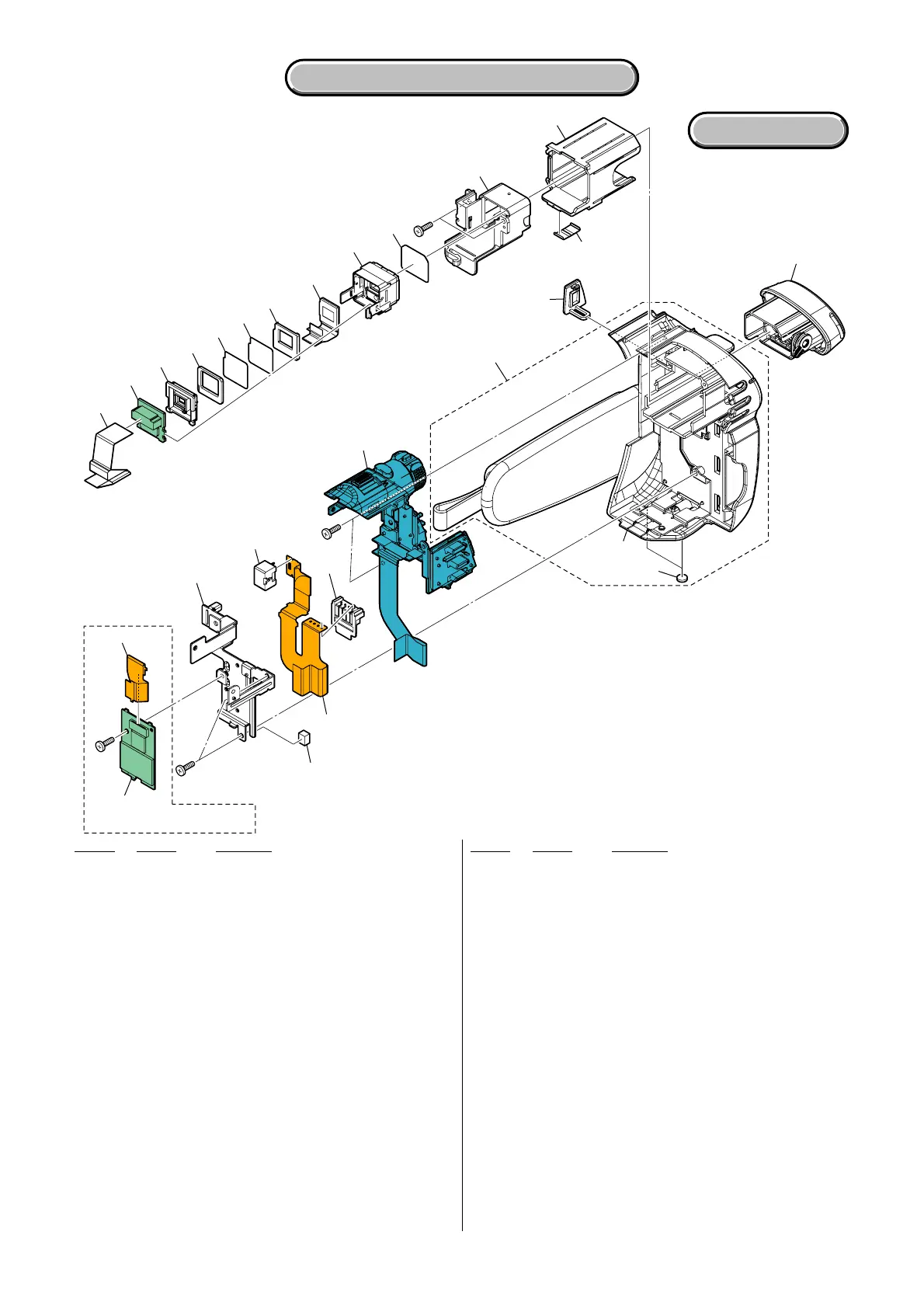

5-1-5. BT/EVF SECTION
ns: not supplied
HARDWARE LIST
• Refer to page 5-1 for mark 0.
Ref. No. Part No. Description Ref. No. Part No. Description
201 1-834-868-11 CABLE, FLEXIBLE FLAT (FFC-140)
202 A-1439-629-A BL-021 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
202 A-1439-642-A BL-022 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
* 203 2-638-820-02 GUIDE, LAMP
* 204 2-638-819-01 CUSHION, LCD
* 205 2-638-818-01 ILLUMINATOR
* 206 2-638-816-01 PLATE (TFT), DEFLECTION
* 207 2-638-815-01 SPACER, LCD
208 2-899-658-01 CAP (212), INNER
(DVD110E/DVD115E/DVD610/DVD610E)
208 2-899-659-01 CAP (215), INNER (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
209 2-899-660-01 PANEL (CF), POLARIZATION
210 3-281-818-01 CABINET, INNER
211 3-281-825-01 CABINET, VF
212 2-664-667-01 SPRING, VF SLIDE
213 X-2187-715-1 EYE CUP ASSY
214 2-699-246-01 COVER, DC (IN)
215 A-1519-607-A PANEL ASSY (261) (SERVICE), BT
216 2-589-376-01 FOOT (395), RUBBER
217 1-480-495-11 KEY BLOCK, CONTROL (PS26100)
218 1-874-948-11 FP-839 FLEXIBLE BOARD
219 1-874-950-11 FP-841 FLEXIBLE BOARD
(DVD410E/DVD810/DVD810E)
220 A-1538-642-A MDL4060S3C COMPLETE ASSY (SERVICE)
(FLASH MEMORY) (DVD410E/DVD810/DVD810E)
* 221 3-096-097-01 CUSHION (P), EMC
0 BH001 1-780-064-21 BATTERY TERMINAL BOARD
0 J001 1-815-792-11 CONNECTOR, DC-IN (7.2V) (DC IN)
LCD902 8-753-241-14 LCX076AKE-1
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
LCD902 8-753-245-09 LCX059CKK-1
(DVD110E/DVD115E/DVD610/DVD610E)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
(DVD410E/DVD810/DVD810E)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#12
#11
#11
#3
ns
ns
J001
BH001
LCD902
201
202
203
204
205
206
207
208
209
210
211
212
214
213
215
217
218
220
219
216
221
DVD410E/DVD810/DVD810E
To Next Page
