6-48
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Order Diagnostic item Message Disc
Operation
1 No Disc
Click the
[START] button of “DIAGNOSIS”.
2 No Disc
Check the movement of the pickup lens (Focus
direction/Tracking direction), and click the
[OK] button in the message window.
3 No Disc
Check the movement of the sled, and click the
[OK] button in the message window.
4 No Disc
Check the rotation of the spindle, and click the
[OK] button in the message window.
Sensors
Fig. 6-2-11
2-3-2. Diagnosing Method
2-3. DIAGNOSIS
2-3-1. Menu in Diagnosis Section

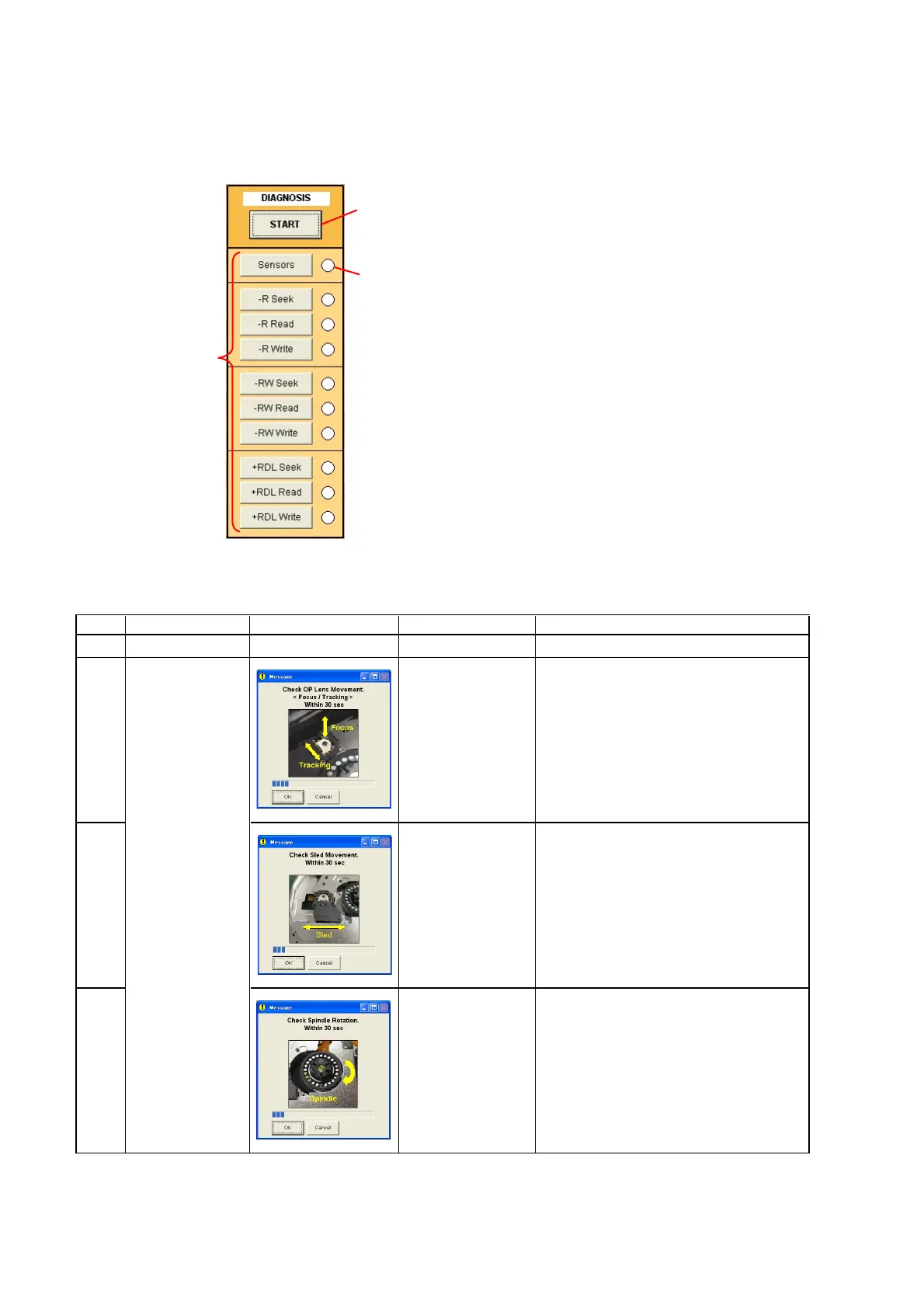

START button: All items of diagnosis buttons are executed
in the descending order.
Diagnosis button: Only the diagnostic item assigned to the
button name is executed.
Status lamp: Diagnosis status is displayed with color.
White Not diagnosed
Red blinking Diagnosis in progress
Green Diagnosis OK
Red Diagnosis NG
START button
Status lamp
Diagnosis buttons
To Next Page
