Identifying parts and
controls

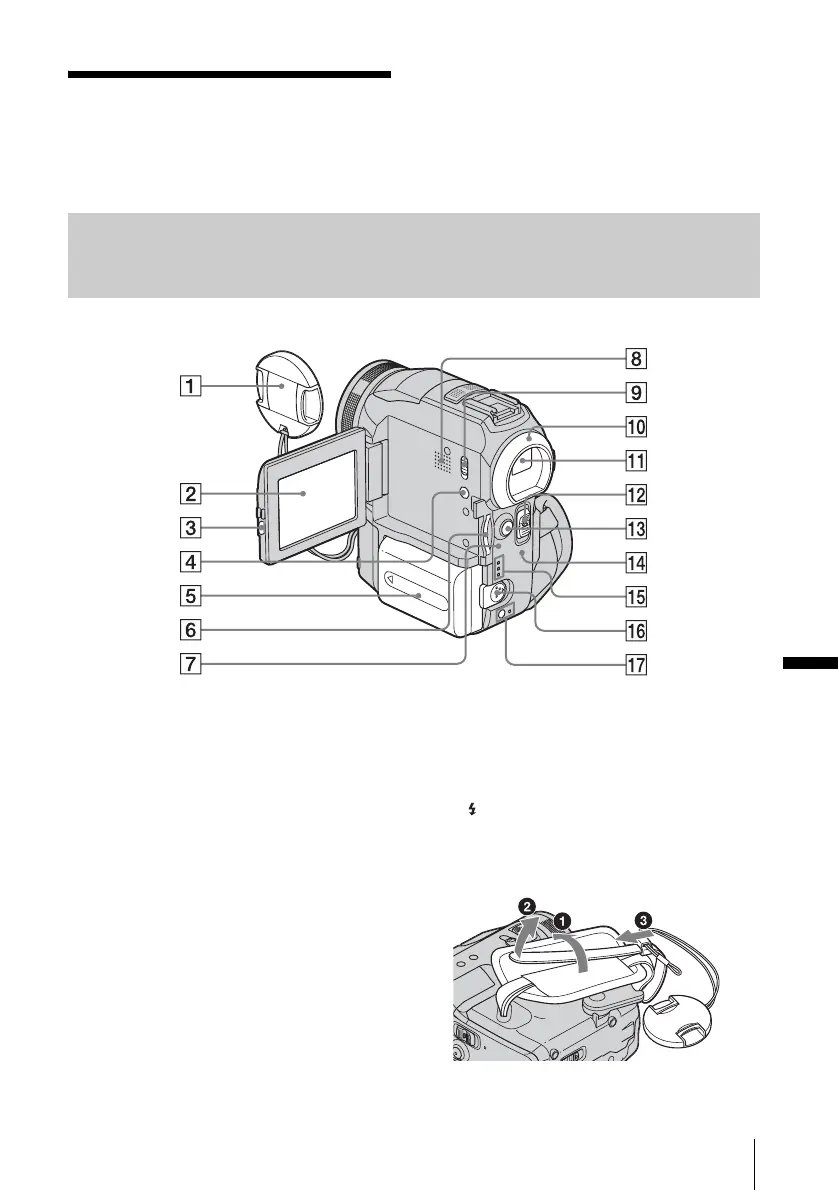

Camcorder
A Lens cap (p. 23, 28)
B LCD/Touch panel screen (p. 3, 17)
C OPEN button (p. 17)
D DISPLAY/BATT INFO button (p. 14)
E Battery pack/Battery terminal cover
(p. 13)
F “Memory Stick” slot (p. 21)
G Access lamp (p. 21, 118)
H Speaker
I LCD BACKLIGHT switch (p. 17)
J Eyecup
K Viewfinder (p. 3, 17)
L POWER switch (p. 16)
M START/STOP button (p. 23, 28)
N CHG (charge) lamp (p. 13)
O CAMERA-TAPE, CAMERA-
MEMORY, PLAY/EDIT mode lamps
(p. 16)
P Battery release lever (p. 13)
Q (flash) button/flash charge indicator
(p. 30)
To replace the lens cap
,continued
