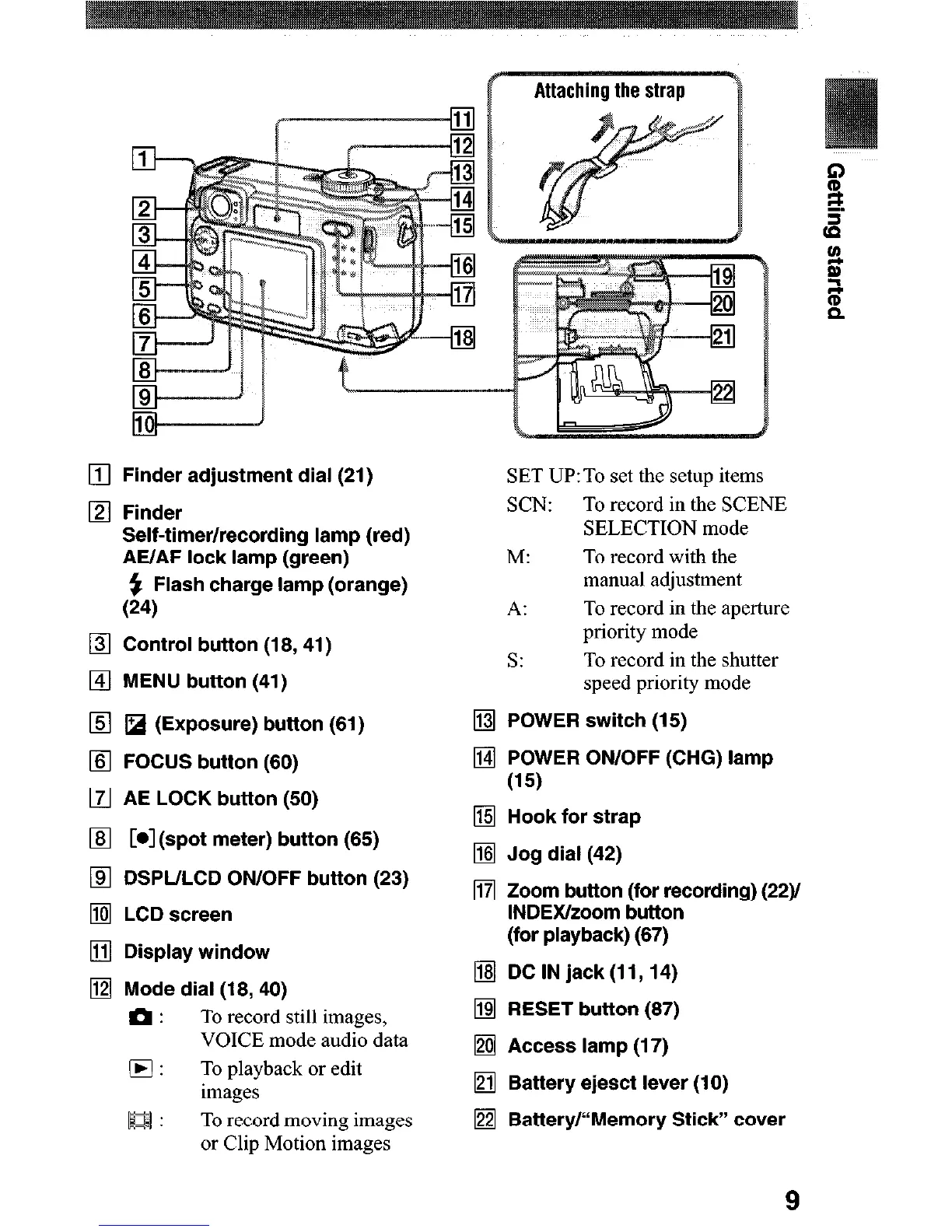

Finder adjustment dial (21)
Finder
Self-timer/recording lamp (red)
AE/AF lock lamp (green)
$ Flash charge lamp (orange)
(24)
Control button (18,41)
MENU button (41)
q (Exposure) button (61)
FOCUS button (60)
AE LOCK button (50)
[*I
(spot meter) button (65)
DSPULCD ON/OFF button (23)
LCD screen
Display window
Mode dial (18, 40)
m:
To record still images,
VOICE mode audio data
El: To playback or edit
images
M:
To record moving images
or Clip Motion images
SET UP:To set the setup items
SCN: To record in the SCENE
SELECTION mode
M:
To record with the
manual adjustment
A: To record in the aperture
priority mode
s:
To record in the shutter
speed priority mode
q POWER switch (15)
fl ;I’ER ON/OFF (CHG) lamp
q Hook for strap
q Jog dial (42)
q $m~w~o~; fgrrding) (22)/
(for playback) (87)
q DC IN jack(l1,14)
q RESET button (87)
q Access lamp (17)
q Battery ejesct lever (10)
q Battery/“Memory Stick” cover
9
