Sony DXA-WZ8D - Printed Wiring Board - FRONT AMP Board

1515
DXA-WZ8D

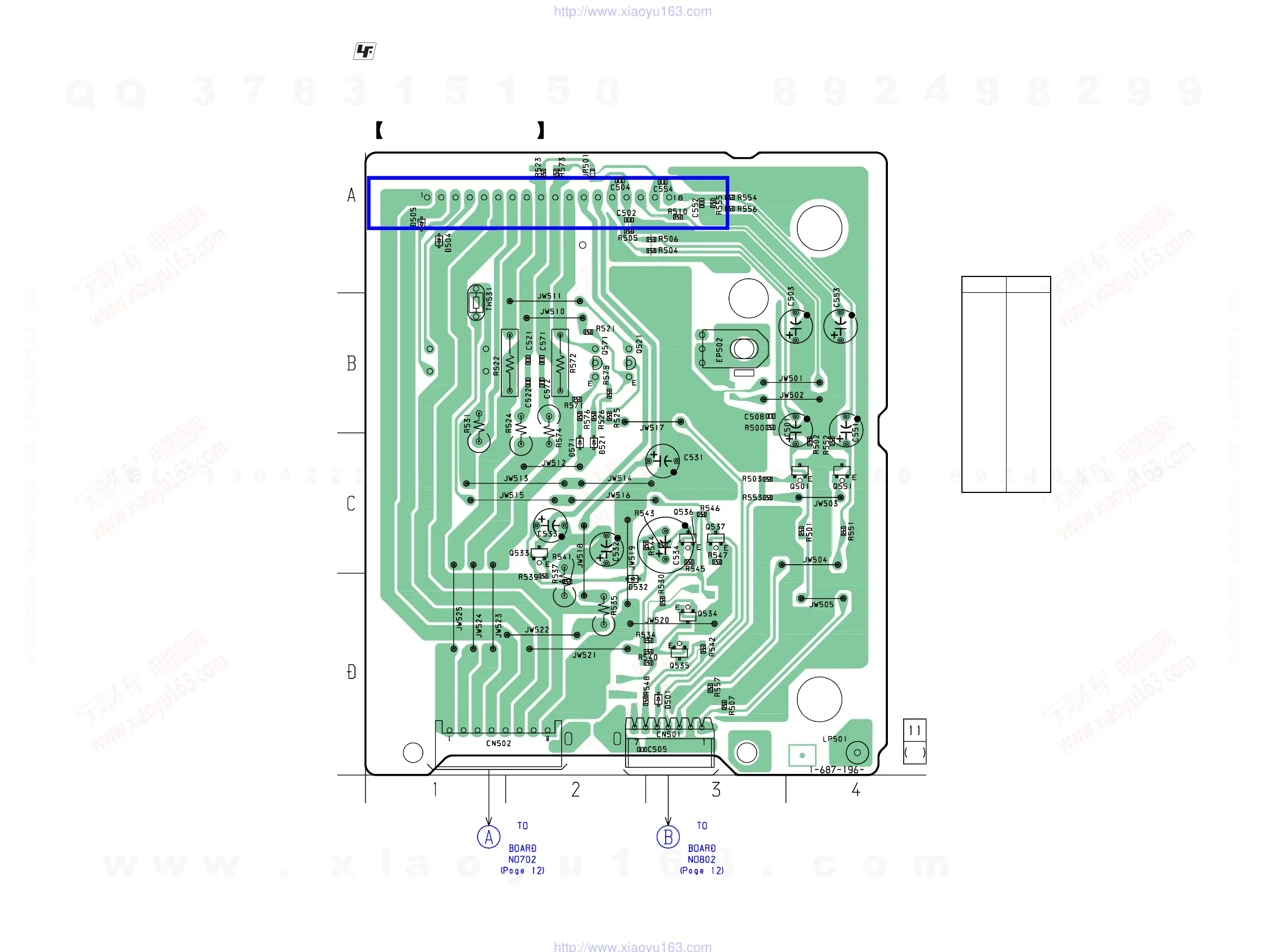

4-4. Printed Wiring Board – FRONT AMP Board –
IC501
FRONT AMP BOARD
TC MAIN TC MAIN
12
• : Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D501 D-3
D504 A-1
D505 A-1
D521 C-2
D532 D-2
D571 C-2
IC501 A-2
Q501 C-4
Q521 B-2
Q533 C-2
Q534 D-3
Q535 D-3
Q536 C-3
Q537 C-3
Q551 C-4
Q571 B-2
