SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•
Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E15 : 220-240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MY : Malaysia model
PH : Philippines model
19
DXA-WZ8D
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
RU : Russian model
SP : Singapore model
TH : Thai model

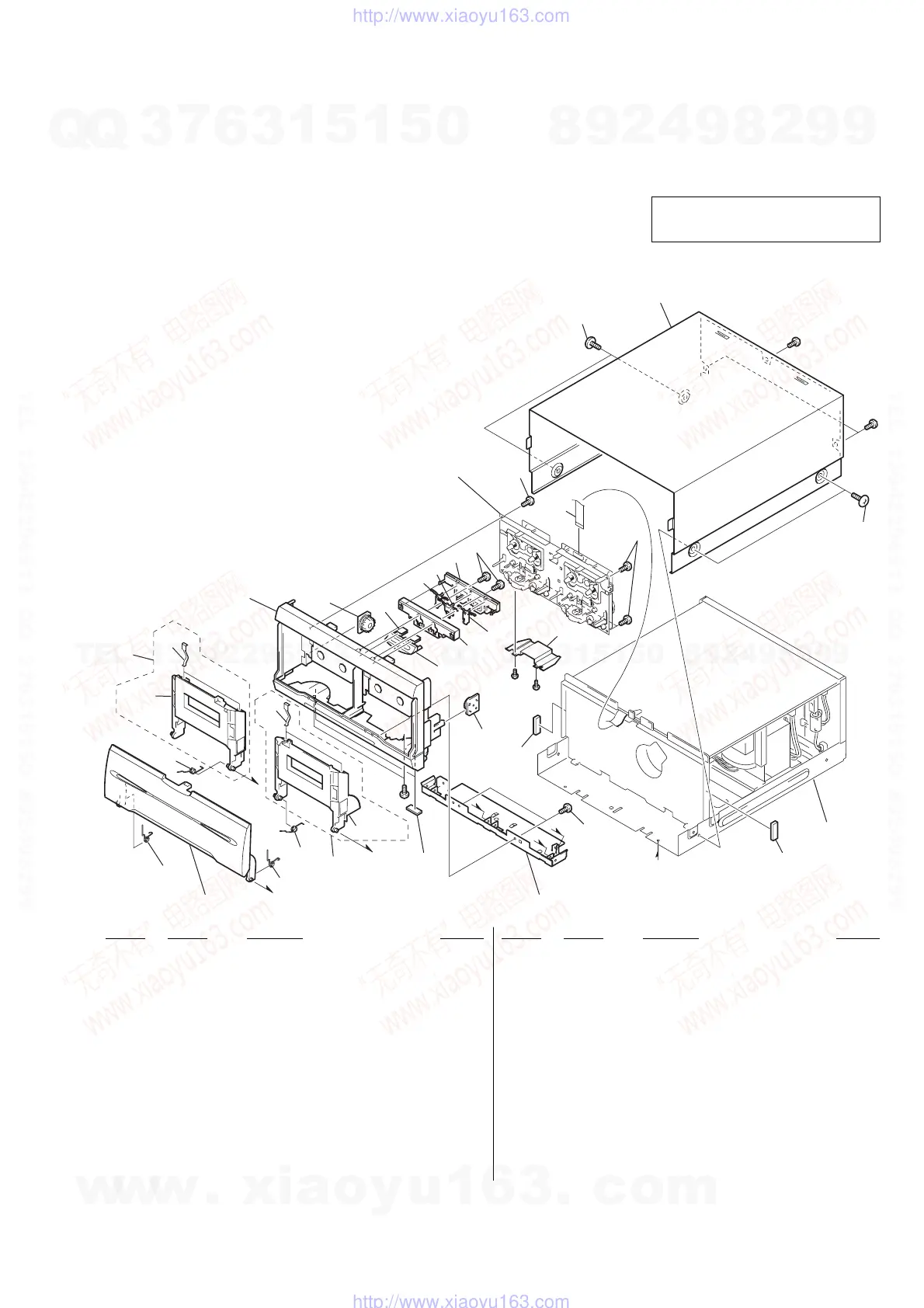

5-1. Front Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
a
a
c
c
b
b
9
22
22
10
10
23
13
13
13
23
13
11
15
16
19
20
19
12
14
17
18
21
not supplied
not
supplied
not
supplied
not
supplied
d
d
6
chassis section
1
3
4
5
7
8
2
mechanism deck section
#1
#4
#3
#1
#1
01 4-244-459-01 SPRING (LID)
2 X-4955-418-2 LID (TC) ASSY
3 4-244-977-01 SPRING (LID-R)
4 X-4955-284-1 HOLDER (A) ASSY
5 4-244-454-01 SPRING (HOLDER A)
6 1-769-985-11 WIRE (FLAT TYPE)(13CORE)
7 X-4955-285-1 HOLDER (B) ASSY
8 4-244-455-01 SPRING (HOLDER B)
9 4-244-442-01 PANEL (TC), FRONT
10 4-224-104-11 DAMPER
11 4-244-443-01 BUTTON (A)
12 4-244-444-01 BUTTON (B)
13 4-951-620-01 SCREW (2.6X8), +BVTP
14 4-244-450-01 HOLDER (LOCK)
15 4-244-448-01 LEVER (L)
16 4-244-447-01 LEVER (C)
17 4-244-449-01 LEVER (R)
18 4-244-446-01 BASE (LOCK)
19 3-363-099-11 SCREW (CASE 3 TP2)
20 4-244-441-11 CASE
21 4-245-758-01 PLATE (HEAD), SHIELD
22 4-959-229-11 DETENT, CASSETTE
23 3-378-109-12 CUSHION, SARANET
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#4 7-685-853-04 SCREW +BVTT 2X6 (S)
