20
DXA-WZ8D
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
a
a
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplie
not
supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#1
#1
not supplied
51
52
53
53
58
58
60
58
58
58
55
56
59
61
54
F105
F106
F601
F101
T302
FAN301
F102
F103
F104
51 A-4732-224-A FRONT AMP BOARD, COMPLETE (AEP, UK, RU)
51 A-4732-234-A FRONT AMP BOARD, COMPLETE
(E2, E3, E15, EA, MY, SP, PH)
51 A-4732-264-A FRONT AMP BOARD, COMPLETE (AUS)
51 A-4734-574-A FRONT AMP BOARD, COMPLETE (KR)
51 A-4734-588-A FRONT AMP BOARD, COMPLETE (TH)
52 A-4732-219-A TC MAIN BOARD, COMPLETE (AEP, UK, RU)
52 A-4732-230-A TC MAIN BOARD, COMPLETE (E2)
52 A-4732-246-A TC MAIN BOARD, COMPLETE
(E3, E15, MY, SP, PH)
52 A-4732-255-A TC MAIN BOARD, COMPLETE (EA)
52 A-4732-261-A TC MAIN BOARD, COMPLETE (AUS)
52 A-4734-571-A TC MAIN BOARD, COMPLETE (KR)
52 A-4734-583-A TC MAIN BOARD, COMPLETE (TH)
53 4-900-386-01 SCREW
54 3-703-571-11 BUSHING (S)(4516), CORD (E2, E3, E15)
* 54 3-703-244-00 BUSHING (2104), CORD
(EXCEPT E2, E3, E15)
055 1-468-737-11 POWER, SWITCHING
056 1-769-079-12 CORD, POWER (KR)
056 1-775-786-41 CORD, POWER (UK)
056 1-775-790-51 CORD, POWER (AUS)
056 1-777-071-63 CORD, POWER (AEP, RU, EA, MY, SP, PH)
056 1-824-818-11 CORD, POWER (WITH CONNECTOR)(TH)
056 1-827-226-21 CORD, POWER (E2, E3, E15)
58 3-970-608-01 SUMITITE (B3), +BV
59 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
60 A-4732-226-A SURROUND AMP BOARD, COMPLETE
(AEP, UK, RU)
60 A-4732-236-A SURROUND AMP BOARD, COMPLETE
(E2, E3, E15, EA, MY, SP, PH)
60 A-4732-266-A SURROUND AMP BOARD, COMPLETE (AUS)
60 A-4734-576-A SURROUND AMP BOARD, COMPLETE (KR)
60 A-4734-591-A SURROUND AMP BOARD, COMPLETE (TH)
61 4-225-252-01 CUSHION (FOOT)
0F101 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V
0F102 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V
0F103 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V
0F104 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V
0F105 1-533-471-11 FUSE, GLASS TUBE (DIA. 4) T5AL/250V
0F106 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) T5AL/250V
0F601 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V
(E2, E3, E15, MY, SP, PH)
0F601 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V (EA)
0T302 1-439-643-11 TRANSFORMER, POWER (EA)
0T302 1-439-644-11 TRANSFORMER, POWER
(E2, E3, E15, MY, SP, KR, TH, PH, AUS)
0T302 1-439-645-11 TRANSFORMER, POWER (AEP, UK, RU)
FAN301 1-763-488-31 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-650-79 SCREW +BVTP 3X16TYPE2 IT-3
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.

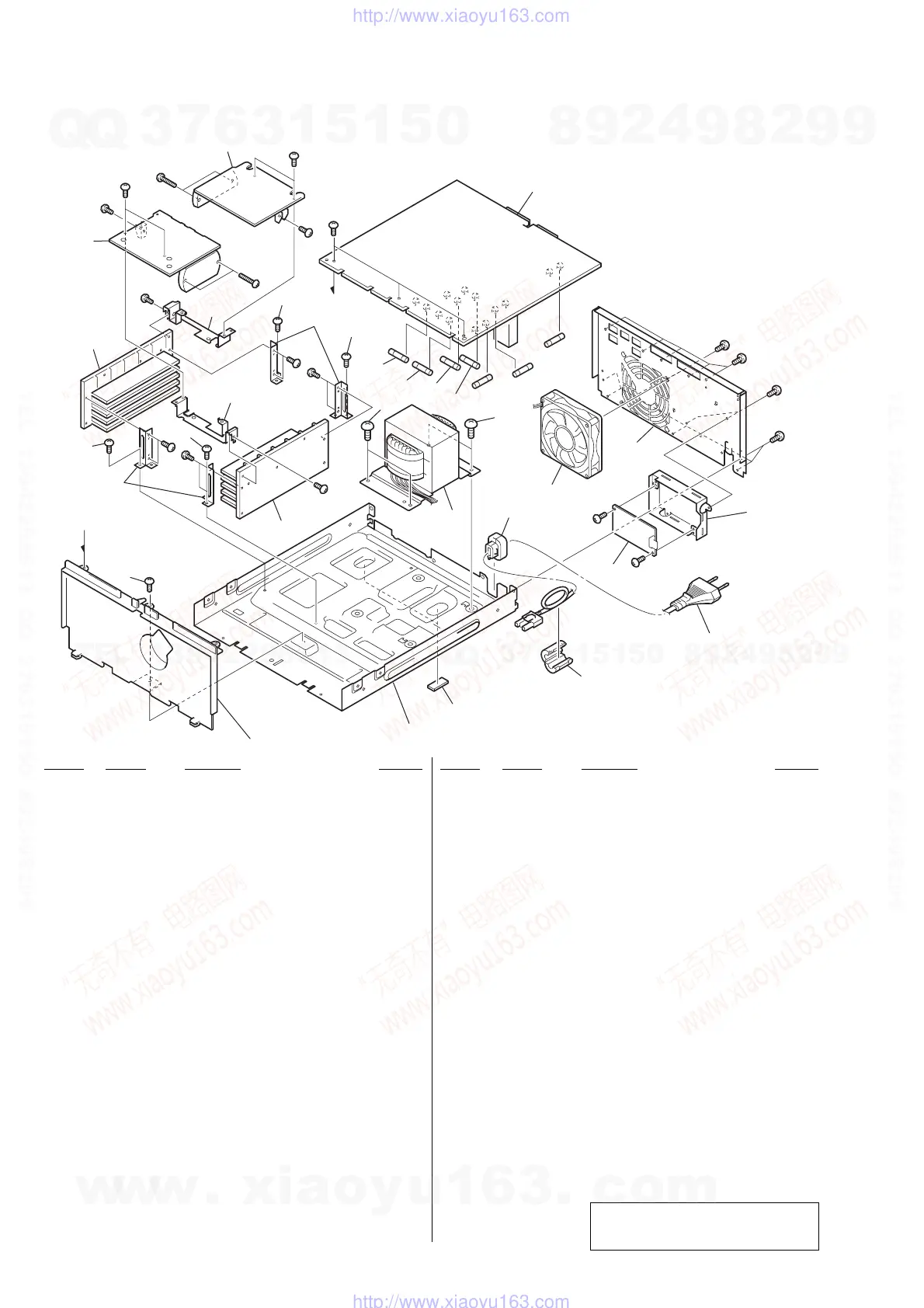

5-2. Chassis Section
