Sony DXA-WZ8D - Printed Wiring Board - SURROUND AMP Board

1717
DXA-WZ8D

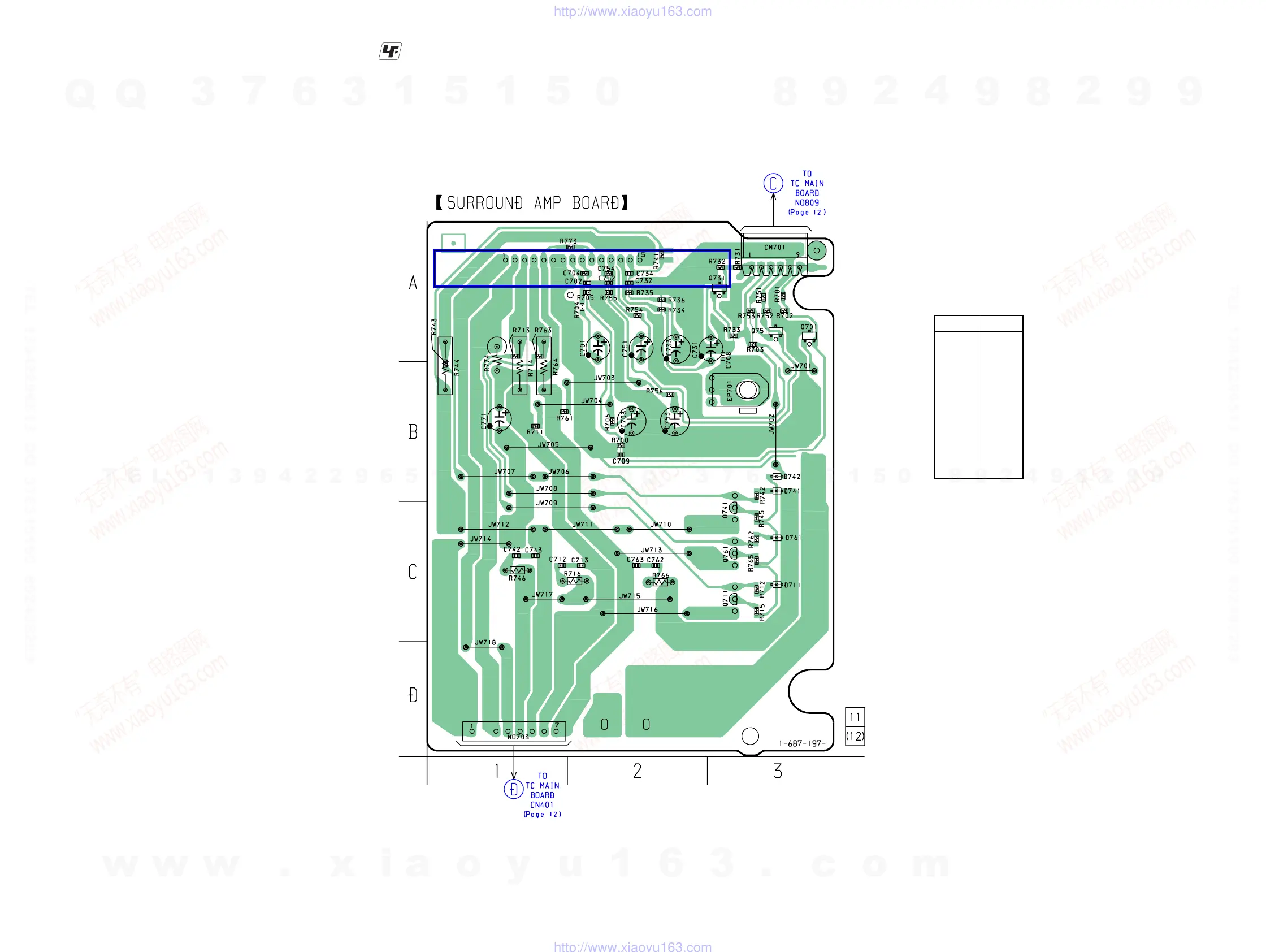

4-6. Printed Wiring Board – SURROUND AMP Board –
• : Uses unleaded solder.
IC701
• Semiconductor
Location
Ref. No. Location
D711 C-3
D741 B-3
D742 B-3
D761 C-3
IC701 A-1
Q701 A-3
Q711 C-3
Q731 A-3
Q741 C-3
Q751 A-3
Q761 C-3
