EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
this parts list.
— 47 —
• Abbreviation
SP : Singapore
MY : Malaysia
HK : Hong Kong
G : German
JE : Tourist
1 4-994-808-01 PANEL (ALUMINUM), FRONT (SP,MY,HK,JE)
1 4-994-808-11 PANEL (ALUMINUM), FRONT (AEP,G,UK)
2 4-942-636-21 EMBLEM (No.3.5), SONY
3 4-994-813-01 FILTER (RM)
* 4 1-667-387-11 HP BOARD
* 5 4-994-819-31 CASE
* 6 A-4403-540-A PANEL BOARD, COMPLETE (SP,MY,HK,JE)
* 6 A-4403-560-A PANEL BOARD, COMPLETE (AEP,G)
* 6 A-4403-727-A PANEL BOARD, COMPLETE (UK)
* 7 1-667-385-11 SWITCH BOARD
8 4-930-336-61 FOOT (FELT)
9 4-958-107-01 SCREW (BV/RING S TIGHT)
10 3-363-099-51 SCREW (CASE 3 TP2)
11 4-951-620-01 SCREW (2.6X8), +BVTP
12 X-4948-993-1 PANEL (M) ASSY
13 1-782-805-11 WIRE (FLAT TYPE) (5 CORE)
14 1-782-781-11 WIRE (FLAT TYPE) (27 CORE)
* 15 1-667-388-11 EJECT BOARD
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

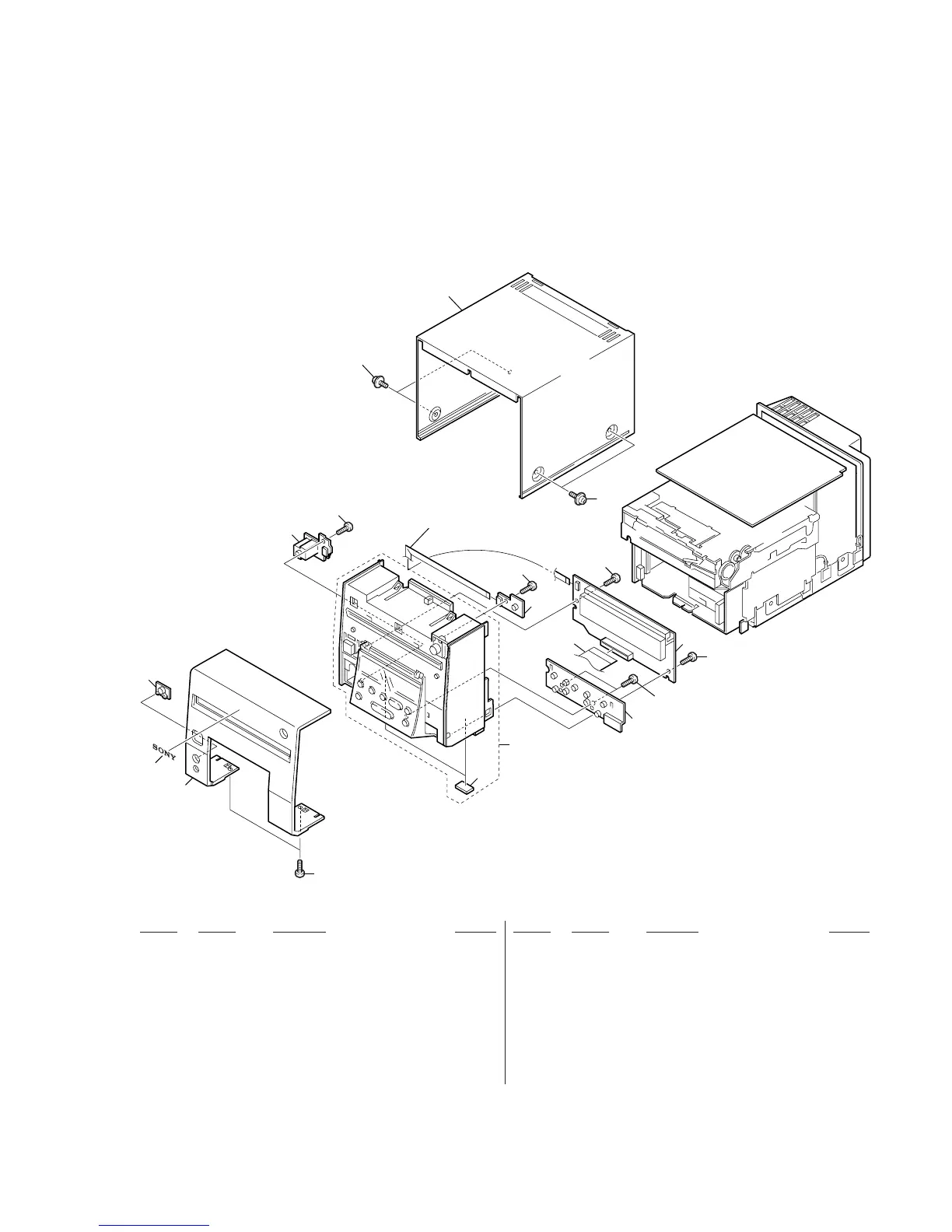

6-1. FRONT PANEL SECTION
10
5
10
11
4
13
15
11
14
11
11
11
6
7
9
12
8
3
1
2
