Sony HCD-101 - PRE Board; Function Board, Relay Board, SP TM Board, Trans Board; Power Board

— 5 —

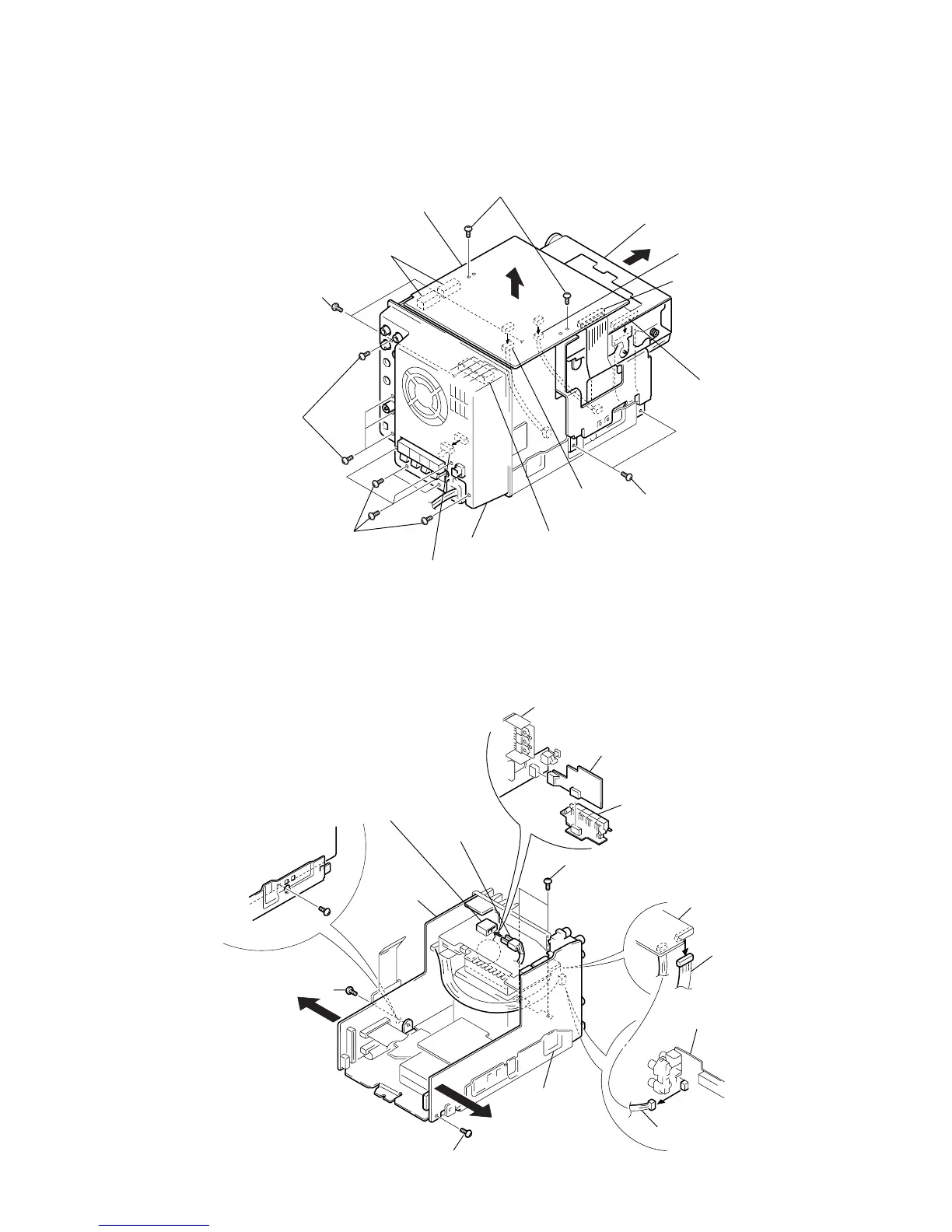

2-3. PRE board
9 Wire (Flat type) (21 Core)
(CN421)
7 Connector (CN107)
!™ PRE board
!¡ Two Connectors
(CN420, CN422)
4 Two screws (BVTP 3 × 8)
8 CDM50
6 Wire (Flat type)
(30 Core)
5 Two screws
(BVTT 3
× 6)
3 Back Panel
2 Connector
(CN814)
!º Connector
(CN423)
!£ Remove CN911
6-pin (Posistor board)
1 Four screws
(BVTP 3
× 8)
1 Six screws
(BVTP 3
× 8)
5 Two screws
(BVTT 3
× 6)
2-4. FUNCTION board, RELAY board, SP TM board, TRANS board, POWER board
8 Two screws (BVTT 3 × 6)
6 Relay board
7 SP TM board
!¡ Trans board
Power board
!º Power cord (CN902)
9 Power board
3 Connector (CN910)
Trans board
Function board
2 Connector (CN404)
4 Function board
1 Screws (BVTP 3 × 8)
5 Screws
(BVTP 3
× 8)
