Sony HCD-101 - Mechanism Deck Section-2 (CDM50)

— 50 —
151 A-3252-586-A SHAFT (SL) ASSY
! 152 8-848-283-11 OPTICAL PICK-UP KSS-313A
153 3-384-922-01 GEAR (SL FEED)
154 3-384-920-01 RETAINER (SL FEED)
155 X-3370-190-1 CHASSIS (OPT) ASSY (OUTSERT)
* 156 3-384-915-11 BRACKET (CP)
* 157 3-384-918-01 RETAINER (DISC)
158 X-3372-948-1 ARM ASSY, CHUCKING
159 3-384-917-01 SPRING (CH)
160 3-926-152-01 SCREW (+PM1.7X2.5)
161 X-3366-100-1 BASE (DRIVING) ASSY
158
160
159
168
156
#4 157
155
161
#5
#5
#9
#6
164
152
162
163
M102
M101
151
167
166
165
153
154
#7
#7
162 3-384-912-11 GEAR (K2)
163 3-570-615-02 POLY-WASHER (DIA.1.2)
164 3-384-913-11 SPRING (THRUST RETAINER)
* 165 1-653-379-51 MOTOR BOARD
166 3-918-103-11 SCREW
167 1-653-376-11 MOTOR FLEXIBLE BOARD
168 3-701-442-01 WASHER, POLYETHYLENE
M101 X-3367-484-2 MOTOR (SP) ASSY (SPINDLE)
M102 A-3252-585-A MOTOR (SL) ASSY (SLED)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

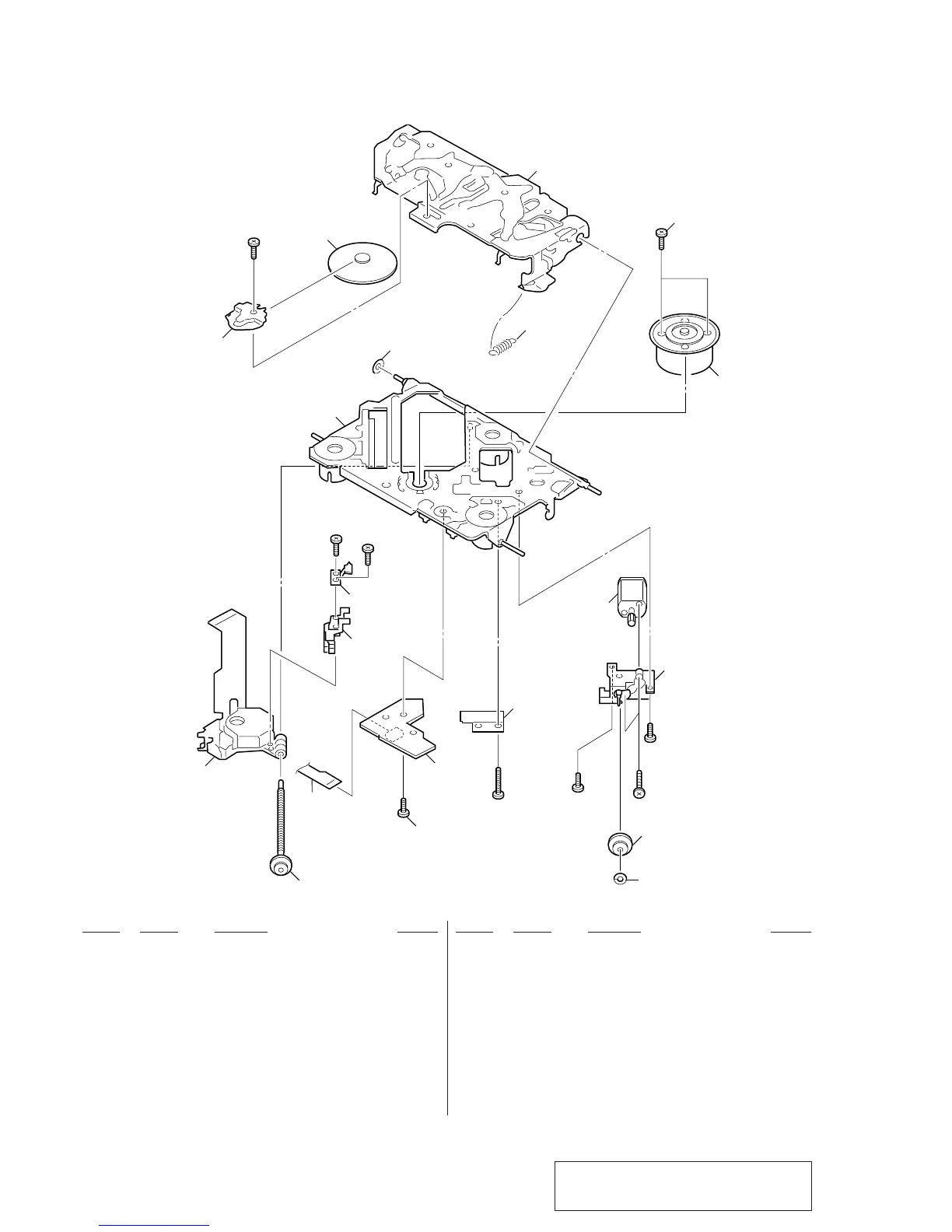

6-4. MECHANISM DECK SECTION-2
(CDM50)
