SECTION 2
DISASSEMBLY

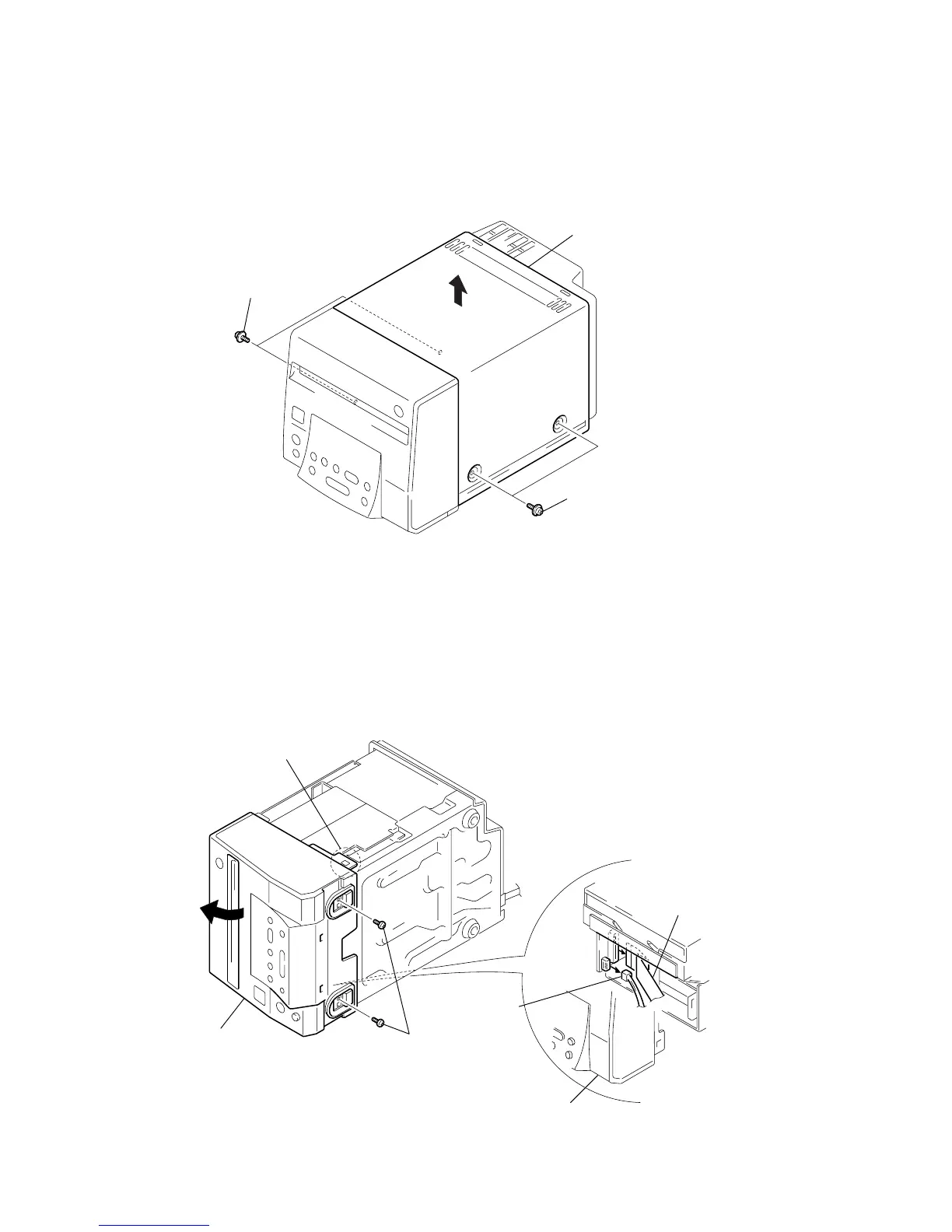

2-1. CASE
1 Two screws (Case 3 TP2)
1 Two screws (Case 3 TP2)
2 Remove the case upward in the
direction of the arrow.
2-2. FRONT PANEL SECTION
3 Wire (Flat Type)
(27 Core)
5 Front panel section
4 Connector
(CN916)
1 Two screws
(BV/Ring S Tight)
2 Pull the front panel out.
claw
