Sony HCD-101 - Chassis (OPT), Chucking Arm Assy; Motor (SL) Assy (M102), Optical Pick-Up

— 8 —

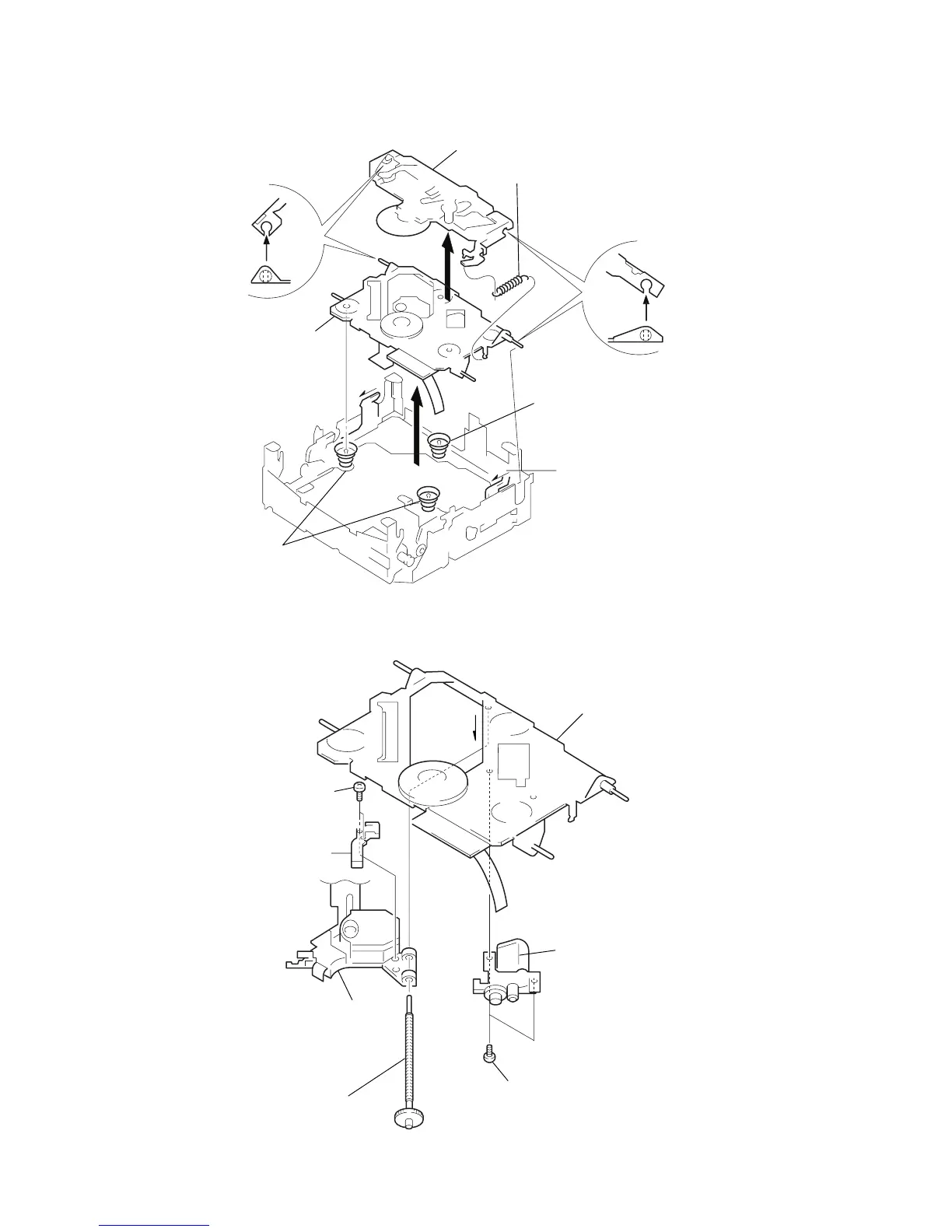

2-9. CHASSIS (OPT) ASSY, CHUCKING ARM ASSY
6 Move the Chucking arm assy
to the position shown in the
illustration and move it up.
6 Move the Chucking arm assy
to the position shown in the
illustration and move it up.
5 Spring (CH)
7 Chucking arm assy
4 Spring (FL2)
1 Move the lever in the
direction of arrow (A).
A
3
Two Spring (FL)
2 Chassis (OPT)
assy
2-10. MOTOR (SL) ASSY (M102), OPTICAL PICK-UP (KSS-313A)
A
3 Move the shift (SL)
assy in the direction
of arrow
A remove
it from chassis (OPT)
and optical Pick-up.
7 Chassis (OPT) assy
4 Screws
(+P 1.7
× 4)
5 Gear (SL Feed)
6 Optical Pick-Up
(KSS-313A)
1 Two screws (+BVTT 3 × 6)
2 Motor (SL)assy (M102
)
