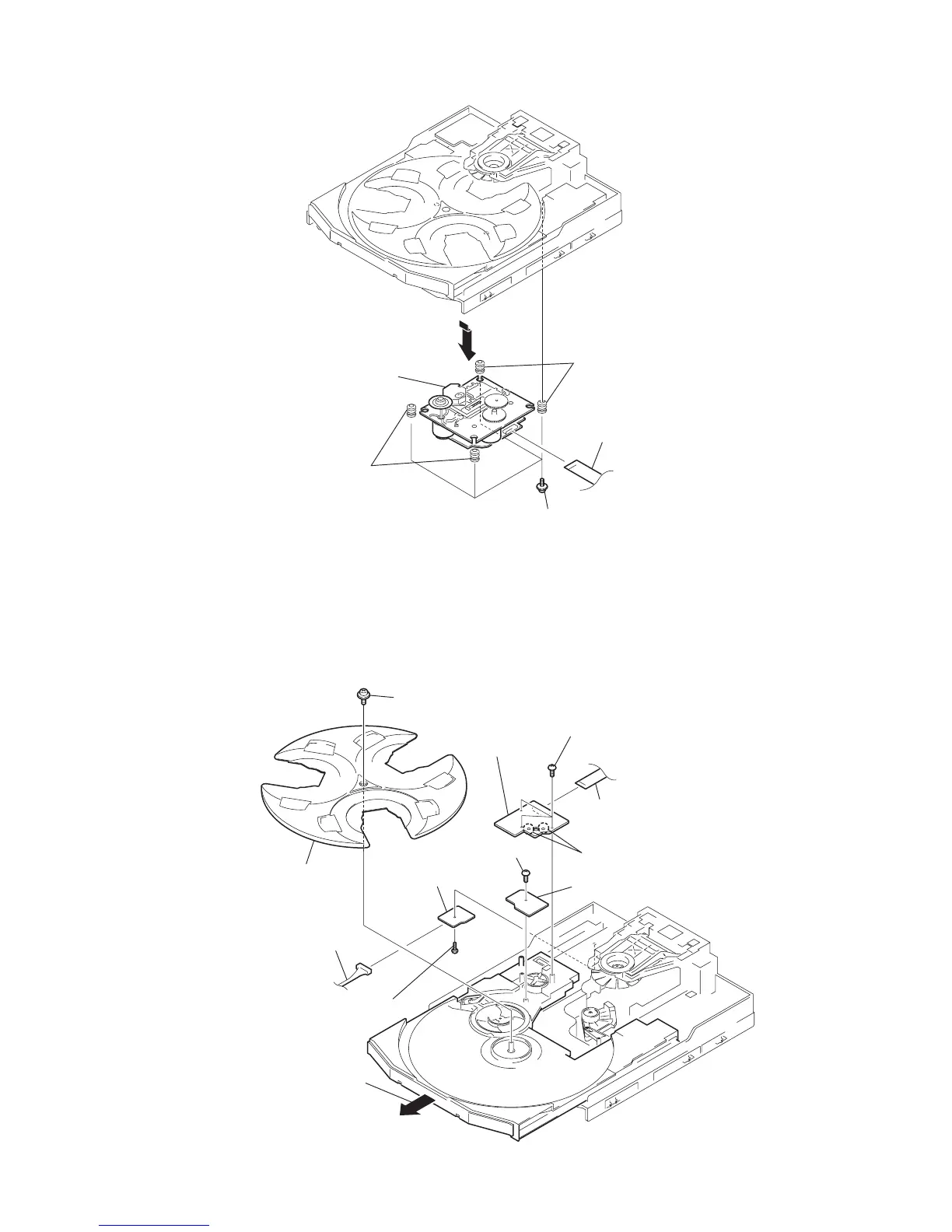

Base unit
3
2 Four screws (+PTPWH 2.6)
4 Two insulators
5 Two insulators
1 Flat type wire (CN101
)
3 Pull-out the disc tray.
5 Three screws (+BVTP 2.6 × 8)
8 Screw (+PTPWH 2.6 × 8)
9 Tray
1 Screw (+BVTP 2.6 × 8)
q; Screw (+BVTP 2.6 × 8)
4 Flat type wire (CN721)
7 Motor board
qa Address sensor board
2 Driver board
3 Connector (CN701)
6 Remove the two solderings of motor.
3-9. BASE UNIT
3-10. DRIVER BOARD, MOTOR BOARD AND ADDRESS SENSOR BOARD
