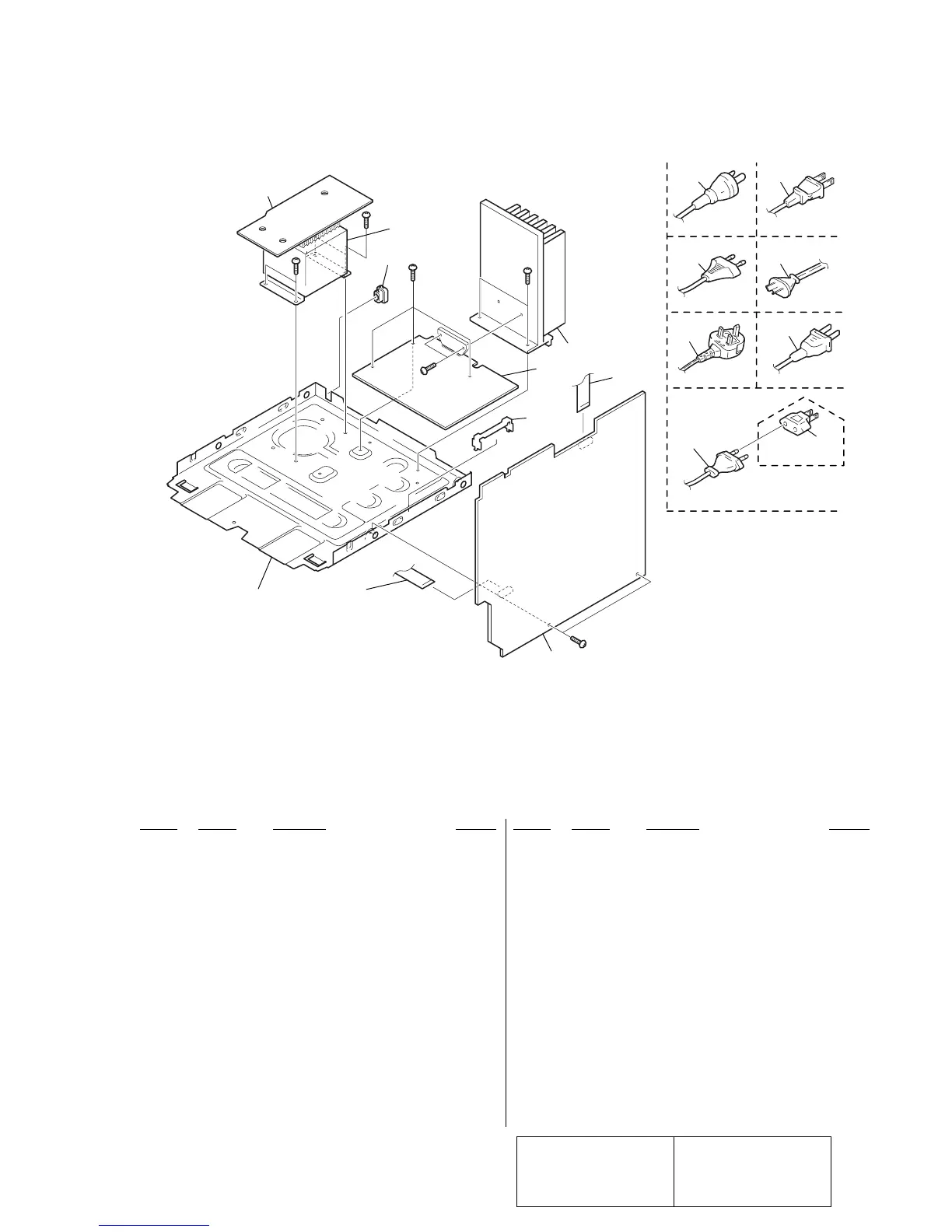

8-3. MAIN BOARD SECTION
E,MX,TH
US, CND
AUS
CIS,AED,AEP,EA,MY,SP,TW
AR
KR
UK,G
#3
#3
#4
#6
#2
#6
109
108
108
108
103
107
106
101
102
104
105
not supplied
T972
not supplied
108
108
108
108
EA,MY,SP,TW
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-070-A MAIN BOARD,COMPLETE (AED,AEP,CIS,UK,G)
102 A-4428-084-A MAIN BOARD,COMPLETE (CND,US)
102 A-4428-090-A MAIN BOARD,COMPLETE (MY,SP,TW)
102 A-4428-288-A MAIN BOARD,COMPLETE (EA)
102 A-4428-290-A MAIN BOARD,COMPLETE (AUS)
102 A-4428-292-A MAIN BOARD,COMPLETE (E)
102 A-4428-735-A MAIN BOARD,COMPLETE (AR,MX)
102 A-4428-910-A MAIN BOARD,COMPLETE (TH)
102 A-4428-958-A MAIN BOARD,COMPLETE (KR)
* 103 4-988-533-01 HOLDER, PWB
104 1-773-122-11 WIRE (FLAT TYPE) (19 CORE)
105 1-676-192-11 TRANS BOARD
106 3-703-571-11 BUSHING (S) (4516), CORD (E,MX,TH)
* 106 3-703-244-00 BUSHING (2104), CORD (EXCEPT E,MX,TH)
107 A-4428-079-A POWER AMP BOARD,COMPLETE
(AED,AEP,CIS,UK,G,US)
107 A-4428-094-A POWER AMP BOARD,COMPLETE
(AR,AUS,E,EA,KR,MX,MY,SP,TW)
107 A-4428-336-A POWER AMP BOARD,COMPLETE (CND)
107 A-4428-901-A POWER AMP BOARD,COMPLETE (TH)
0 108 1-696-847-11 CORD, POWER (AUS)
0 108 1-769-079-21 CORD, POWER (KR)
0 108 1-777-071-51 CORD, POWER (AED,AEP,CIS,EA,MY,SP,TW)
0 108 1-783-820-11 CORD, POWER (CND,US)
0 108 1-783-941-11 CORD, POWER (AR)
0 108 1-790-226-11 CORD, POWER (UK,G)
0 108 1-791-901-11 CORD, POWER (E,MX,TH)
109 1-569-008-31 ADAPTOR, CONVERSION (EA,MY,SP,TW)
0 T972 1-435-261-11 TRANSFORMER, POWER (AED,AEP,CIS,UK,G)
0 T972 1-435-262-11 TRANSFORMER, POWER
(AR,AUS,E,EA,KR,MX,MY,SP,TH,TW)
0 T972 1-435-263-11 TRANSFORMER, POWER (CND)
0 T972 1-435-264-11 TRANSFORMER, POWER (US)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
