Sony HCD-BX5 - Printed Wiring Board BD Section

HCD-BX5/DX5/DX5J
2424

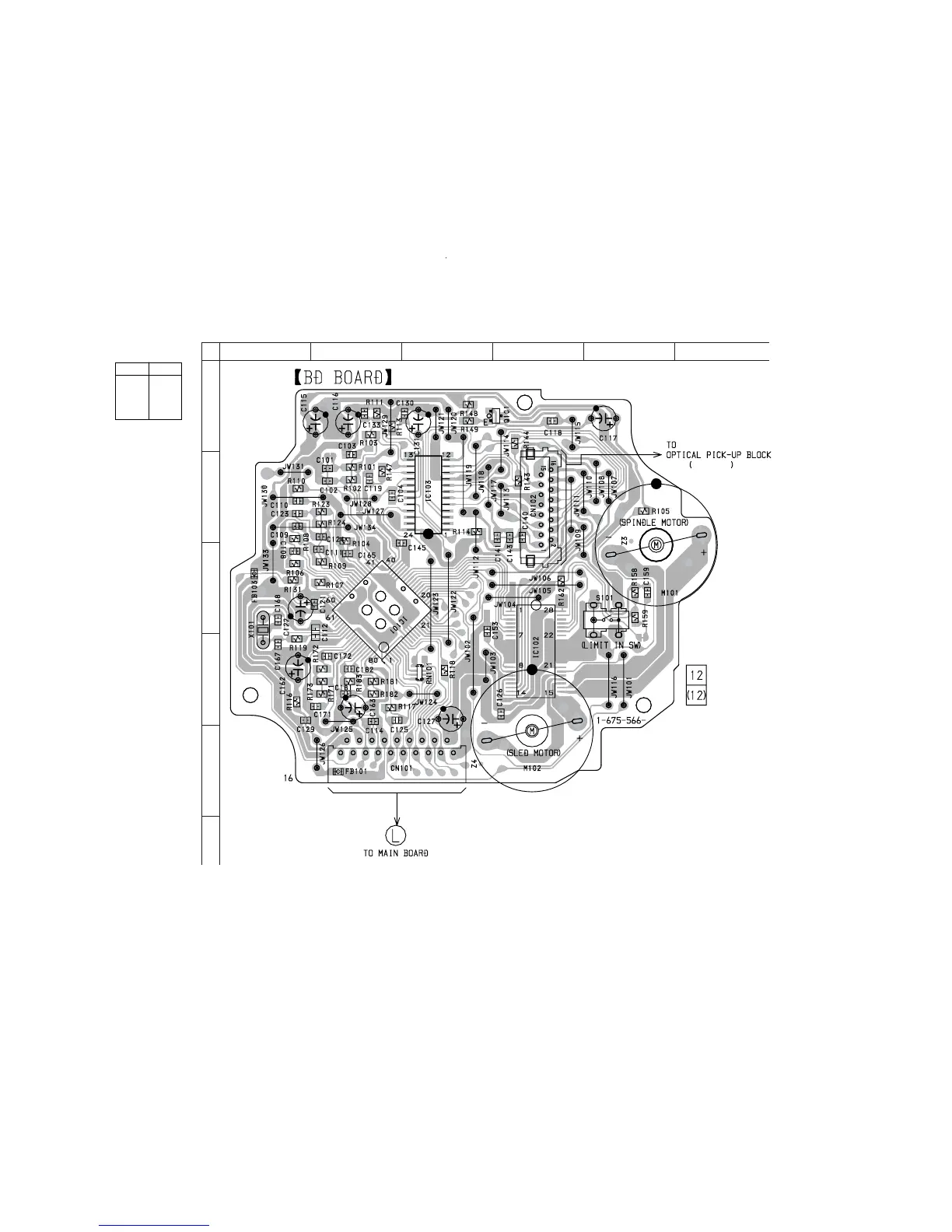

7-3. PRINTED WIRING BOARD BD SECTION
• See page page 21 for Circuit Boards Location.
(Page 26)
KSM-213D
12
A
B
C
D
E
F
3456
Ref. No. Location
IC101 D-2
IC102 C-4
IC103 B-3
Q101 A-4
• Semiconductor
Location
Ver 1.3 2003.11
