Sony HCD-BX5 - Printed Wiring Board Leaf SW Section

HCD-BX5/DX5/DX5J
3434

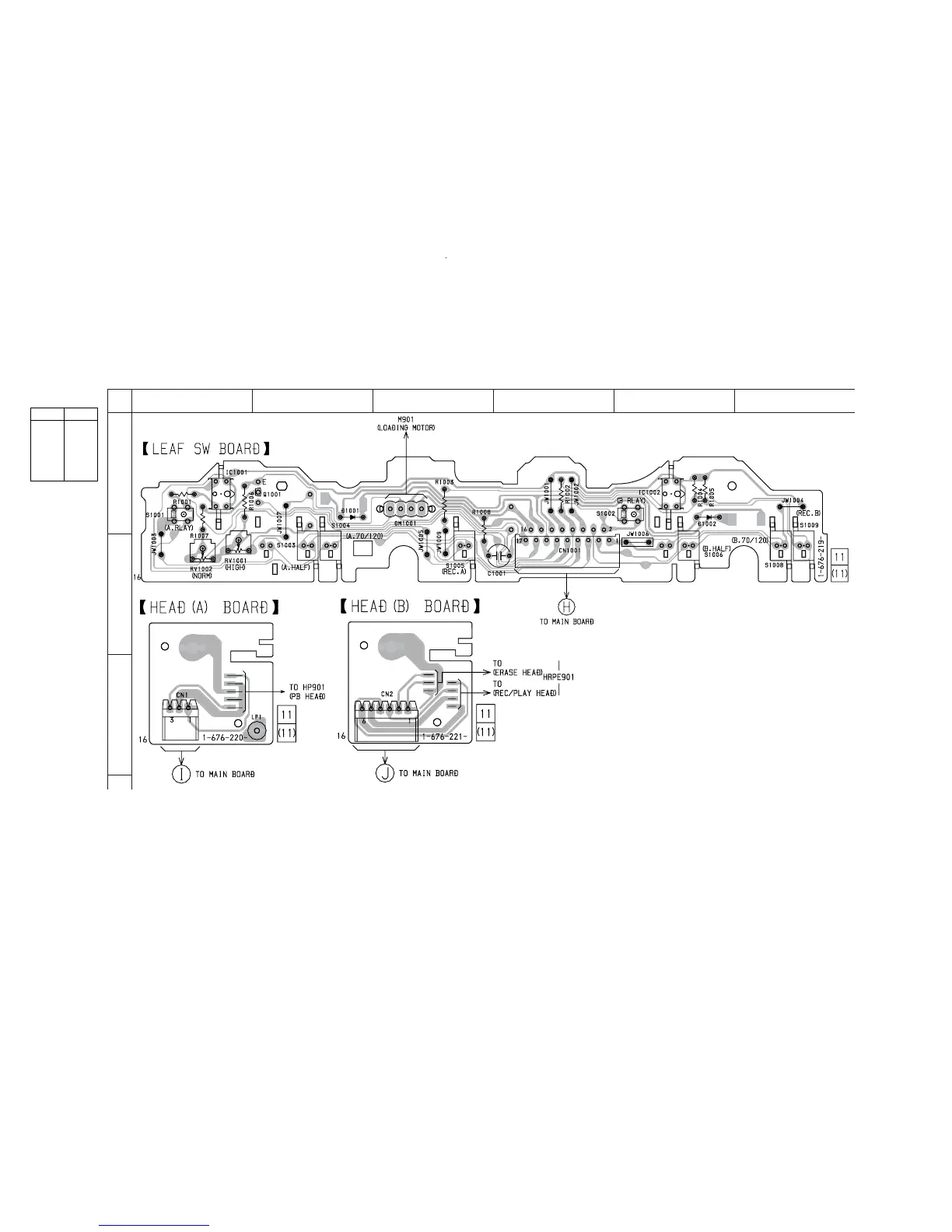

7-13. PRINTED WIRING BOARD LEAF SW SECTION
• See page page 21 for Circuit Boards Location.
12
A
B
C
3456
(Page 26)
(Page 26)
(Page 26)
Ref. No. Location
D1001 A-2
D1002 A-5
IC1001 A-1
IC1002 A-5
Q1001 A-2
• Semiconductor
Location
