Sony HCD-BX5 - Printed Wiring Board Trans Section

HCD-BX5/DX5/DX5J
3838

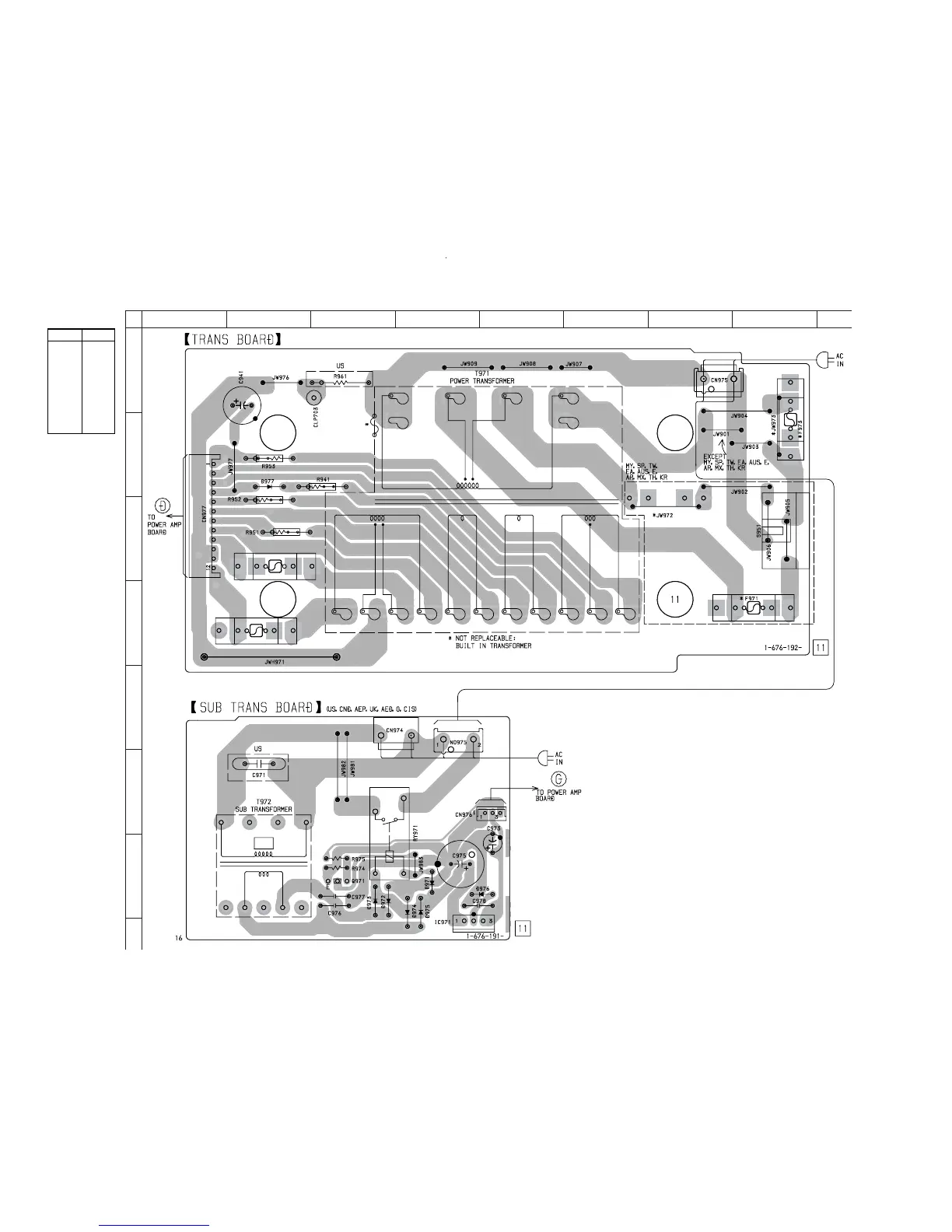

7-17. PRINTED WIRING BOARD TRANS SECTION
• See page page 21 for Circuit Boards Location.
12
A
B
C
D
E
F
G
H
3456789
(Page 30)
(Page 30)
EXCEPT
US,CIS
F975
F974
Ref. No. Location
D971 G-4
D972 G-3
D973 G-3
D974 G-4
D975 G-4
D976 G-5
D977 B-2
IC971 G-4
Q971 G-3
• Semiconductor
Location
