Sony HCD-BX5 - Exploded Views; Main Section Exploded View

SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
•Abbreviation
CND : Canadian model
AUS: Australian model
G: German model
AED : North European model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
KR : Korea model
45
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
MX : Mexican model
AR : Argentina model
CD mechanism deck
#5
#2
#3
#3
#
3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
M961
9
8
7
10
*1
*2
*1: US, CND, AEP, AED, CIS, UK, G models
*2: E, EA, AR, AUS, KR, MX, MY, SP, TH, TW models
*1

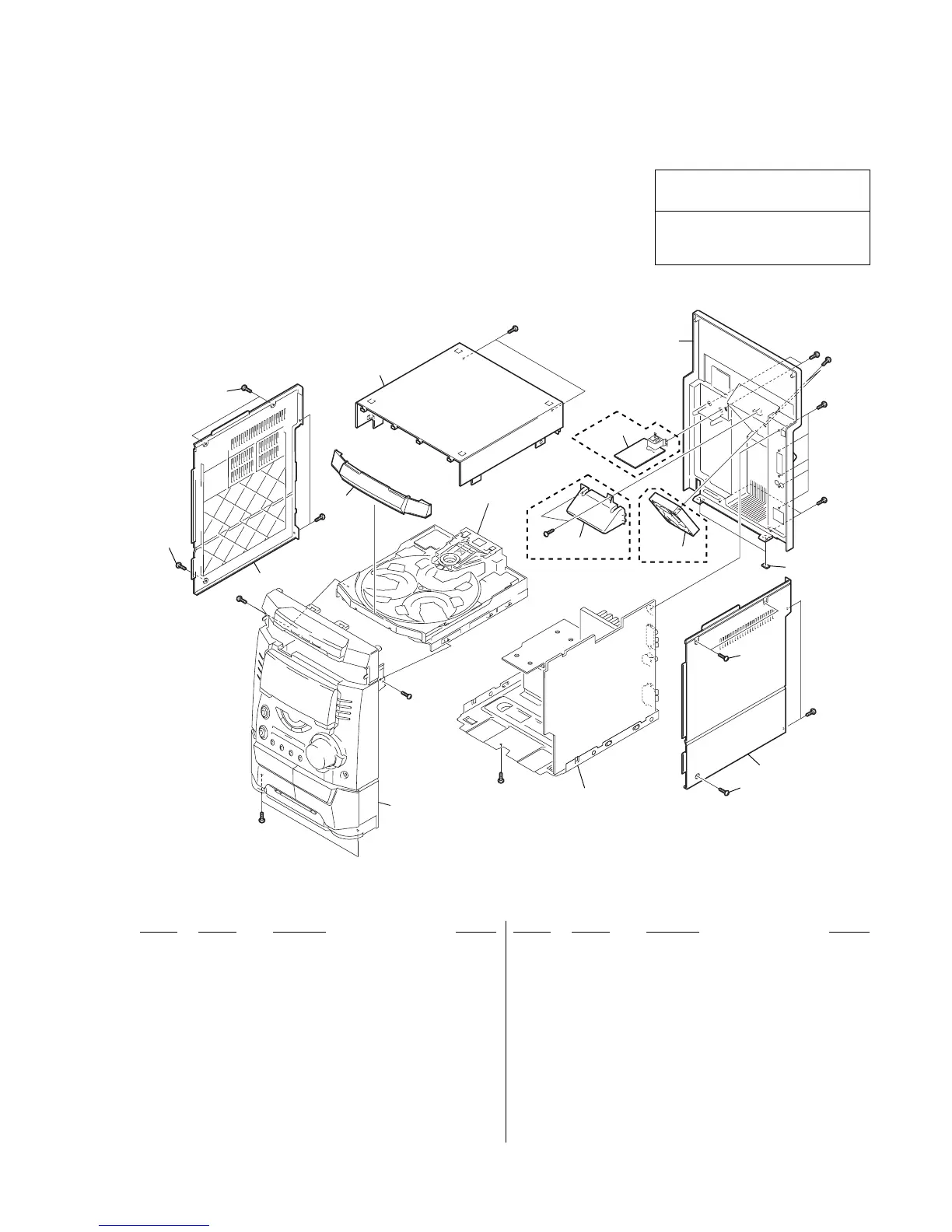

8-1. MAIN SECTION
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-225-038-01 SIDE PANEL L
(AED,AEP,CIS,CND,UK,G,US,KR,TH)
3 4-225-038-21 SIDE PANEL L (AR,AUS,E,EA,MX,MY,SP,TH,TW)
4 4-225-017-01 LOADING PANEL (AED,AEP,CIS,CND,UK,G,US)
4 4-225-017-11 LOADING PANEL
(AR,AUS,E,KR,MX,MY,SP,TH,TW)
4 4-225-017-21 LOADING PANEL (EA)
5 4-225-039-01 SIDE PANEL R
(AED,AEP,CIS,CND,UK,G,US,KR,TH)
5 4-225-039-21 SIDE PANEL R (AR,AUS,E,EA,MX,MY,SP,TH,TW)
6 4-224-550-01 UPPER CASE (TOP) (EXCEPT US,CND)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6 4-224-550-21 UPPER CASE (TOP) (US,CND)
7 A-4428-082-A SUB-TRANS BOARD,COMPLETE
(AED,AEP,CIS,UK,G)
7 A-4428-088-A SUB-TRANS BOARD,COMPLETE (US)
7 A-4428-959-A SUB-TRANS BOARD,COMPLETE (CND)
8 4-225-040-01 BACK PANEL
(AED,AEP,CIS,UK,G,AUS,KR,MX,TH)
8 4-225-040-11 BACK PANEL (AR,E,EA,MY,SP,TW)
8 4-225-040-21 BACK PANEL (US,CND)
9 4-225-252-01 CUSHION (FOOT)
10 4-227-467-01 DUCT (B3) (AED,AEP,CIS,CND,UK,US,G)
M961 1-763-072-11 FAN, D.C. (AR,AUS,E,EA,KR,MX,MY,SP,TH,TW)
