Sony HCD-CP101 - Chassis Section

38
HCD-CP101

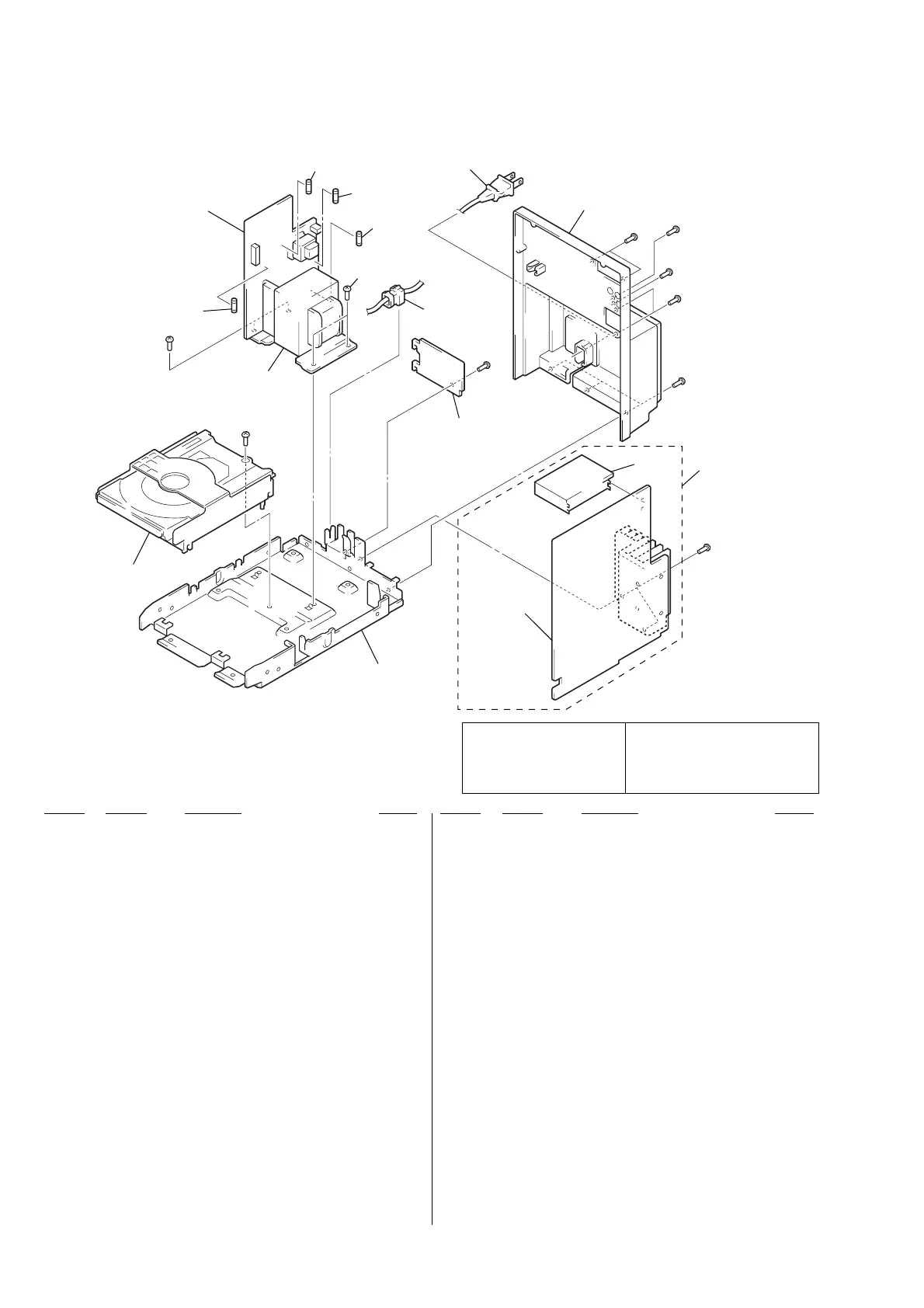

7-3. CHASSIS SECTION
105
106
104
#6
#6
#6
#6
#6
#8
F903
F901
F902
F905
#8
#
5
TU1
#6
T902
#6
not supplied
main board
CDM55F-K6BD41A
109
108
102
Ver 1.2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
102 A-4728-261-A POWER BOARD, COMPLETE (AEP, UK, AUS)
102 A-4729-303-A POWER BOARD, COMPLETE (E, AR, SP)
102 A-4729-396-A POWER BOARD, COMPLETE (US, CND)
102 A-4729-399-A POWER BOARD, COMPLETE (MX)
102 A-4730-026-A POWER BOARD, COMPLETE (KR)
104 4-217-350-11 STOPPER, CORD
0 105 1-696-169-11 CORD, POWER (AEP, UK, SP)
0 105 1-696-848-41 CORD, POWER (AUS)
0 105 1-769-079-21 CORD, POWER (KR)
0 105 1-775-789-91 CORD, POWER (E, MX)
0 105 1-783-532-11 CORD, POWER (US, CND)
0 105 1-783-941-21 CORD, POWER (AR)
106 X-4954-869-1 BACK PANEL ASSY (US, CND)
106 X-4954-871-1 BACK PANEL ASSY (MX)
108 A-4728-257-A MAIN BOARD, COMPLETE (AEP, UK)
108 A-4729-302-A MAIN BOARD, COMPLETE (SP)
108 A-4729-305-A MAIN BOARD, COMPLETE (E, AR)
108 A-4729-307-A MAIN BOARD, COMPLETE (AUS)
108 A-4729-389-A MAIN BOARD, COMPLETE (US, CND)
108 A-4729-397-A MAIN BOARD, COMPLETE (MX)
108 A-4730-019-A MAIN BOARD, COMPLETE (KR)
109 1-683-892-11 POWER FIXED PWB
(AEP, UK, E, AR, SP, KR, AUS)
109 1-683-892-21 POWER FIXED PWB (US, CND, MX)
F901 1-533-464-11 FUSE, GLASS TUBE (DIA. 5) (0.8A/250V)
(AEP, UK, KR, AUS)
F901 1-576-374-11 FUSE, GLASS TUBE (1.25A/125V)
(US, CND, MX)
F902 1-533-466-11 FUSE, GLASS TUBE (DIA. 5) (1.25A/250V)
(E, AR, SP)
F903 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) (2A/250V)
(AEP, UK, E, AR, SP, KR, AUS)
F903 1-576-375-11 FUSE, GLASS TUBE (3.15A/125V)
(US, CND, MX)
F905 1-533-464-11 FUSE, GLASS TUBE (DIA. 5) (0.8A/250V)
(E, AR, SP)
T902 1-437-248-11 TRANSFORMER, POWER (AEP, UK, KR, AUS)
T902 1-437-249-11 TRANSFORMER, POWER (US, CND. MX)
T902 1-437-250-11 TRANSFORMER, POWER (E, AR, SP)
TU1 A-4303-953-A TUNER PACK (AEP, UK, KR, AUS)
TU1 A-4303-954-A TUNER PACK (US, CND, E, MX, AR, SP)
#5 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
#8 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
