HCD-CP101
SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

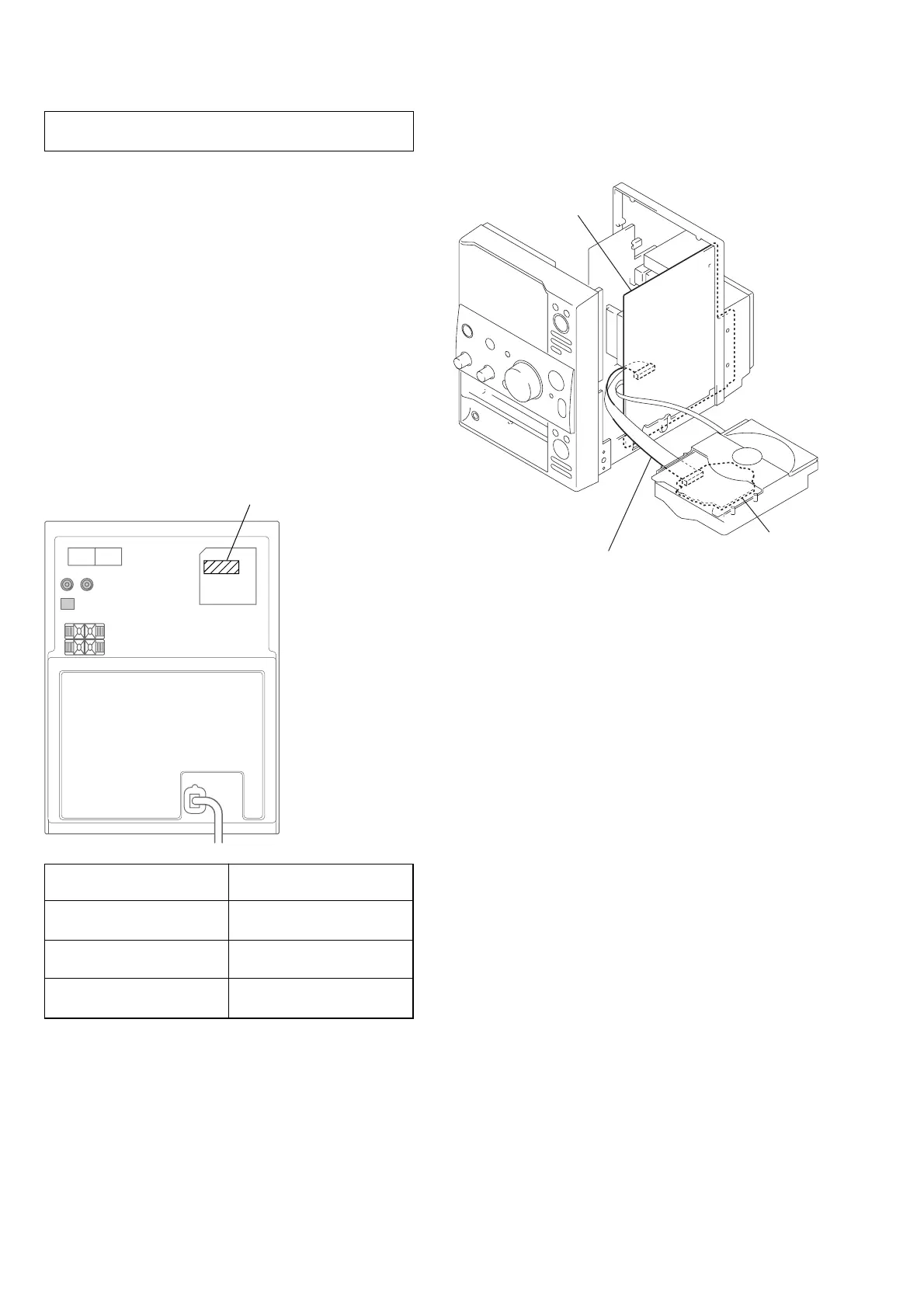

• MODEL IDENTIFICATION
– Rear Panel –
Power Voltage Indication
Power Voltage
Incdication
AC: 120 V 60 Hz 75 W
AC: 230 V -50/60 Hz 75 W
AC: 110 – 120/
220 – 240 V / 50/60 Hz 75 W
Model
US, Canadian and
Mexican models
AEP, UK, Korean and
Australian models
E, Singapore and
Argentina models
SERVICE POSITION
In checking the CD block, prepare jig (extension cable J-2501-
011-B: 1.25 mm Pitch, 19 cores, Length 300 mm).
Connect jig (extension cable J-2501-011-B)
to the MAIN board (CN101) and CD board (CN101).
MAIN board
CD board
Ver 1.2
