Sony HCD-CP101 - Note for Printed Wiring Boards and Schematic Diagrams

HCD-CP101
1818
6-4. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

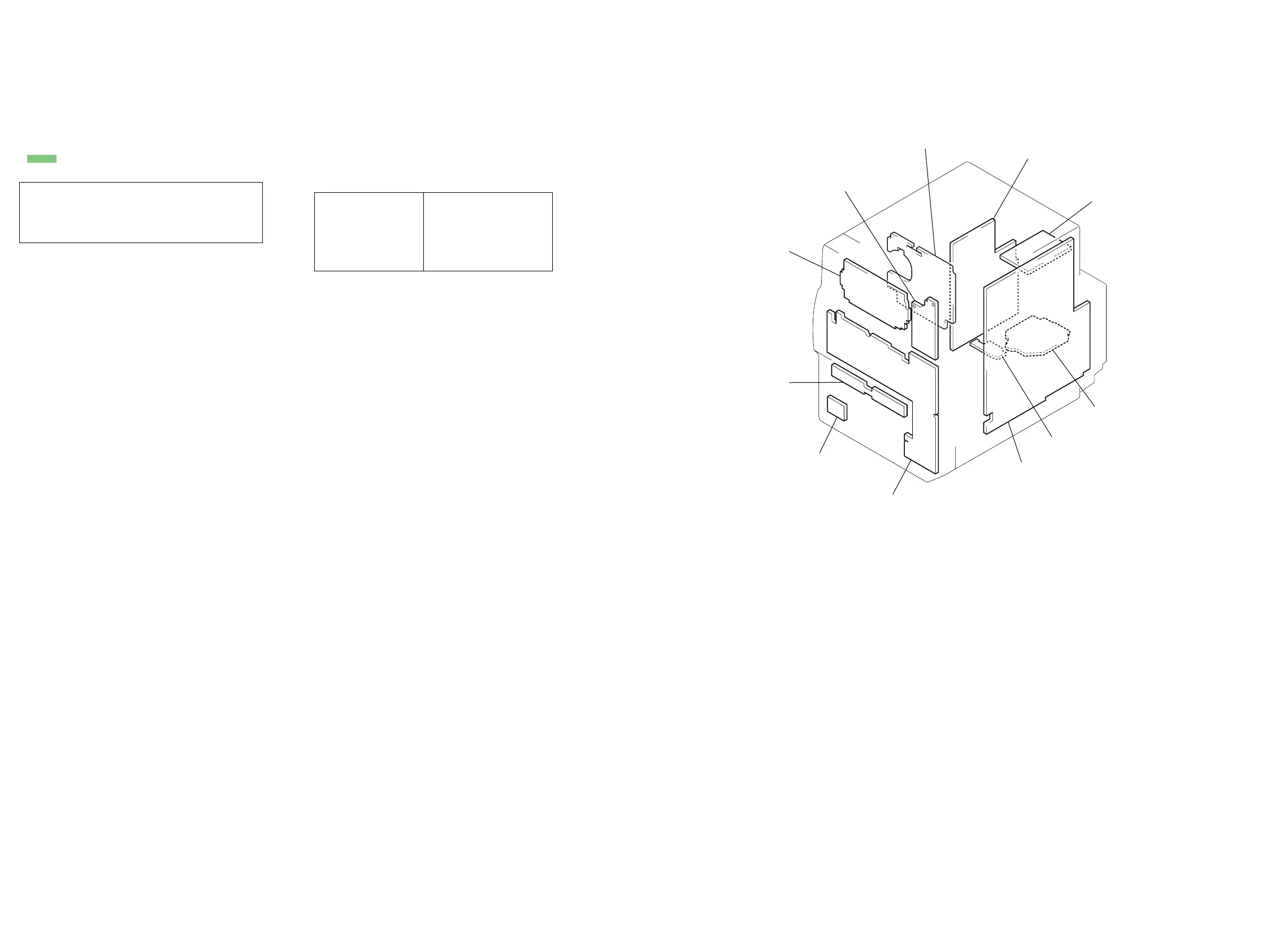

• Circuit Boards Location
TC board
CD INDICATOR board
LCD board
CONTROL (B) board
CONTROL (A) board
HEADPHONE board
POWER board
CD board
MOTOR board
MAIN board
TUNER UNI
T
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• W : indicates side identified with part number.
•
f
: internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : TUNER
E :TAPE (PLAY)
a : TAPE (REC)
j : MD
J : CD PLAY (ANALOG)
c : CD PLAY (DIGITAL OUT)
•Abbreviation
AR : Argentina model
AUS: Australian model
CND : Canadian model
KR : Korean model
MX : Mexican model
SP : Singapore model
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
Ver 1.2
