Sony HCD-CQ1 - Tray; LOADING Board, Gear (P), Gear (M)

17
HCD-CQ1

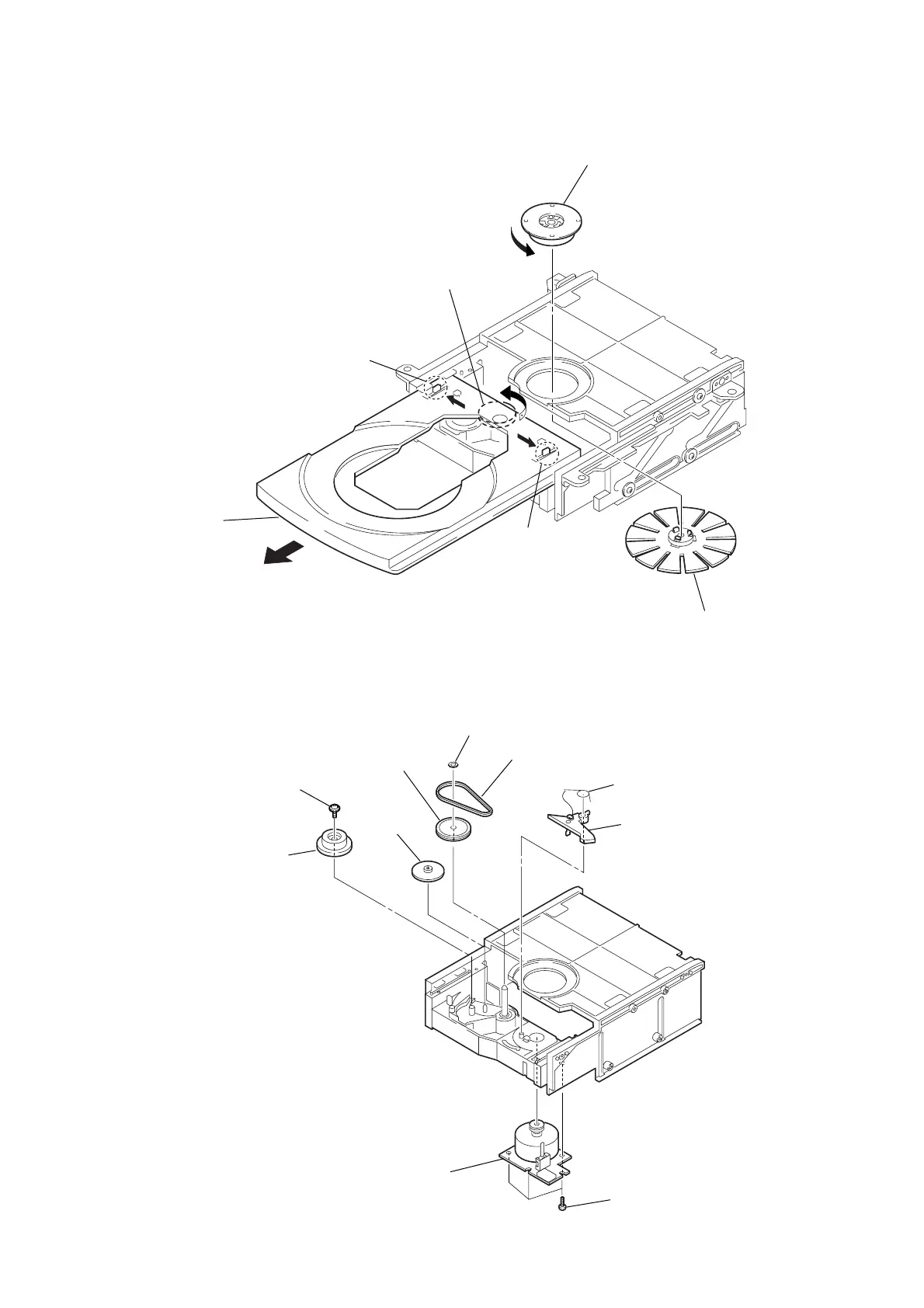

3-16. LOADING Board, Gear (P), Gear (M)
1 belt (CDM55)
5 pulley (LDG)
8 gear (M)
9 torsion sprin
g
q; lever (sw)
7 gear (P)
4 stop ring 2.0 type-E
3 LOADING board
2 three screws
(+P 2.6 × 8)
6 screw
(+PTPWH M2)
3-15. Tray
A
1 magnet assy
2 pulley (AT) ass
y
5 tray
4
4
3
Rotate the pulley (LDG) in
the direction of arrow
A .
