Sony HCD-CQ1 - Chassis Section-2

39
HCD-CQ1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

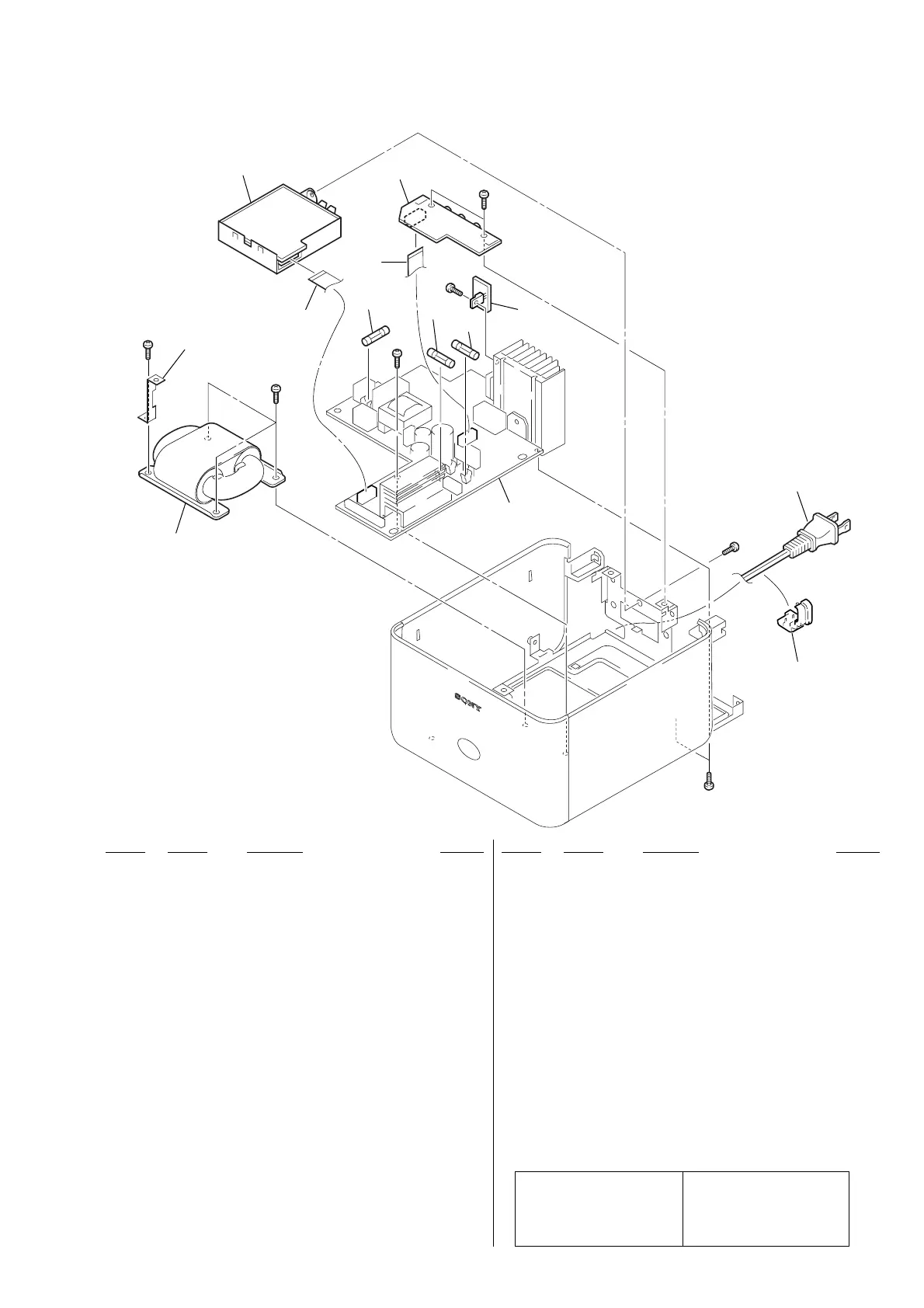

7-3. Chassis Section-2
101
102
104
105
106
107
108
103
not supplied
#5
#5
T901
F901
F912
F911
#1
#1
#1
#4
#4
101 1-693-603-31 TUNER (FM/AM)(HK,SP,TW,MX,AUS)
101 1-693-605-11 TUNER (FM/AM)(AEP,UK,KR)
101 1-693-623-11 TUNER (FM/AM)(FOR BLACK)(US,CND)
101 1-693-623-31 TUNER (FM/AM)(FOR WHITE)(US,CND)
102 1-765-324-11 FFC 11P
103 1-765-324-11 FFC 11P
104 A-4731-461-A JACK BOARD, COMPLETE
105 A-4732-629-A REG BOARD, COMPLETE
106 A-4731-453-A POWER BOARD, COMPLETE (US,CND)
106 A-4731-467-A POWER BOARD, COMPLETE (AEP,UK)
106 A-4731-472-A POWER BOARD, COMPLETE (SP)
106 A-4731-477-A POWER BOARD, COMPLETE (HK)
106 A-4731-482-A POWER BOARD, COMPLETE (AUS)
106 A-4731-487-A POWER BOARD, COMPLETE (TW)
106 A-4731-492-A POWER BOARD, COMPLETE (KR)
106 A-4731-497-A POWER BOARD, COMPLETE (MX)
0 107 1-769-079-22 CORD, POWER (KR)
0 107 1-775-790-11 CORD, POWER (AUS)
0 107 1-777-071-83 CORD, POWER (AEP,UK,HK,SP,TW)
0 107 1-783-531-11 CORD, POWER (US,CND)
0 107 1-827-226-11 CORD, POWER (MX)
* 108 3-703-244-00 BUSHING (2104), CORD
0 F901 1-533-451-11 FUSE, GLASS TUBE (DIA. 5)(3.15A 125V)
(US,CND)
0 F901 1-533-470-11 FUSE, GLASS TUBE (DIA. 5)(T3.15AL 250V)
(EXCEPT UC,CND)
0 F911 1-533-449-11 FUSE, GLASS TUBE (DIA. 5) (2.0A 125V)(UC,CND)
0 F911 1-533-467-11 FUSE, GLASS TUBE (T1.6A 250V)
(EXCEPT US,CND)
0 F912 1-533-449-11 FUSE, GLASS TUBE (DIA. 5) (2.0A 125V)(UC,CND)
0 F912 1-533-467-11 FUSE, GLASS TUBE (T1.6A 250V)
(EXCEPT US,CND)
0 T901 1-439-715-11 TRANSFORMER, POWER (US,CND,TW,MX)
0 T901 1-439-716-11 TRANSFORMER, POWER (AEP,UK,SP,AUS)
0 T901 1-439-717-11 TRANSFORMER, POWER (HK,KR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-871-01 SCREW +BVTT 3X6 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
