Sony HCD-CQ1 - Printed Wiring Board - POWER Section (Conductor Side)

3232
HCD-CQ1

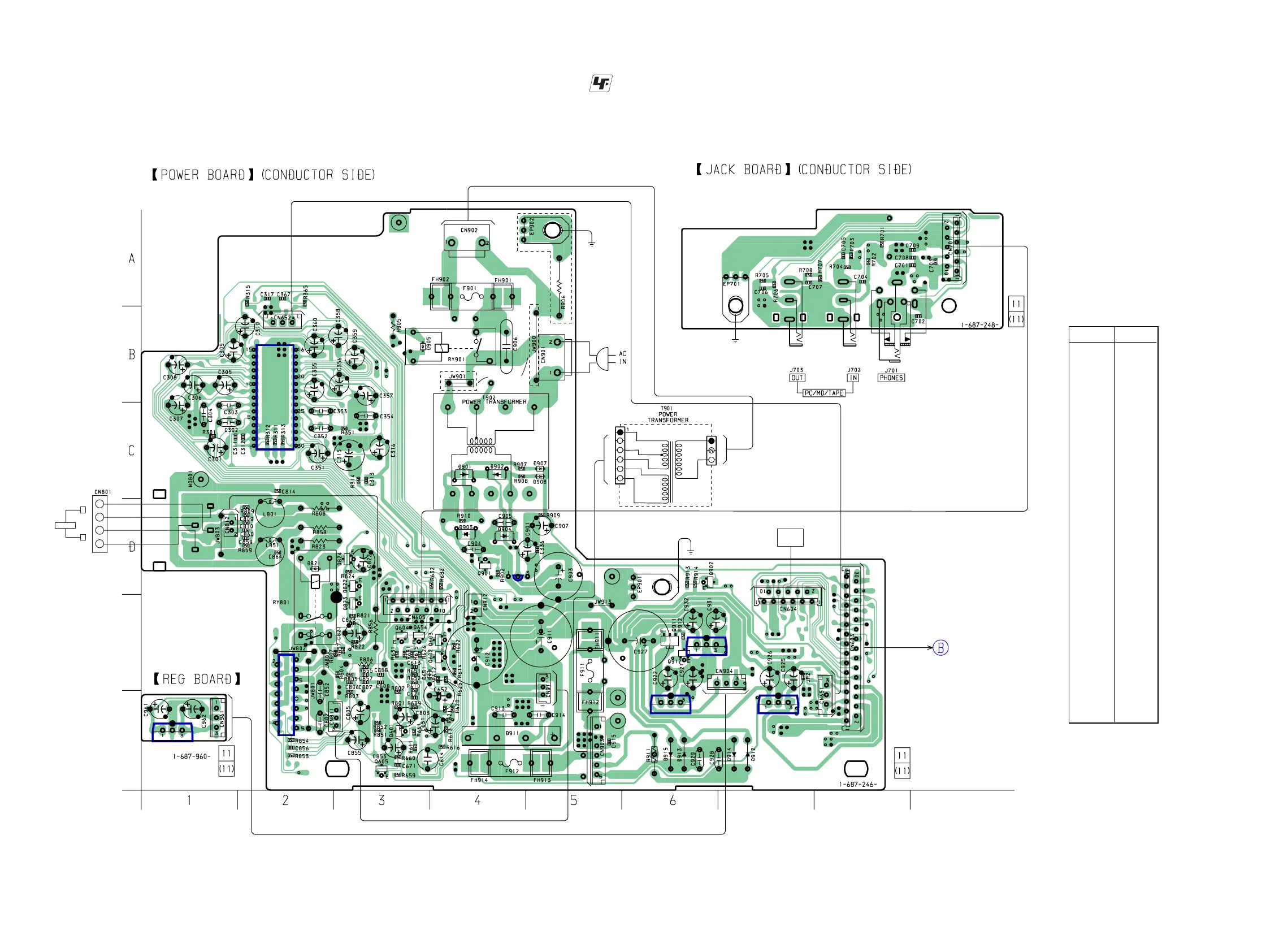

6-12. Printed Wiring Board – POWER Section (Conductor Side) – • See page 21 for Circuit Boards Location.
• : Uses unleaded solder.
IC913
IC914
IC911
IC961
IC901
IC301
IC801
3
CN952
TUNER
PACK
TO
CONTROL
BOARD
CN101
(Page 29)
-
SPEAKER
L
L
+
-
+
(ONLY FOR
SS-CCQ1)
(SUB)
(MAIN)
US,CND,TW,MX
E
F
7
8
9
US,CND
6
D651 E-3
D821 D-2
D901 C-4
D902 C-4
D903 D-4
D904 D-4
D905 B-3
D907 C-5
D908 C-5
D911 F-4
D912 F-7
D913 F-6
D914 F-7
D915 F-6
D920 E-7
IC301 B-2
IC801 F-2
IC901 D-4
IC911 F-6
IC913 F-7
IC914 E-6
IC961 F-6
Q601 F-3
Q602 E-4
Q603 E-4
Q604 E-3
Q605 F-3
Q654 E-3
Q822 D-3
Q823 E-3
Q824 D-3
Q901 D-4
Q902 D-6
Q911 E-6
Q912 E-6
• Semiconductor
Location
Ref. No. Location
