Sony HCD-CQ1 - Printed Wiring Board - CONTROL Section (Conductor Side)

2929
HCD-CQ1

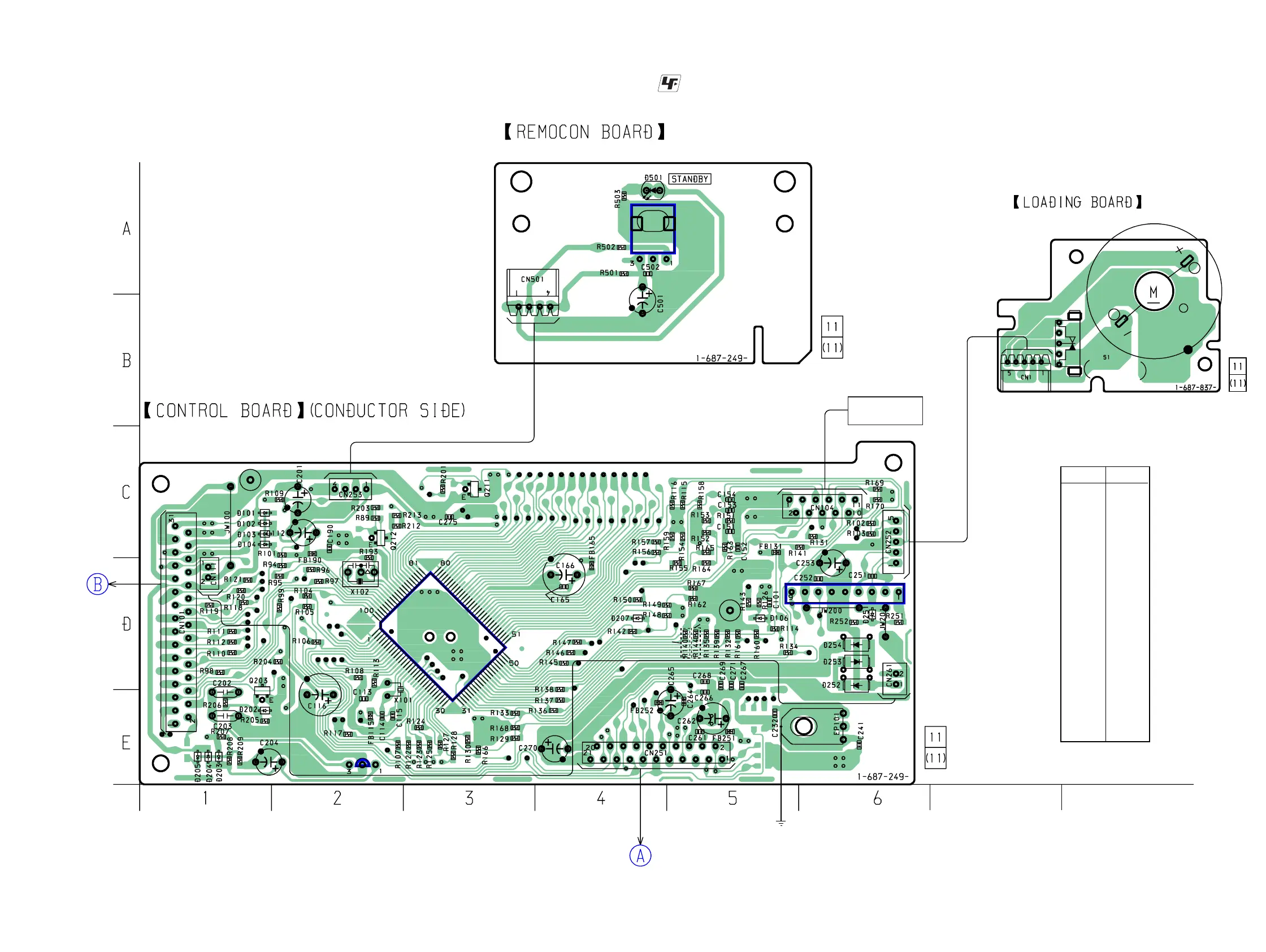

6-9. Printed Wiring Board – CONTROL Section (Conductor Side) – • See page 21 for Circuit Boards Location.
• : Uses unleaded solder.
IC501
IC101
IC201
IC251
FOR FLASH
MICOM WRITER
TO
BD BOARD
CN101
(Page 24)
TO
POWER
BOARD
CN603
(Page 32)
M1
(LODING)
LODING IN /OUT
DETECT
7
8
EXCEPT E
EXCEPT AEP,UK
D101 C-1
D102 C-1
D103 C-1
D104 C-1
D106 D-5
D202 E-1
D203 E-1
D204 E-1
D205 E-1
D206 E-1
D207 D-4
D251 D-6
D252 D-6
D253 D-6
D254 D-6
D501 A-4
IC101 D-3
IC201 E-2
IC251 D-6
IC501 A-4
Q203 D-1
Q211 C-3
Q212 C-2
Ref. No. Location
• Semiconductor
Location
