Sony HCD-CQ1 - 7 Exploded Views; Panel (Top) Section

SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model.
CND: Canadian model.
HK : Hong Kong model.
KR : Korea model.
MX : Mexican model.
SP : Singapore model.
TW : Taiwan model.
37
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
HCD-CQ1

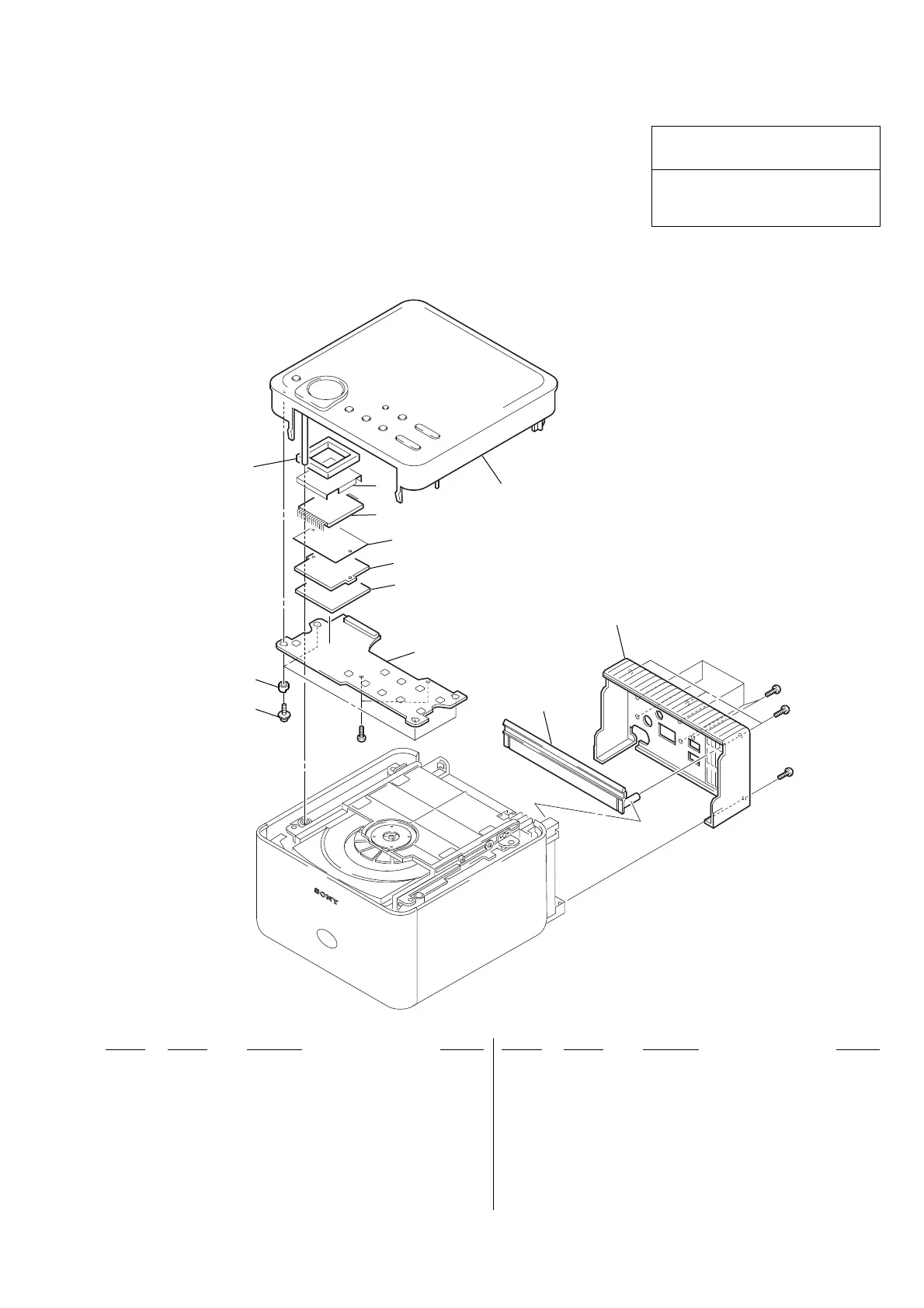

7-1. Panel (Top) Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
4
9
7
8
6
not supplied
LCD401
not supplied
5
#1
#3
#1
#2
1 4-933-134-01 SCREW (M2.6), +PTPWH
2 4-244-737-01 BUSHING (PWB)
3 1-687-250-11 PANEL BOARD
4 4-244-735-01 PLATE, LIGHT GUIDE
5 4-246-812-01 SHEET, REFLECTION
6 4-244-740-01 PANEL (BACK) TOP (FOR WHITE)(US,CND)
6 4-244-740-11 PANEL (BACK) TOP (FOR WHITE)
(EXCEPT UC,CND)
6 4-244-740-21 PANEL (BACK) TOP (FOR BLACK)(US,CND)
7 4-245-495-01 SHEET (HOLOGRAM)
8 X-4955-304-1 PANEL (TOP) ASSY (WHITE)(US,CND)
8 X-4955-533-1 PANEL (TOP) ASSY (WHITE)(EXCEPT UC,CND)
8 X-4955-643-1 PANEL (TOP) ASSY (BLACK)(US,CND)
9 4-244-736-01 SHEET (LCD)
LCD401 1-805-197-11 DISPLAY PANEL, LIQUID CRYSTAL
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-102-19 SCREW (+BTP)(2X4)
Ver 1.1 2003.06
