Sony HCD-CQ1 - CD Mechanism Deck Section-2; (Cdm76-K6 Bd44 S)

42
HCD-CQ1

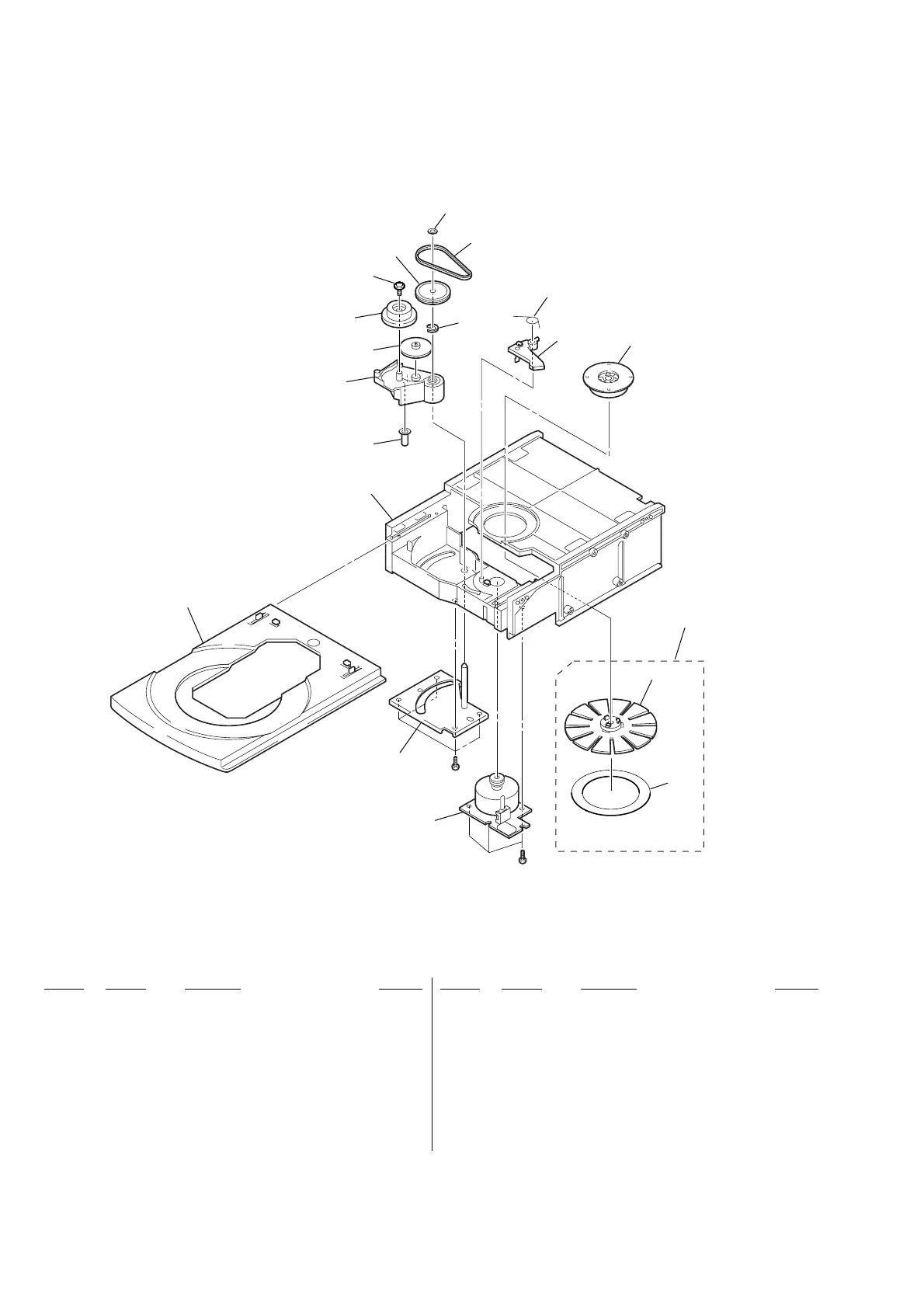

7-6. CD Mechanism Deck Section-2
(CDM76-K6BD44S)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not
supplied
#6
#6
#7
#8
251
252
253
254
256
257
258
260
261
262
263
264
265
259
266
251 X-4955-351-2 BRACKET ASSY
252 4-244-243-01 TRAY
253 4-244-242-01 CHASSIS (CDM)
254 4-244-821-01 COLLAR
255 X-4955-351-1 BRACKET ASSY
256 4-244-251-01 GEAR (M)
257 4-244-252-02 GEAR (P)
258 4-992-069-01 SCREW (+PTPWH)(M2)(DIA. 7)
259 4-244-253-01 PULLEY (LDG)
260 4-221-816-11 BELT (CDM55)
261 4-244-249-01 SPRING, TORSION
262 4-244-248-01 LEVER (SW)
263 1-452-925-21 MAGNET ASSY
264 X-4953-195-3 PULLEY (AT) ASSY
265 4-231-777-02 SHEET (KH2)
266 4-244-241-03 LEVER (U/D)
#6 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#7 7-624-104-04 STOP RING 2.0, TYPE-E
#8 7-624-106-04 STOP RING 3.0, TYPE-E
Ver. 1.3
