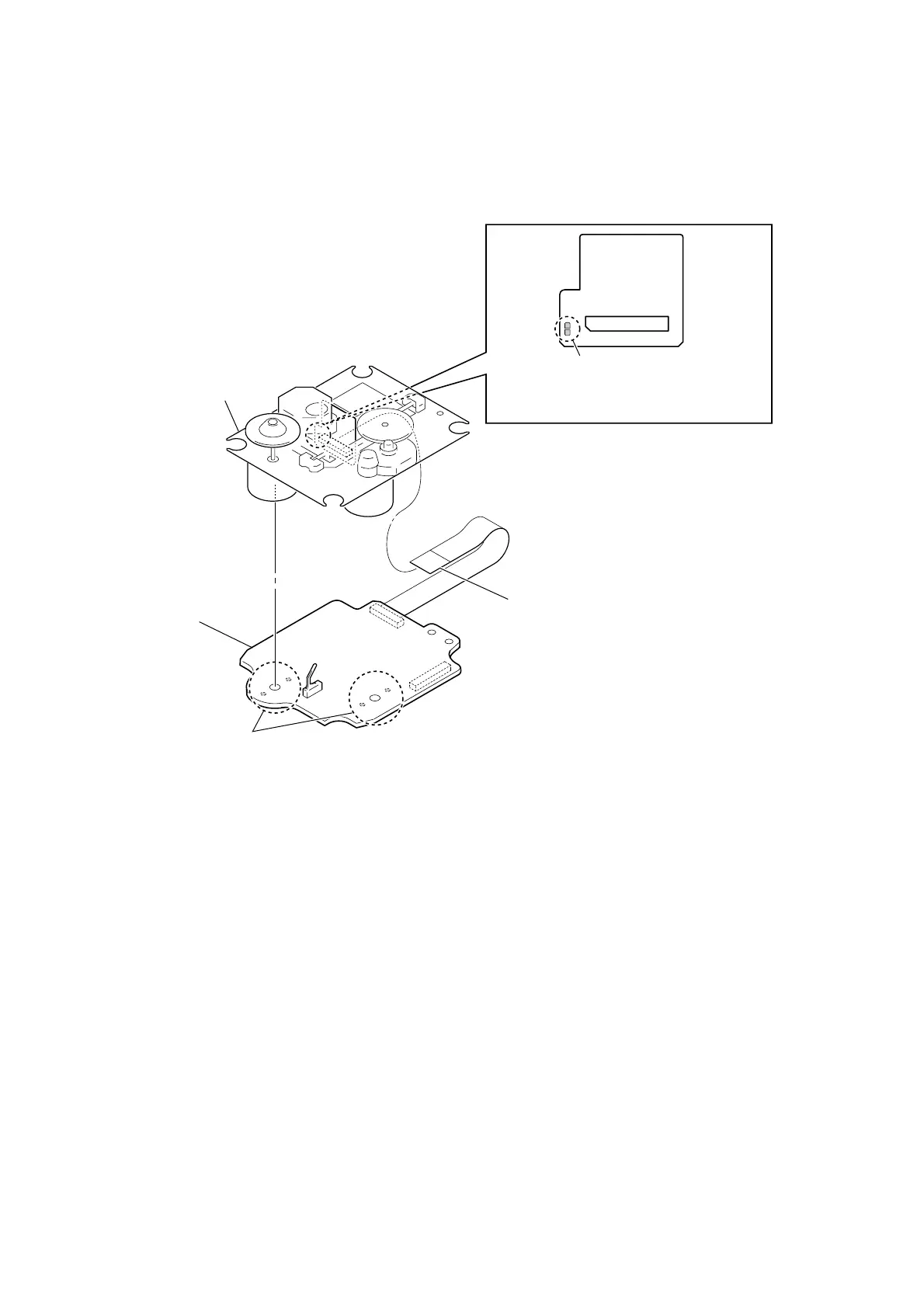

2-8. OPTICAL PICK-UP (KSM-215CFP)
Note 1: When disconnection the wire ( fl at type) (16 core) of optical pick-up, solder the short-land.
2
Solder the short-land.
Note 2:
When assembling the optical pick-up block,
remove the solder of short-land after
connecting the wire (flat type) (16 core).
1 Remove four solders.
3 wire (flat type) (16 core)
(optical pick-up)
5 optical pick-up
(KSM-215CFP)
4 BD94D-V board
