HCD-CX4iP/CX5iP

SECTION 2

DISASSEMBLY

• This set can be disassembled in the order shown below.

2-1. DISASSEMBLY FLOW

Note:

Follow the disassembly procedure in the numerical order given.

2-2. PANEL (BACK) BLOCK

SET

2-3. PANEL (FRONT) BLOCK

(Page 8)

2-4. CD MECHANISM DECK

(CDM80BTK-F4BD94D-V)

(Page 9)

2-7. BASE UNIT

(BU-F4BD94D-V)

(Page 11)

2-8. OPTICAL PICK-UP

(KSM-215CFP)

(Page 12)

2-5. MAIN BOARD

(Page 10)

2-6. BELT (MOT)

(Page 11)

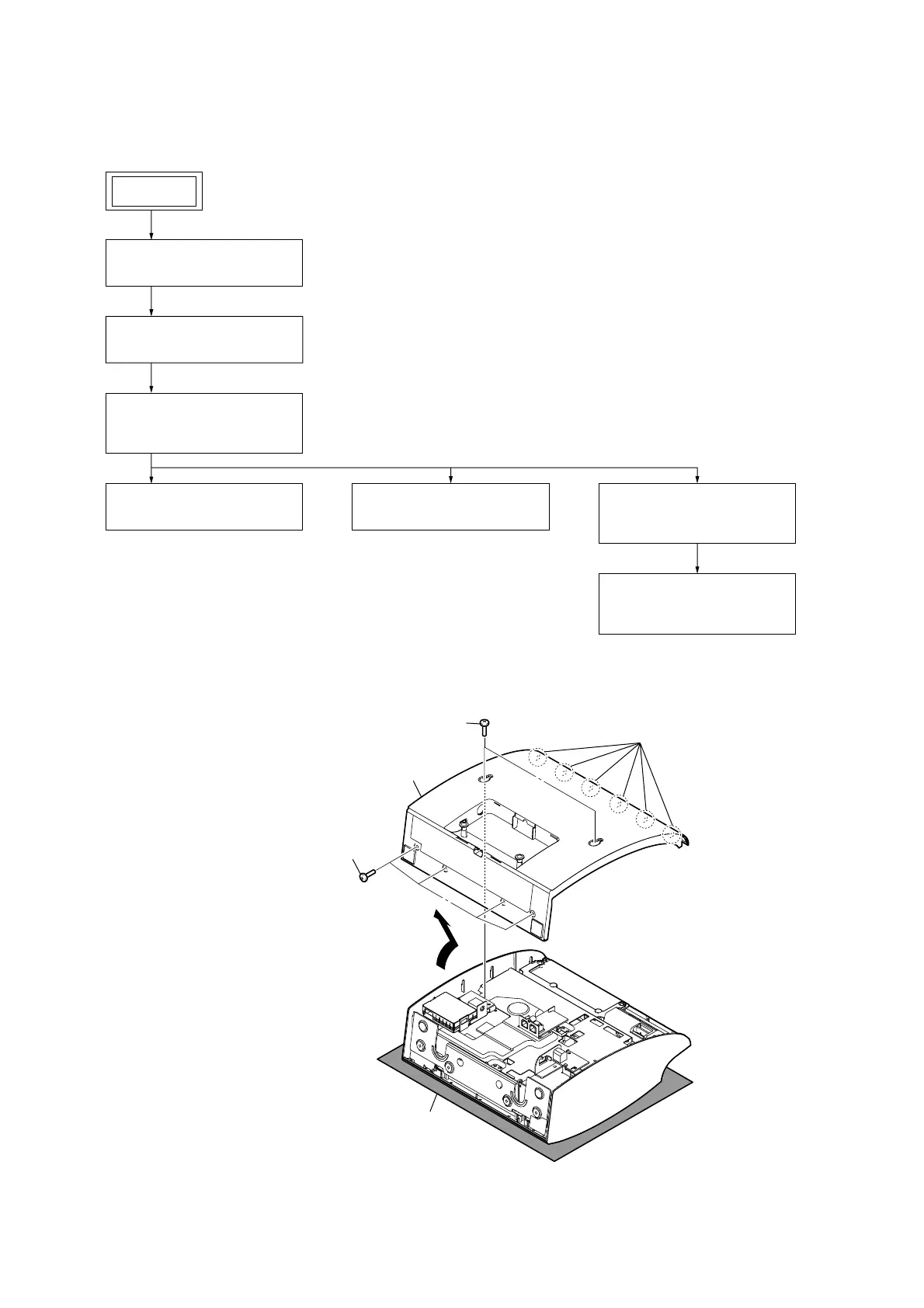

2-2. PANEL (BACK) BLOCK

(Page 7)

1 four screws

(BVTP3 u 8)

5 panel (back) block

2 two screws

(BVTT3 u 6)

4 six claws

– Rear bottom view –

Note: Please spread a sheet

under a unit not to injure

panel (front).
