Sony HCD-CX5iP - Section 5 Exploded Views; Panel (Back) Section

40
HCD-CX4iP/CX5iP
SECTION 5
EXPLODED VIEWS
1 3-252-827-11 SCREW (B2.6), (+) BV TAPPING
2 4-274-566-01 PANEL (BACK) (BLACK)
(CND, AEP, RU, SP, KR, AUS, CH)
2 4-274-566-21 PANEL (BACK) (WHITE) (AEP, SP, TW, CH)
2 4-274-566-41 PANEL (BACK) (US)
3 4-286-285-01 SCREW (WHG)
4 4-285-890-01 CUSHION (FOOT FRONT)
5 3-087-053-01 +BVTP2.6 (3CR) (CX5iP)
6 A-1816-185-A USB-JACK BOARD, COMPLETE (CX5iP)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “
* ” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
n n
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
E2 : 120V AC area in E model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
• Color variations (HCD-CX5iP only)
BLACK : Except Taiwan model
WHITE : AEP, Singapore, Taiwan,
Chinese models

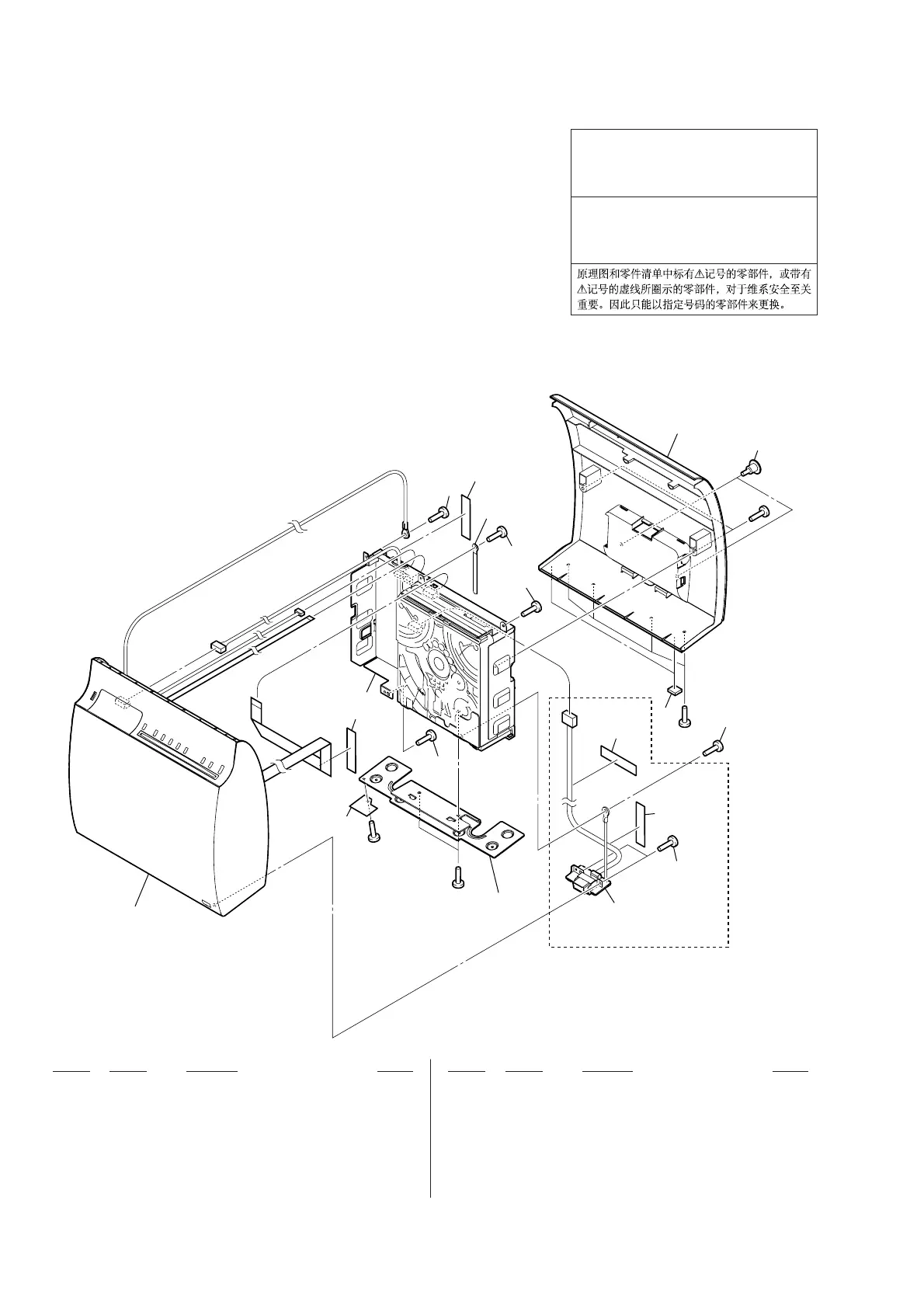

5-1. PANEL (BACK) SECTION
(CX5iP)
1
1
1
1
2
5
6
3
1
4
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#3
#2
#1
not supplied
panel (front) section
tuner section
not supplied
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
