HCD-CX4iP/CX5iP

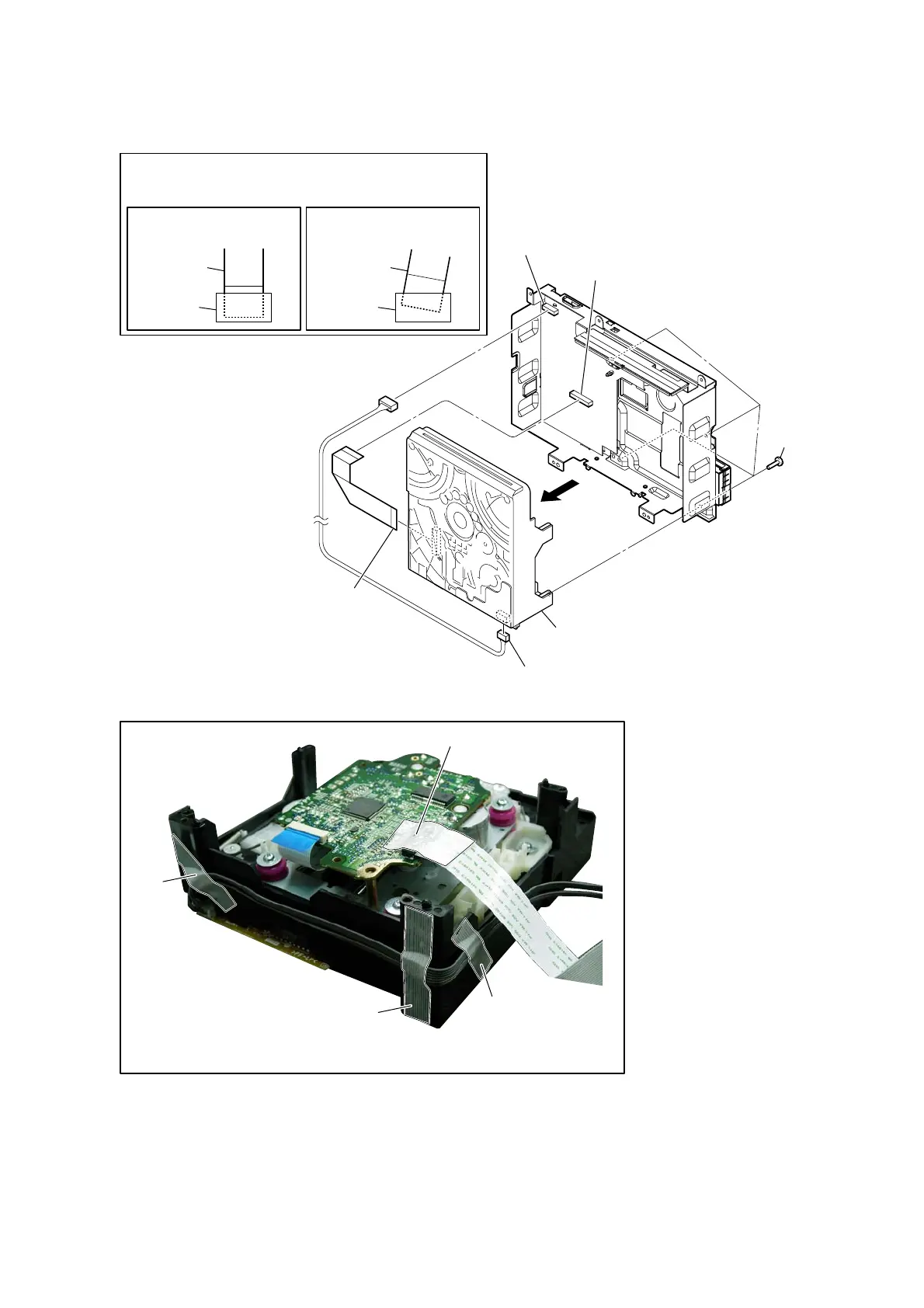

2-4. CD MECHANISM DECK (CDM80BTK-F4BD94D-V)

3 four screws

(BVTP3 u 8)

1 connector

(CN1210)

2 connector

(CN1100)

6 connector

7 CD mechanism deck

(CDM80BTK-F4BD94D-V)

Insert is straight to the interior. Insert is incline

flat cable

connectorconnector

flat cable

OK NG

Note:

When you install the flat cable, please install them correctly.

There is a possibility that this machine damages when not

correctly installing it.

5 flexible flat cable (21 core)

(CN301)

– Rear bottom view –

:LUHVHWWLQJ

tape
