HCD-CX4iP/CX5iP

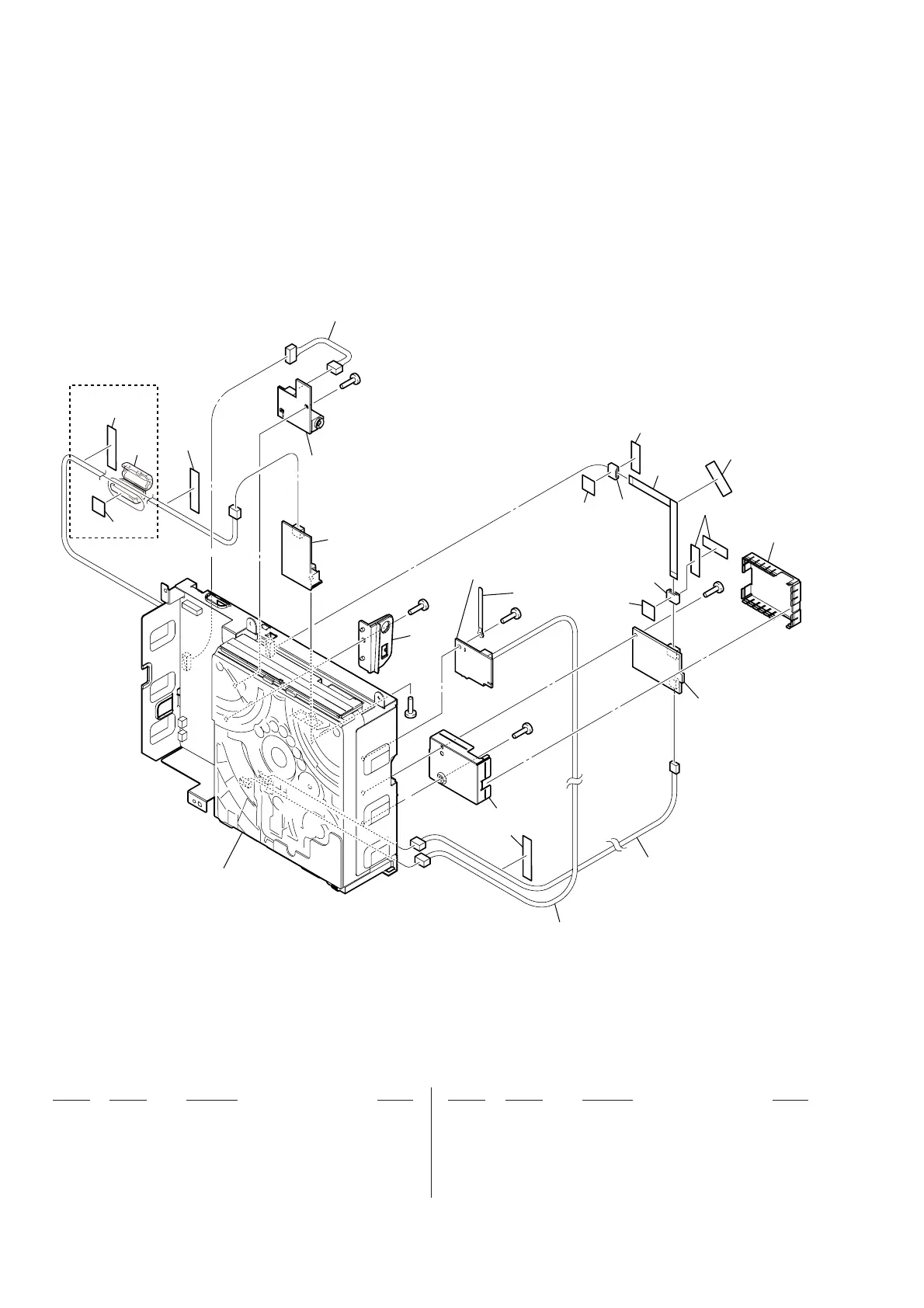

5-3. TUNER SECTION
101 4-274-576-01 COVER (DC) (BLACK)
(CND, AEP, RU, SP, KR, AUS, CH)
101 4-274-576-21 COVER (DC) (WHITE) (AEP, SP, TW, CH)
101 4-274-576-41 COVER (DC) (US)
102 1-469-829-11 CORE, FERRITE
103 1-839-262-21 CABLE, FLEXIBLE FLAT (7 CORE)
104 A-1816-190-A TUNER BOARD, COMPLETE
105 1-500-082-11 CLAMP, SLEEVE FERRITE (US, CND)
106 4-291-324-01 SHEET (EMC), ADHESIVE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
