HCD-CX4iP/CX5iP
6
HOW TO EJECT THE DISC WHEN POWER SWITCH TURNS OFF
Note:
Please take out the CD mechanism block from a set referring to “SECTION 2 DISASSEMBLY”.
SERVICE POSITION
disc
The CD mechanism deck is taken out, and please
rotate the pulley in the direction of the arrow after
detaching and take out the disc.

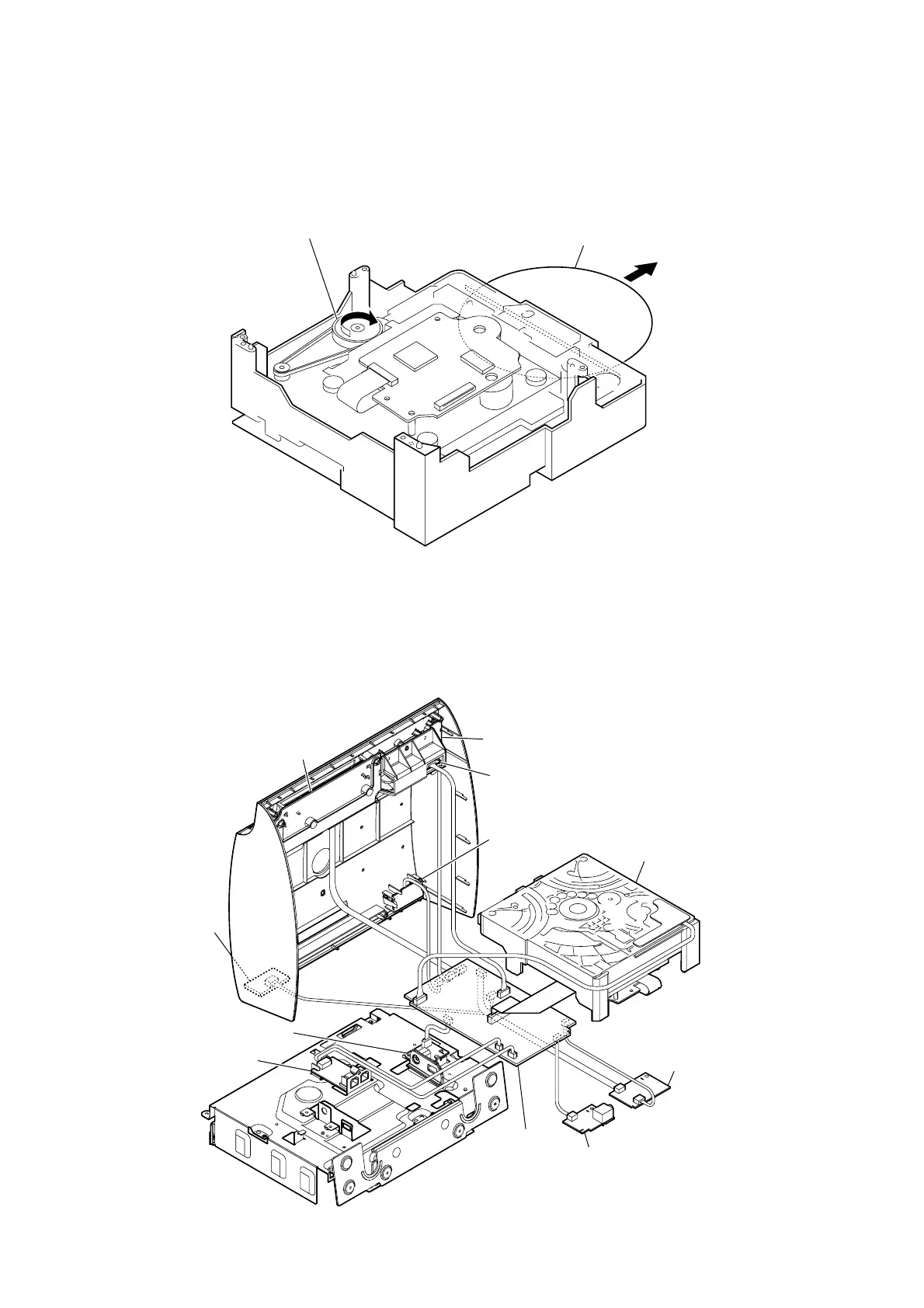

– CD mechanism deck block bottom view –
FL board
POWER-KEY board
USB-JACK board
(CX5iP)
MAIN board
DC-JACK board
AUDIO-JACK board
TUNER board
SP board
IP board
RMC board
CD mechanism deck
