HCD-CX4iP/CX5iP
5
CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for
the electric shock prevention.
Connect the resistors referring to the
fi
gure below.
• MAIN board (C310, C312, C735 or C736)
Both ends of respective capacitors.

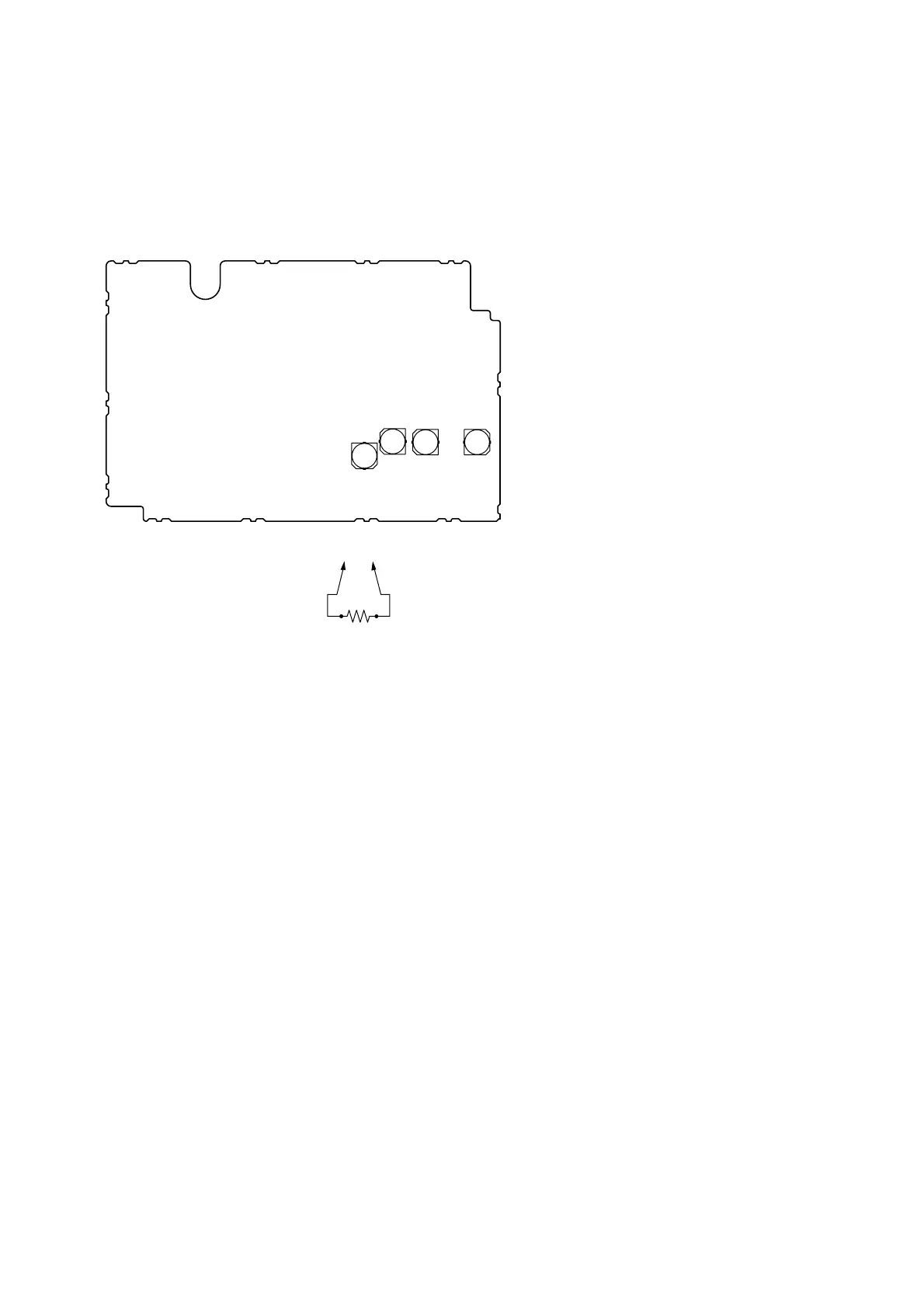

– MAIN Board (Side A) –
(To both ends of one capacitor in these capacitors)
C312
C310
C736 C735
800 :/2 W
To Next Page
