Sony HCD-CX5iP - Waveforms

HCD-CX4iP/CX5iP
29
2 IC101 il (RFO)
(CD play mode)
0.9 Vp-p
500 mV/DIV, 1 P s/DIV
1
IC101 wf (XO)
(CD play mode)
2 V/DIV, 50 ns/DIV
59.1 ns
4.6 Vp-p
qa
IC101 qa (Xcout)
1 V/DIV, 20 P s/DIV
30.8 Ps
1.8 Vp-p
qs
IC101 qd (Xout)
1 V/DIV, 100 ns/DIV
200 ns
3.2 Vp-p
qd
IC501 ra (XOUT_PLL)
1 V/DIV, 20 ns/DIV
59.5 ns
1.9 Vp-p
qg
IC601 ef (XO)
1 V/DIV, 20 ns/DIV
40.8 ns
2.6 Vp-p
ea
IC901 ql (X2)
81 ns
3.3 Vp-p
qf
IC601 e; (AMCLKO)
1 V/DIV, 20 ns/DIV
20.8 Ps
3.4 Vp-p
qh
IC601 ra (LRCKI1)
1 V/DIV, 10 P s/DIV
qj
IC601 rs (BCKI1)
1 V/DIV, 100 ns/DIV
326 ns
3.4 Vp-p
200 mV/DIV, 10 P s/DIV
30.4 P s
0.4 Vp-p

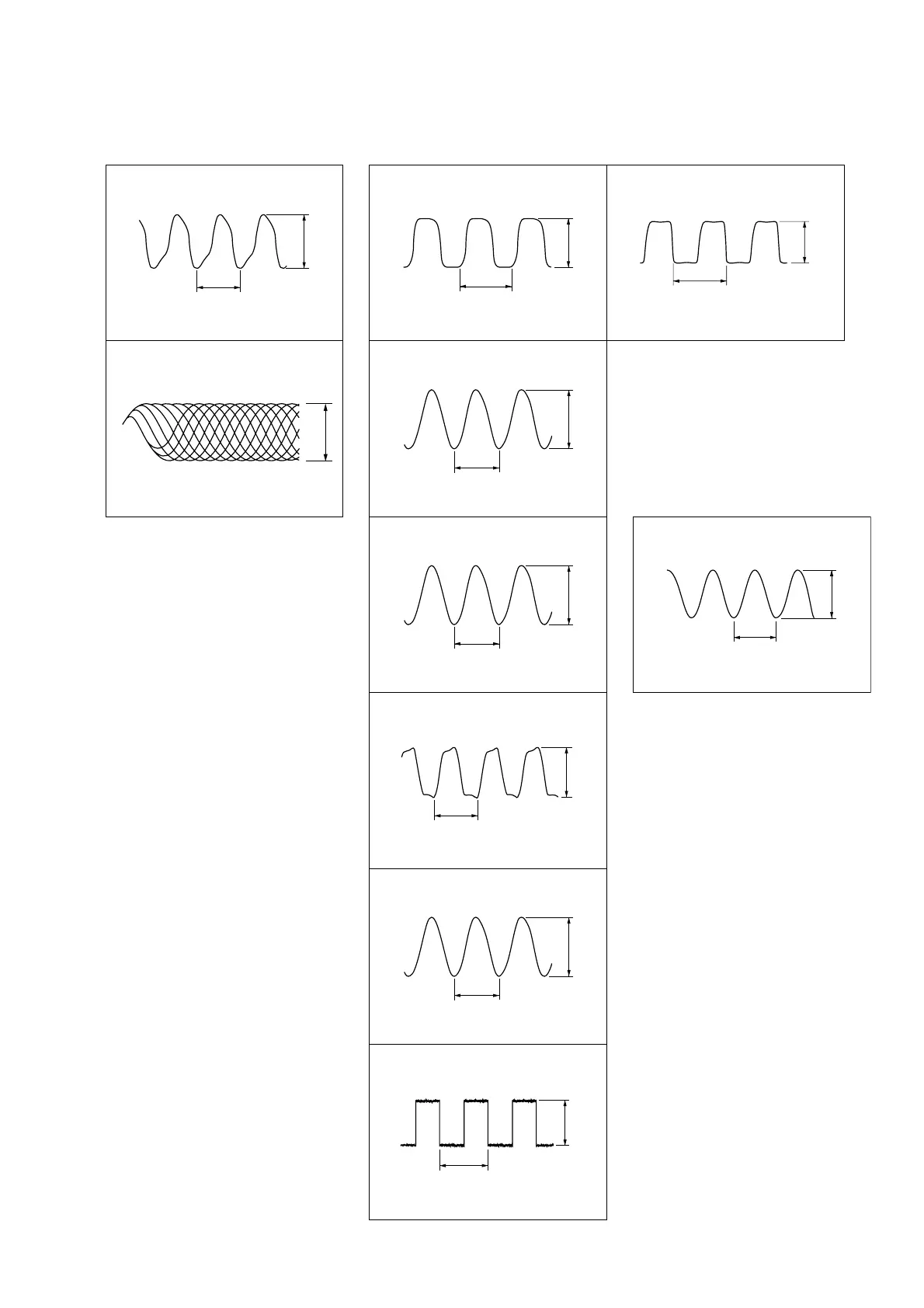

• Waveforms
– BD94D-V Board – – MAIN Board –
– TUNER Board –
