Sony HCD-DP800AV - Section 7 Exploded Views; Main Section

58
HCD-DP800AV
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 7
EXPLODED VIEWS
1
6
1
2
2
10
8
Front panel section
Chassis section
CD mechanism deck
M961
#1
#1
#1
#2
#1
#1
#2
#1
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
3
11
4
5
7
not supplie
d
9
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

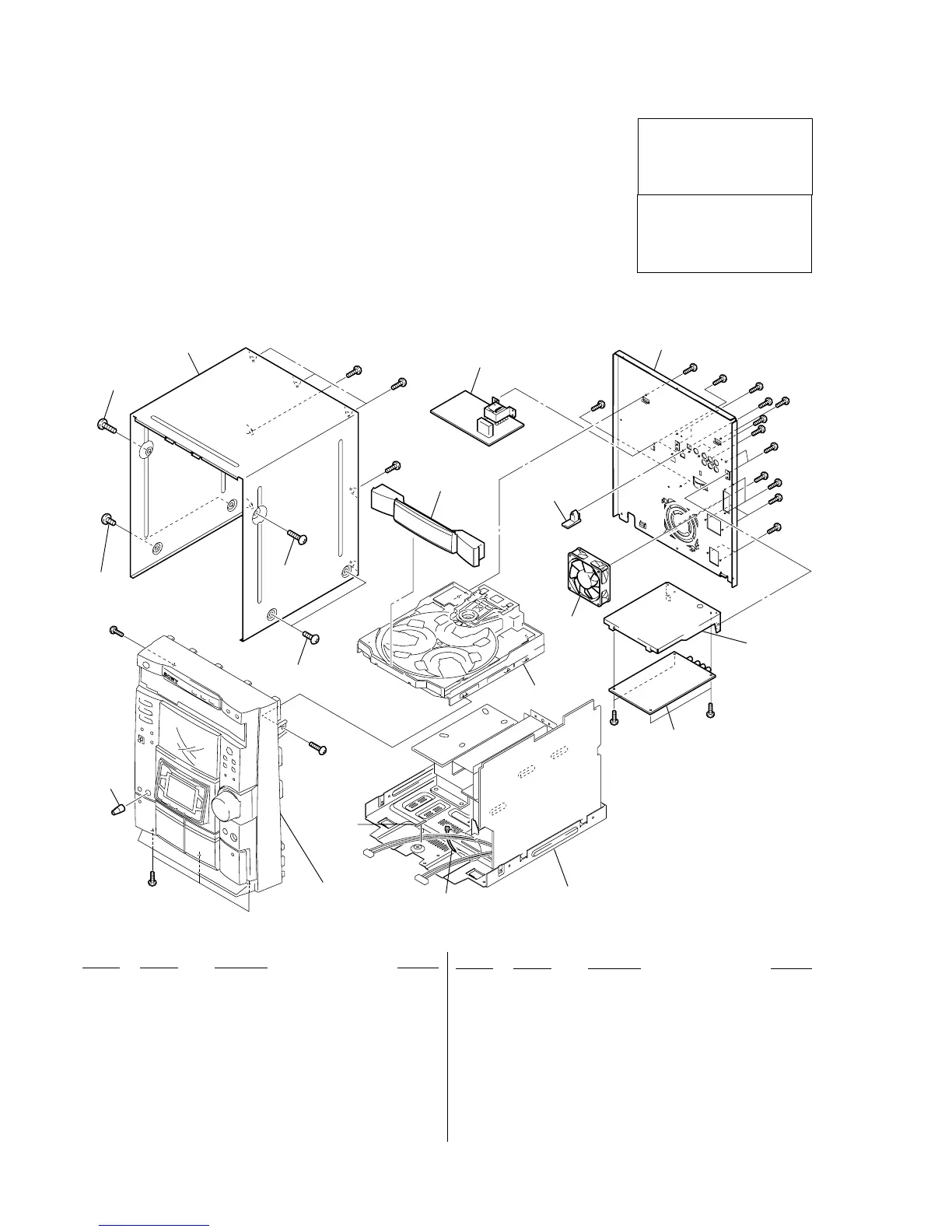

7-1. MAIN SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AUS : Australian model
AR : Argentine model
CND: Canadian model
KR : Korean model
MX : Mexican model
1 3-363-099-41 SCREW (CASE 3 TP2)
2 3-363-099-01 SCREW (CASE 3 TP2)
3 4-231-795-11 PANEL, LOADING
4 A-4475-600-A DSP BOARD, COMPLETE (CND)
4 A-4475-638-A DSP BOARD, COMPLETE (AEP)
4 A-4475-653-A DSP BOARD, COMPLETE (AUS,KR)
4 A-4475-982-A DSP BOARD, COMPLETE (AR,MX)
5 1-680-190-11 SUB TRANS BOARD
6 4-231-828-11 CASE
7 4-231-894-01 PANEL, BACK (AEP)
7 4-231-894-12 PANEL, BACK (CND)
7 4-231-894-22 PANEL, BACK (AUS)
7 4-231-894-32 PANEL, BACK (KR)
7 4-231-894-42 PANEL, BACK (MX)
7 4-231-894-52 PANEL, BACK (AR)
8 3-701-748-00 CLAMP
* 9 3-378-109-01 CUSHION, SARANET
10 4-231-805-01 KNOB (MIC) (AR, AUS, KR, MX)
11 1-680-851-11 OPT IN REAR BOARD (AR,AUS,KR,MX )
M961 1-763-072-11 FAN. DC
