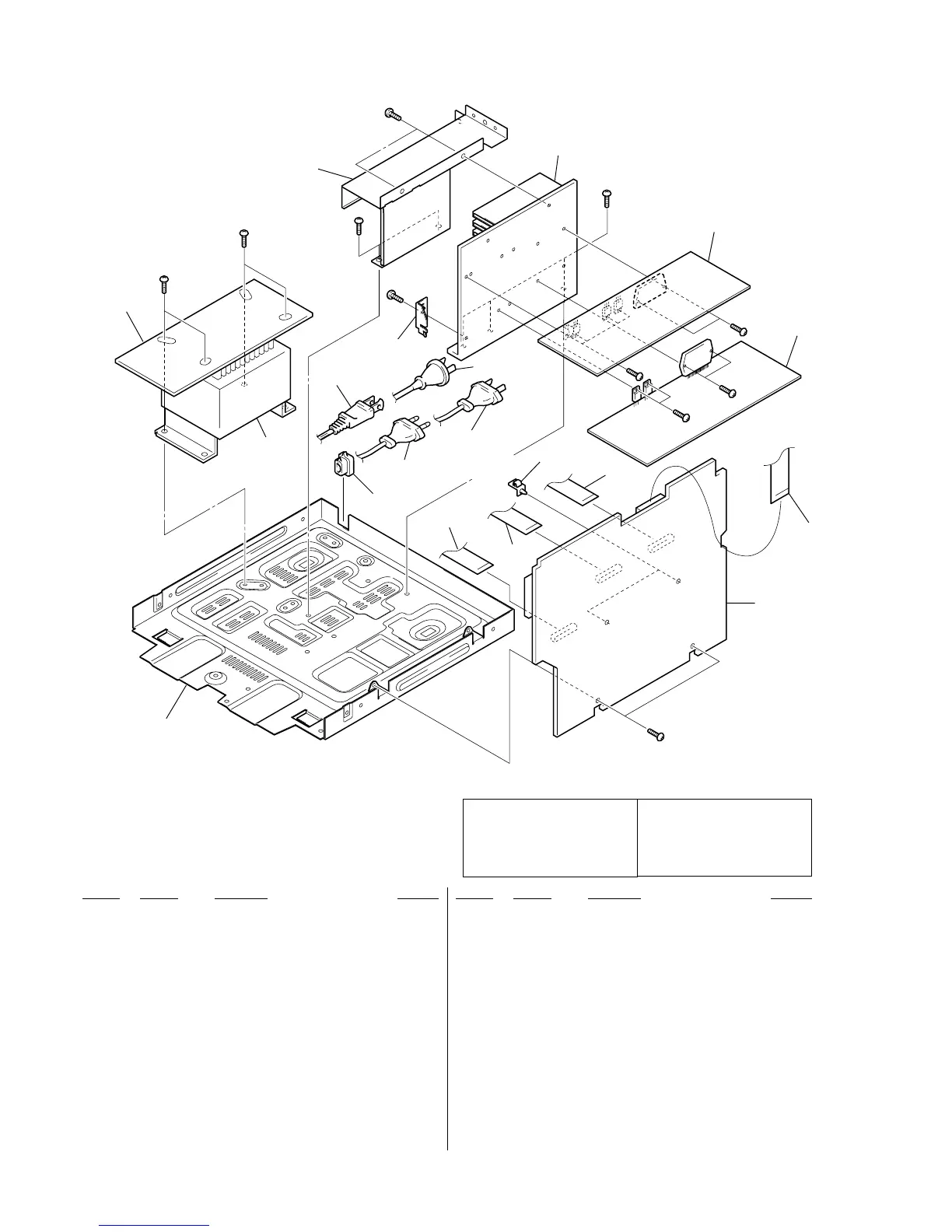

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
not supplied
not supplied
not supplied
T911
108
110
(AEP, KR, MX)
110 (CND)
110 (AUS)
110 (AR)
109
107
106
102
103
104
105
101
#1
#6
#6
#1
#6
#1
#6
#4
#4
#5
#5
101 A-4475-604-A MAIN BOARD, COMPLETE (CND)
101 A-4475-640-A MAIN BOARD, COMPLETE (AEP)
101 A-4475-655-A MAIN BOARD, COMPLETE (AUS)
101 A-4475-986-A MAIN BOARD, COMPLETE (AR, MX)
101 A-4476-098-A MAIN BOARD, COMPLETE (KR)
102 1-773-042-11 WIRE (FLAT TYPE) (17 CORE)
103 1-757-418-11 WIRE (FLAT TYPE) (21 CORE)
104 1-757-420-11 WIRE (FLAT TYPE) (23 CORE)
105 1-757-419-11 WIRE (FLAT TYPE) (21 CORE)
106 A-4475-607-A FRONT AMP BOARD, COMPLETE (CND)
106 A-4475-643-A FRONT AMP BOARD, COMPLETE (AEP)
106 A-4475-658-A FRONT AMP BOARD, COMPLETE (AUS, KR)
106 A-4476-409-A FRONT AMP BOARD, COMPLETE (AR, MX)
107 1-680-188-11 SURROUND AMP BOARD
108 1-680-189-11 TRANS BOARD
109 3-703-571-11 BUSHING (S) (4516), CORD (MX)
* 109 3-703-244-00 BUSHING (2104), CORD
(AR, AEP, AUS, CND, KR)
0 110 1-769-079-21 CORD, POWER (KR)
0 110 1-777-071-81 CORD, POWER (AEP)
0 110 1-783-531-31 CORD, POWER (CND)
0 110 1-783-203-11 CORD, POWER (AUS)
0 110 1-783-941-11 CORD, POWER (AR)
0 110 1-791-901-11 CORD, POWER (MX)
0 T911 1-435-815-11 TRANSFORMER, POWER (CND)
0 T911 1-435-816-11 TRANSFORMER, POWER (AEP)
0 T911 1-435-817-11 TRANSFORMER, POWER (AR, AUS, KR, MX)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
