Sony HCD-DP800AV - Loading Panel; Front Panel Section, CD Mechanism Deck

7
HCD-DP800AV

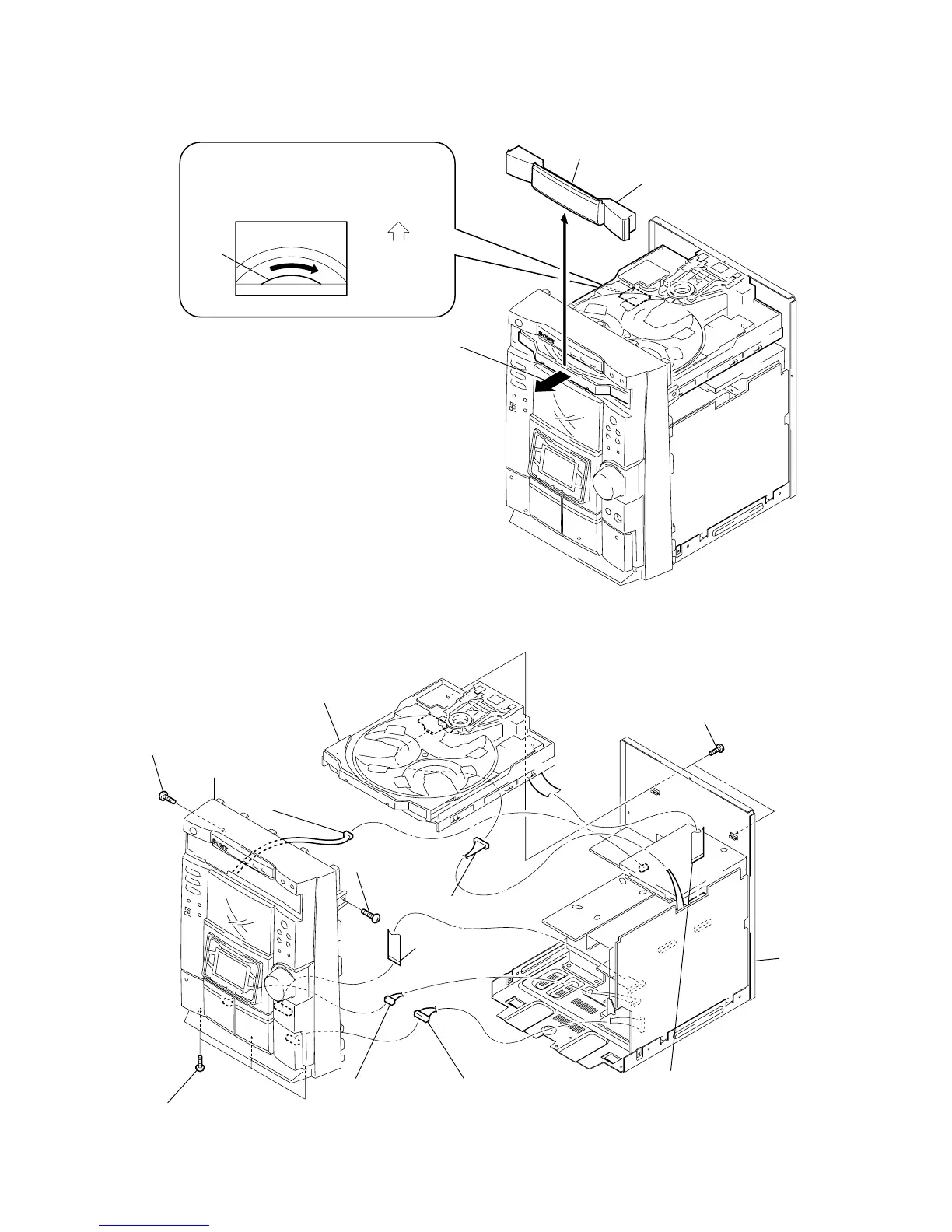

2-2. LOADING PANEL
2-3. FRONT PANEL SECTION, CD MECHANISM DECK (CDM58)
2 pull-out the disc tray.
4 pull-out the disc tray.
loading panel
1 turn the pulley to the direction of arrow.
pulley
front panel side
CD mechanism deck (CDM58)
3
0 two screws (+BVTP 3 × 10 )
3 screw (+BVTP 3 × 10)
2 screw
(+BVTP 3
× 10)
1 connector (CN601)
qs connector (CN701)
8 connector (CN2)
7 connector (CN1)
6 flat type wire (CN1001)
9 flat type wire (CN201)
chassis section
4 three screws (+BVTT 3 × 8)
5 front panel section
qa CD mechanism deck (CDM58)
