HCD-DZ280/DZ680/HDZ284/HDZ485
14
82
US

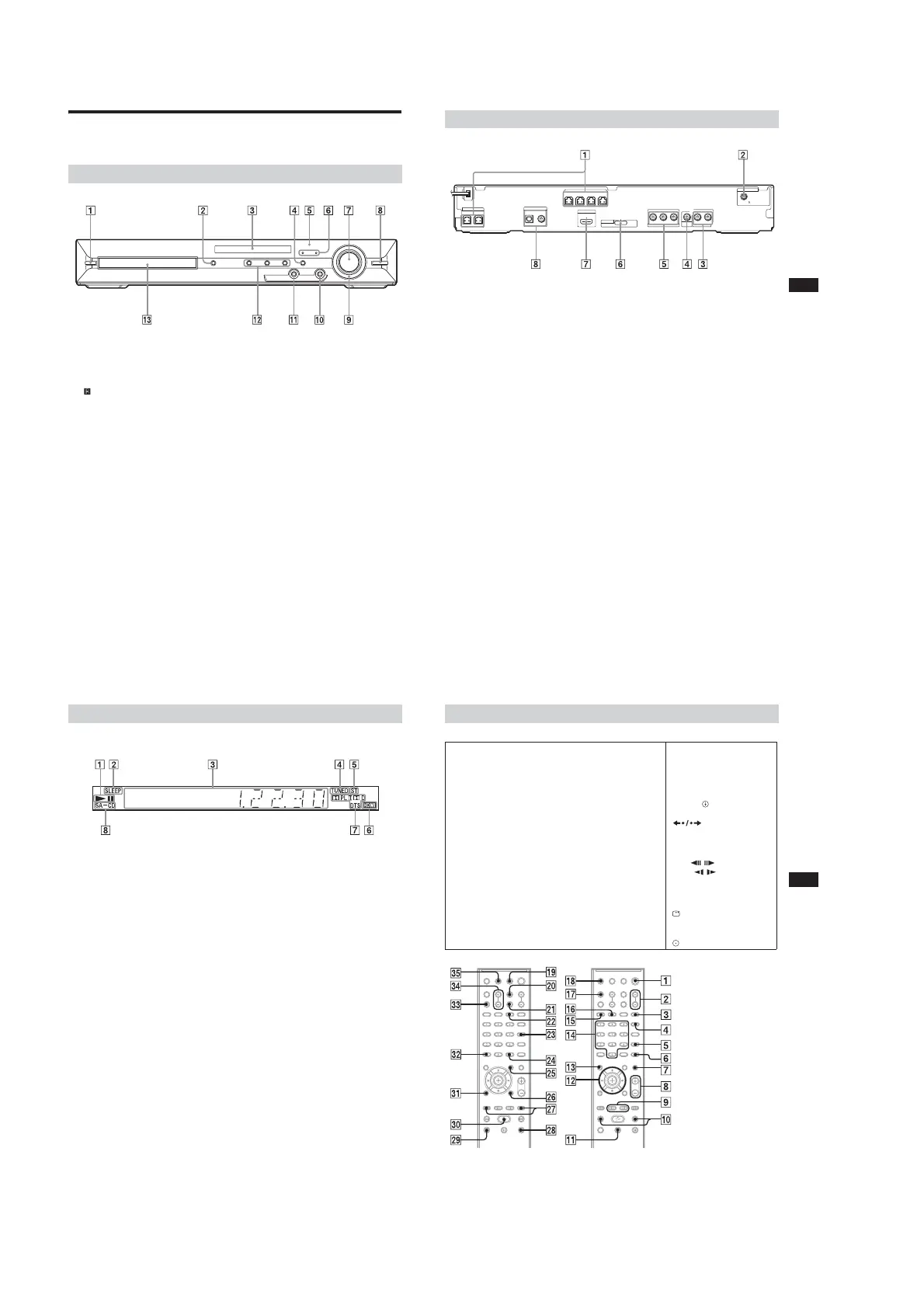

Index to Parts and Control (HDZ284)
For more information, refer to the pages indicated in parentheses.
" / (on/standby) (21, 66)
# ; (open/close) (28)
$ Front panel display (84)
% FUNCTION (24)
& (remote sensor) (9)
' MOVIE/MUSIC indicator (62)
( VOLUME control (28)
) DMPORT BOOSTER (61)
* OPERATION DIAL (28)
+ PHONES jack (28)
, AUDIO IN/A.CAL MIC jack (17, 21, 59)
- Play operation buttons (28)
. Disc tray (28)
Front panel
Additional Information
83
US
" SPEAKER jacks (14)
# COAXIAL 75Ω FM jack (19)
$ TV/VIDEO (AUDIO IN R/L) jacks (16)
% VIDEO OUT jack (15)
& COMPONENT VIDEO OUT jacks (15)
' DMPORT (DIGITAL MEDIA PORT) jack
(17, 56)
( HDMI OUT jack (15)
) TV/VIDEO (DIGITAL IN COAXIAL/
OPTICAL) jacks (16)
Rear panel
CENTER
SUBWOOFER
FRONT R FRONT L SURR SUR L
SPEAKER
HDMI OUT
SPEAKER
COAXIAL 75
FM
ANTENNA
DMPORT
DC5V
0.7A MAX
DIGITAL IN
AUDIO IN
P
B /C B P R /C R Y
LR
COAXIALOPTICAL
TV/VIDEO
VIDEO
OUT
TV/VIDEOCOMPONENT VIDEO OUT
84
US
About the indications in the front panel display
" Playing status
# Flashes when the sleep timer is set.
(63)
$ Displays the system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, decoding mode, etc.
% Lights up when a station is received.
(Radio only) (51)
& Stereo/Monaural effect (Radio only)
(52)
' Lights up when the HDMI OUT jack is
correctly connected to HDCP (High-
bandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input. (15)
( Current surround format (Except for
JPEG image file)
) Lights up when a Super Audio CD/CD
is loaded. (31)
Front panel display
Additional Information
85
US
Remote control
SNOITPIRCSEDNOTTUBREDROLACITEBAHPLA
Z–PO–A
ANGLE  (29)
AUDIO RI (30)
CLEAR FT (33, 52)
D.TUNING XT (52)
DISC SKIP
1)
FE
DISPLAY XB (53, 64)
DVD MENU XH (35)
DVD TOP MENU RE (35)
DYNAMIC BASS  (61)
ENTER XG (60)
FUNCTION +/–  (24, 28)
MENU XH (60)
MUTING  (28)
NIGHT XE (61)
ONE-TOUCH PLAY FH (55)
PICTURE NAVI RH (38)
PRESET +/– XK (52)
S-AIR MODE
1)

SLEEP RK (63)
SOUND MODE  (62)
SUBTITLE XT (29)
SYSTEM MENU XG (20, 25, 51,
63)
THEATER RL (54)
TOOLS XI (60)
TUNING +/–  (51)
TV XM (60)
TV CH +/– XK (60)
TV INPUT X (60)
TV VOL +/– FG (60)
VOLUME +/–  (28)
Number buttons RG (31, 51, 60)
</ (on/standby)  (20, 21, 28)
TV </ (on/standby) RM (60)
$/9/Y/D/ RT (20, 21, 31, 33,
51, 58)
REPLAY/ADVANCE
 (28)
/ XK (28)
N/.  (28)
STEP /  (28)
SLOW /  (28)
)(play) F (28)
Y (stop) XL (28)
9 (pause) RB (28)
DISPLAY
2)
XI (21, 31, 33, 44,
58, 86)
0RETURN FB (31, 60)
FT (60)
1)
This button is not available
for this model.
2)
This button is available for
the “DVD” or “DMPORT”
function. Depending on the
DIGITAL MEDIA PORT
adapter, this button may not
work.
