Sony HCD-DZ280 - Chassis Section

79
HCD-DZ280/DZ680/HDZ284/HDZ485
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

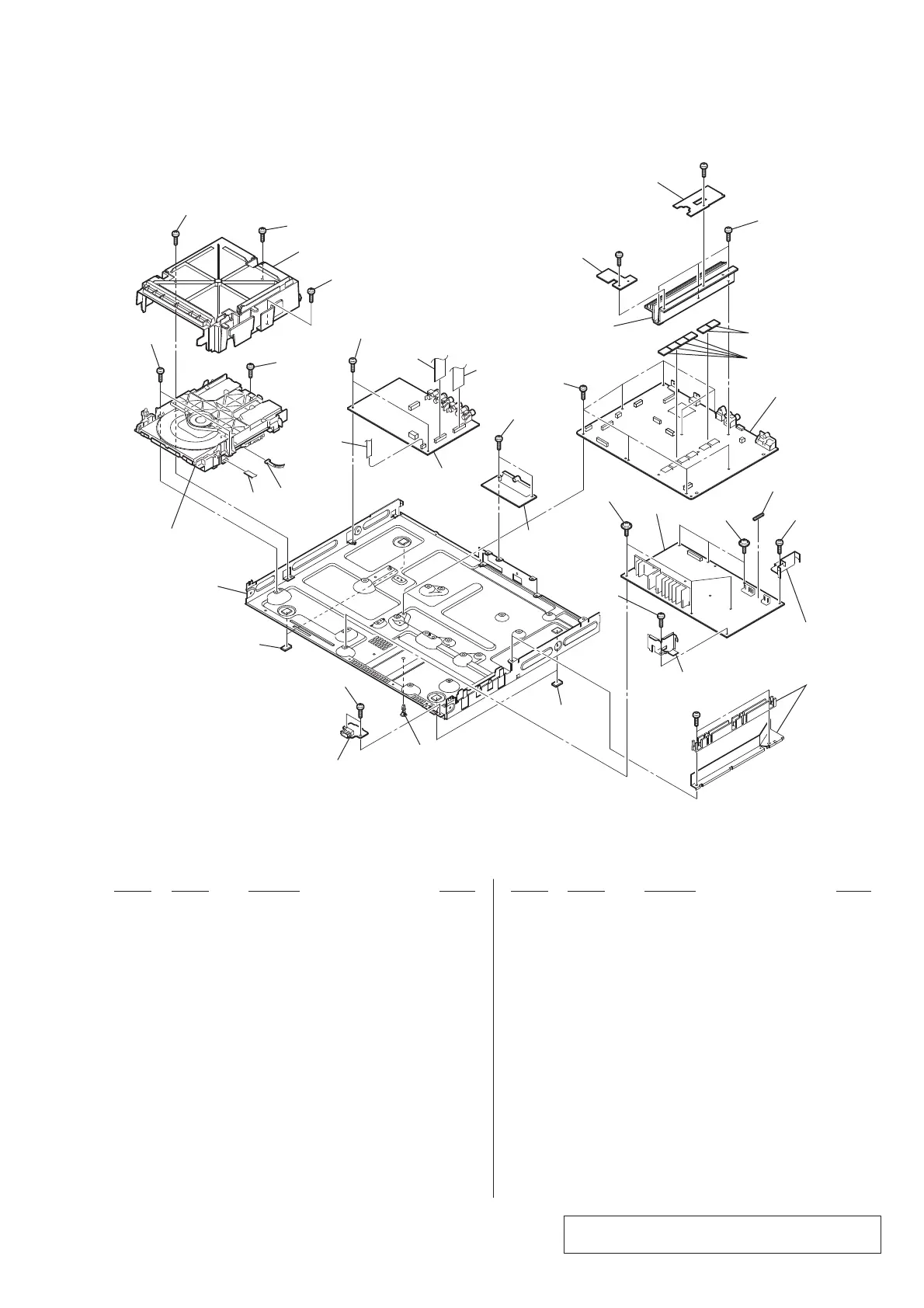

7-3. CHASSIS SECTION
101 A-1568-846-A POWER BOARD, COMPLETE (DZ680)
101 A-1568-850-A POWER BOARD, COMPLETE (HDZ485:CND)
101 A-1568-854-A POWER BOARD, COMPLETE (HDZ485:PX)
101 A-1650-274-A POWER BOARD, COMPLETE (DZ280)
101 A-1650-278-A POWER BOARD, COMPLETE (HDZ284)
102 2-677-839-01 +PWH 3X8 (SUMITITE)
103 3-077-331-01 +BV3 (3-CR)
104 4-232-478-51 FOOT
105 3-077-331-21 +BV3 (3-CR)
9 106 A-1579-689-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ280:AEP)
9 106 A-1579-697-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ280:UK)
9 106 A-1579-736-A MAIN BOARD, COMPLETE (for SERVICE)
(HDZ284)
9 106 A-1579-796-A MAIN BOARD, COMPLETE (for SERVICE) (DZ680)
9 106 A-1602-817-A MAIN BOARD, COMPLETE (for SERVICE)
(HDZ485)
107 1-828-293-11 WIRE (FLAT TYPE) (5 CORE)
108 A-1579-734-A IO COMPONENT BOARD, COMPLETE (HDZ284)
108 A-1602-595-A IO COMPONENT BOARD, COMPLETE (HDZ485)
108 A-1579-687-A IO SCART BOARD, COMPLETE (DZ280)
108 A-1579-794-A IO SCART BOARD, COMPLETE (DZ680)
109 1-828-286-11 WIRE (FLAT TYPE) (5 CORE)
110 1-828-349-11 WIRE (FLAT TYPE) (17 CORE) (HDZ284/HDZ485)
110 1-828-359-11 WIRE (FLAT TYPE) (19 CORE) (DZ280/DZ680)
111 1-828-347-11 WIRE (FLAT TYPE) (17 CORE) (HDZ284/HDZ485)
111 1-828-357-11 WIRE (FLAT TYPE) (19 CORE) (DZ280/DZ680)
112 3-077-331-11 +BV3 (3-CR) (DZ680/HDZ485)
113 4-125-473-11 SHEEET, RADIATION
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (8A/250V)
(CND)
0 F901 1-576-232-51 FUSE (H.B.C.) (5A/250V) (AEP,UK)
0 F901 1-576-233-51 FUSE (H.B.C.) (6.3A/250V) (PX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
101
102
102 103
103
104
105
106
107
105
105
105
112
113
113
105
108
109
110
111
105
105
105
105
104
not supplied
(HEAT SINK A board)
not supplied
(HEAT SINK B board)
#1
#1
#1
not supplied
(SPEAKER board)
not supplied
(USB board)
(DZ280/DZ680)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
CDM85-DVBU102
not supplied
F901
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
Ver. 1.1
