Sony HCD-DZ280 - MAIN Board, SPEAKER Board; IO-SCART Board (DZ280;DZ680), IO-COMPONENT Board (HDZ284;HDZ485)

HCD-DZ280/DZ680/HDZ284/HDZ485
20

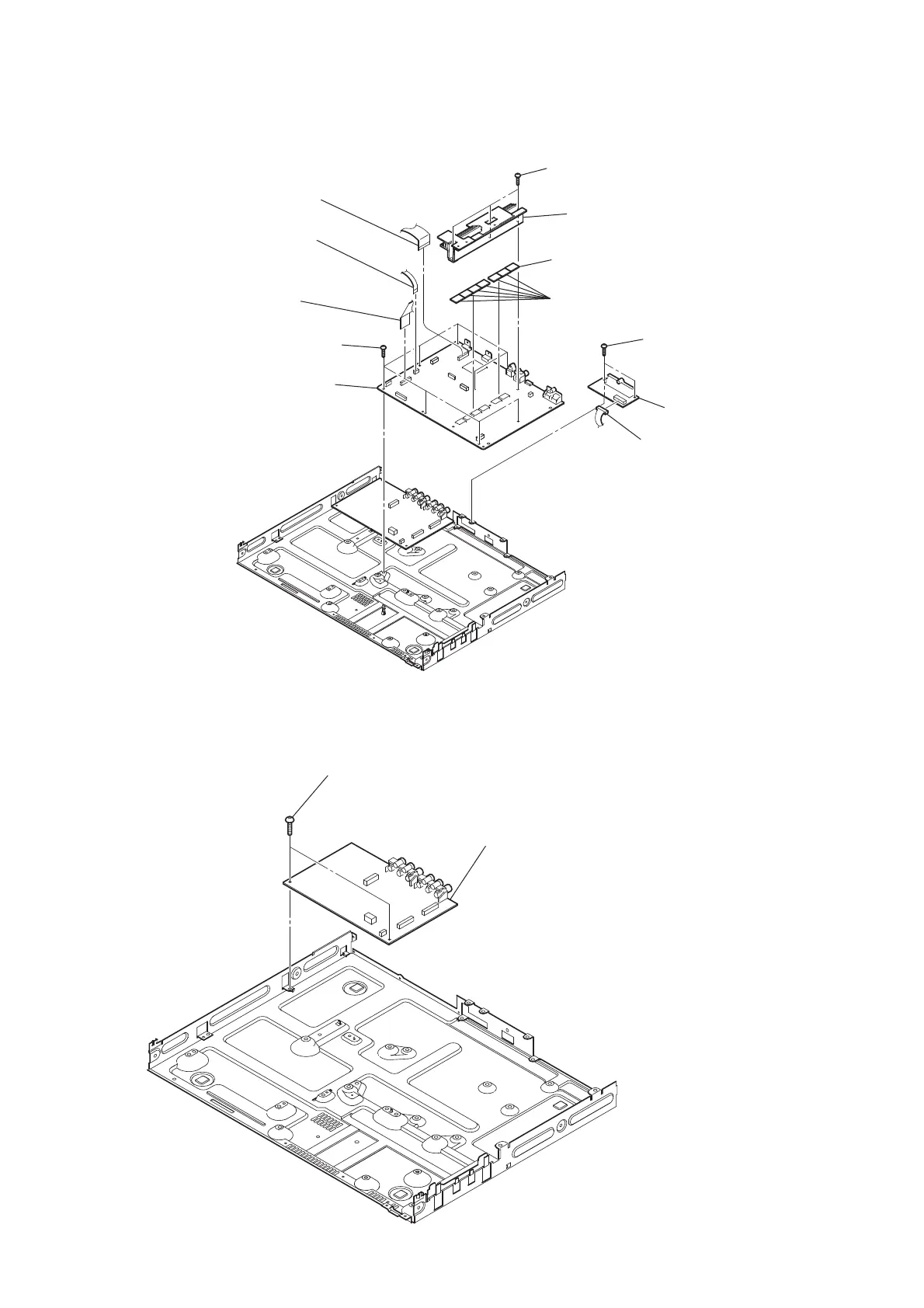

3-8. IO-SCART BOARD (DZ280/DZ680), IO-COMPONENT BOARD (HDZ284/HDZ485)
3-7. MAIN BOARD, SPEAKER BOARD
 CN5301 (8P)
 two screws
(+BV3 (3-CR))
 three screws
(+BV3 (3-CR))
RB eight screws
(+BV3 (3-CR))
RT MAIN board
 heat sink section
 six radiation sheets
 radiation (HDZ485)
 SPEAKER board
 wire (flat type) (17 core) (CN503)
(HDZ284/HDZ485)
wire (flat type) (19 core) (CN504)
(DZ280/DZ680)
 wire (flat type) (17 core) (CN472)
(HDZ284/HDZ485)
wire (flat type) (19 core) (CN473)
(DZ280/DZ680)
 wire (flat type) (5 core)
(CN303)
 two screws
(+BV3 (3-CR))
 IO-SCART board (DZ280/DZ680)
IO-COMPONENT board (HDZ284/HDZ485)
