Sony HCD-DZ280 - 7 Exploded Views; Overall Section

77
HCD-DZ280/DZ680/HDZ284/HDZ485
2
4
5
6
7
7
7
7
8
9
10
11
3
2
1
#2
#1
#1
#1
#1
#1
#3
A
TU4001
FAN3001
front panel section
not supplied
(HDZ485)
not supplied
not supplied
(DZ680/HDZ485)
not supplied
(DZ680/HDZ485)
not supplied
(S-AIR CON board)
(DZ680/HDZ485)
A
chassis section
DZ680
HDZ284
DZ280
#1
12
13
SECTION 7
EXPLODED VIEWS
1 4-113-465-01 CASE (DSY)
2 3-363-099-22 SCREW (CASE 3 TP2)
3 3-704-515-32 SCREW (BV/RING)
4 1-827-720-11 WIRE (FLAT TYPE) (11 CORE) (DZ280/DZ680)
4 1-828-955-11 WIRE (FLAT TYPE) (9 CORE) (HDZ284/HDZ485)
5 3-703-244-00 BUSHING (2104), CORD
0 6 1-834-966-21 CORD, POWER (PX)
0 6 1-834-966-41 POWER-SUPPLY CORD (AEP,UK)
0 6 1-834-978-11 CORD, POWER (CND)
7 3-077-331-11 +BV3 (3-CR)
8 3-077-331-21 +BV3 (3-CR)
9 4-113-420-01 PANEL, LOADING (DSY)
10 2-668-626-01 LABEL
11 1-828-330-11 WIRE (FLAT TYPE) (13 CORE) (DZ680/HDZ485)
0 12 1-569-008-33 ADAPTOR, CONVERSION 2P (PX)
0 13 1-770-019-71 ADAPTOR, CONVERSION PLUG 3P (UK)
FAN3001 1-787-396-11 D.C. FAN (50 SQUARE)
TU4001 1-693-768-11 TUNER (FM) (ANTENNA) (DZ280/DZ680)
TU4001 1-693-781-11 TUNER (FM) (ANTENNA) (HDZ284/HDZ485)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-682-547-04 SCREW +B 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.

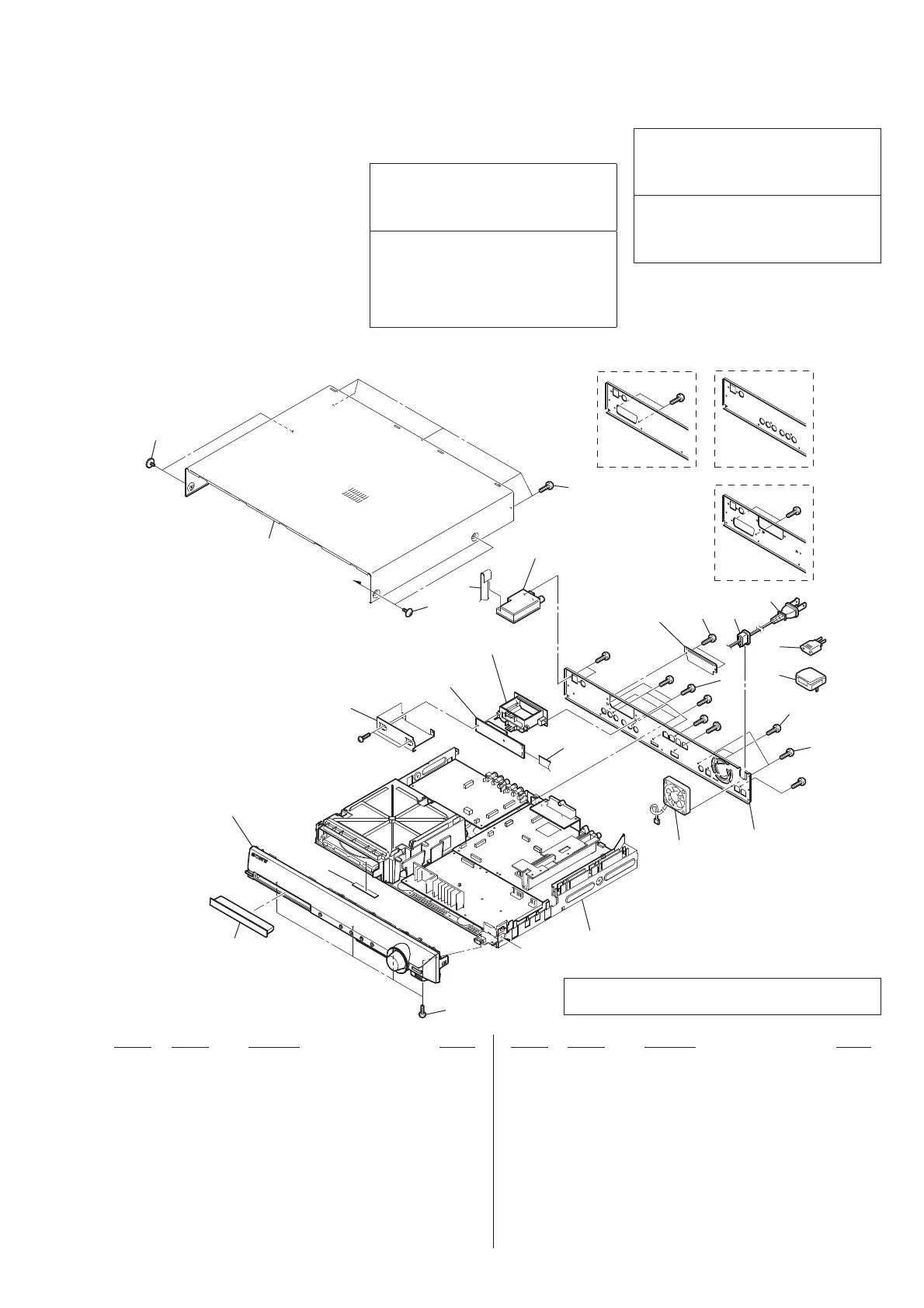

7-1. OVERALL SECTION
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
• Abbreviation
CND : Canadian model
Ver. 1.1
