Sony HCD-DZ280 - Back Panel Section (DZ680;HDZ485); Back Panel Section (DZ280;HDZ284)

HCD-DZ280/DZ680/HDZ284/HDZ485
18

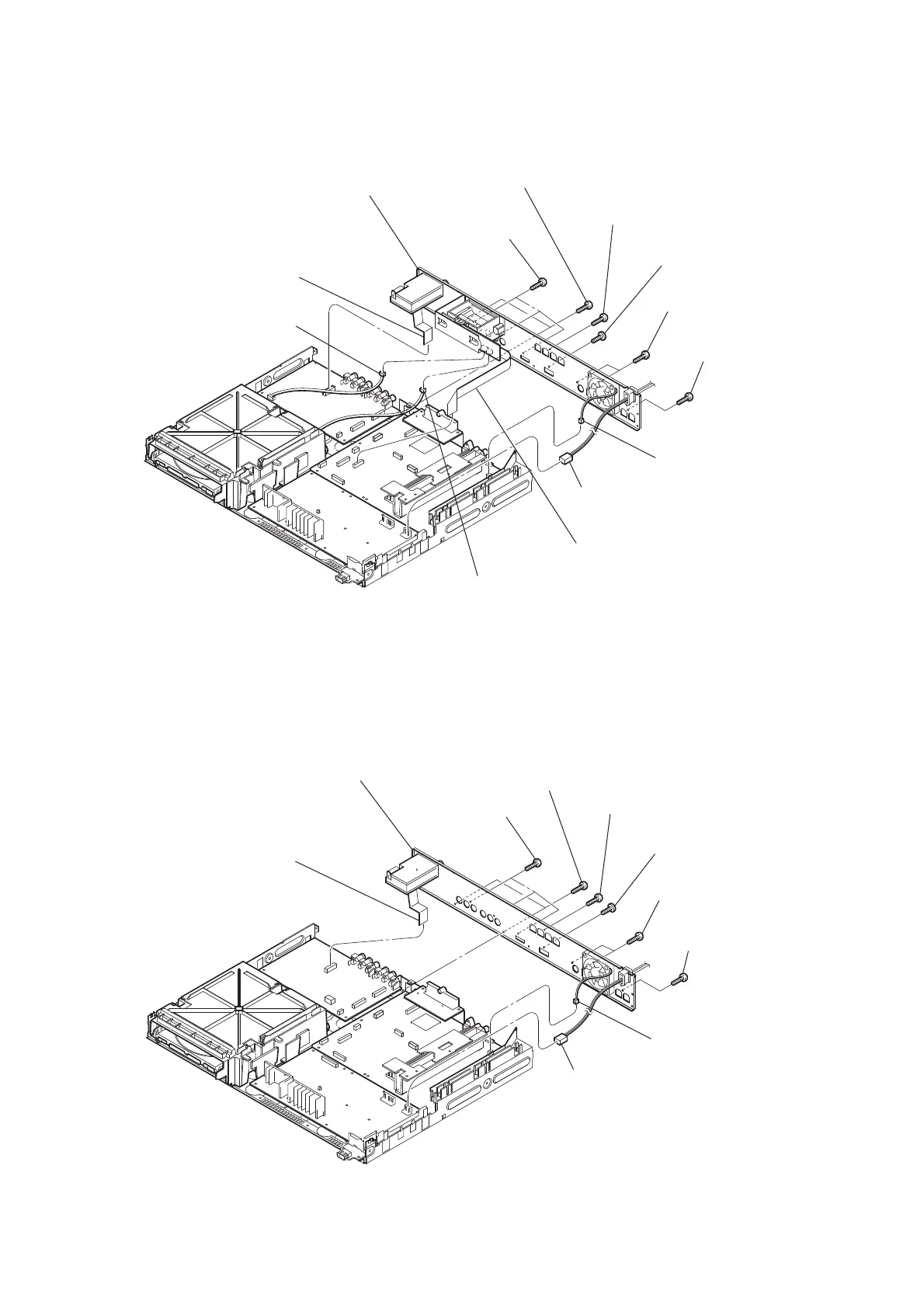

3-3. BACK PANEL SECTION (DZ680/HDZ485)
3-4. BACK PANEL SECTION (DZ280/HDZ284)
 CN3000 (2P)
 CN101 (4P)
 CN102 (2P)
 wire (flat type) (11 core) (CN4017)
(DZ680)
wire (flat type) (9 core) (CN4016)
(HDZ485)
 wire (flat type) (13 core)
(CN306)
 three screws
(+BVTP 3 × 8)
 two screws
(+BVTP 3 × 8)
RE back panel section
RB two screws
(+BVTP 3 × 8)
 screw
(+BVTP 3 × 8)
RT screw
(+BVTP 3 × 8)
 screw
(+B 3 × 6)
 CN9010 (2P)
 CN3000 (2P)
 wire (flat type) (11 core) (CN4017)
(DZ280)
wire (flat type) (9 core) (CN4016)
(HDZ284)
 two screws
(+BVTP 3 × 8)
 back panel section
 two screws
(+BV3 (3-CR))
 screw
(+BVTP 3 × 8)
 screw
(+BVTP 3 × 8)
 screw
(+B 3 × 6)
 CN9010 (2P)
 three screws
(+BVTP 3 × 8)
