Sony HCD-DZ770W - Printed Wiring Board - MAIN Board (Side A)

3434
HCD-DZ770W
HCD-DZ770W

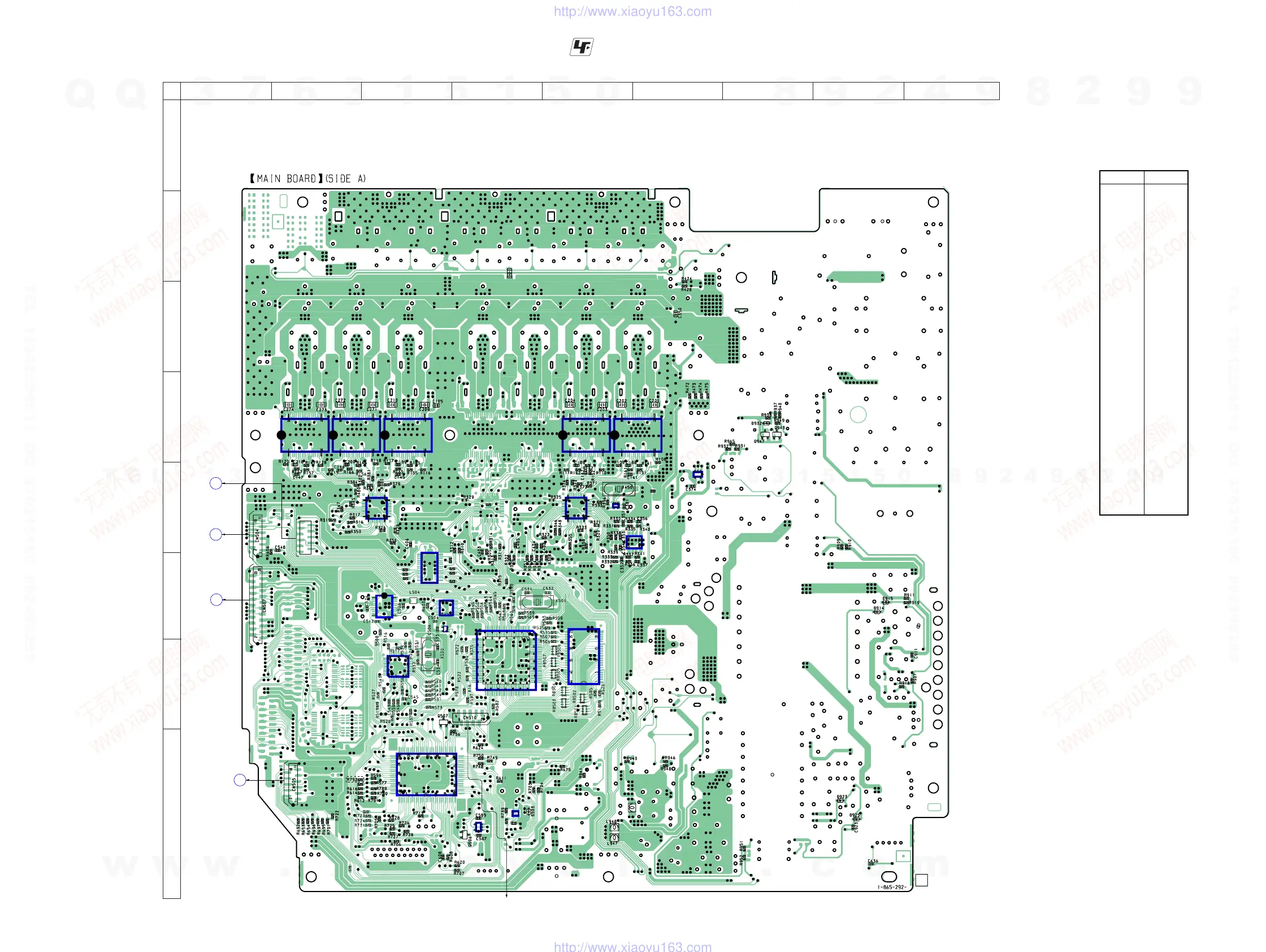

6-13. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) –
• See page 21 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D503 H-4
D914 F-8
D915 F-8
D923 H-8
D925 H-8
D932 D-7
IC101 D-6
IC102 D-5
IC105 D-3
IC106 D-2
IC107 D-2
IC108 E-5
IC110 E-3
IC301 E-6
IC303 D-6
IC305 E-5
IC501 F-3
IC502 H-4
IC505 G-3
IC506 G-4
IC507 F-5
IC509 H-3
IC511 H-4
IC513 E-3
IC514 F-3
IC517 F-4
Q506 H-4
Q507 G-3
Q943 D-7
Q947 D-7
DMB10
BOARD
CN4501
(Page 28)
A
TX
BOARD
CN801
(Page 53)
V
I/O BOARD
CN601
(Page 49)
F
DMB10
BOARD
CN106
(Page 28)
for PROGRAM WRITER
D
E
E
1
3
4
120
15
14
128
10 11
5
1
3
4
5
E
E
IC106 IC105
IC110
IC505
IC514
IC501
IC513
IC517
IC506
IC507
IC509
IC511
IC502
IC107 IC102
IC108
IC305
IC301
IC303
IC101
22
4
5
3
1
C119
EXCEPT SP
C110
R138
L946
C516
R740
R642
R643
R644
R648
R647
R646
R645
R793
R639
R656
CN512
11
1
10
2
12
A
B
C
D
E
G
H
F
34567 9
8
:Uses unleaded solder.
